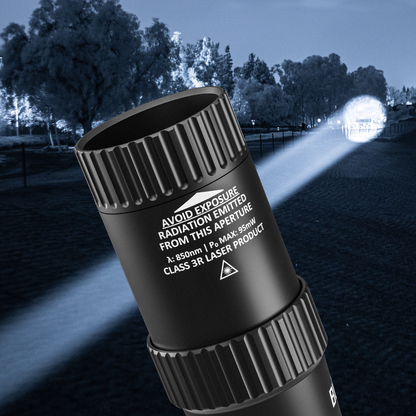

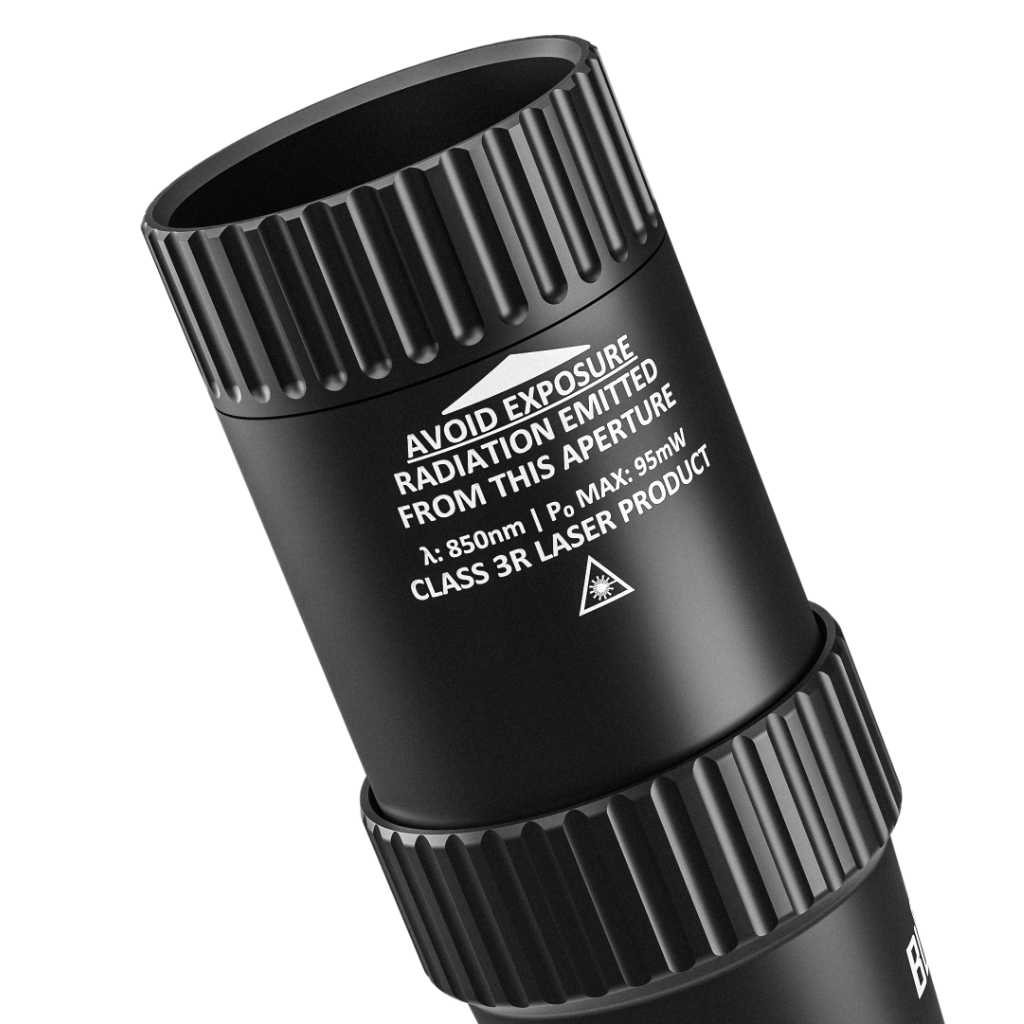

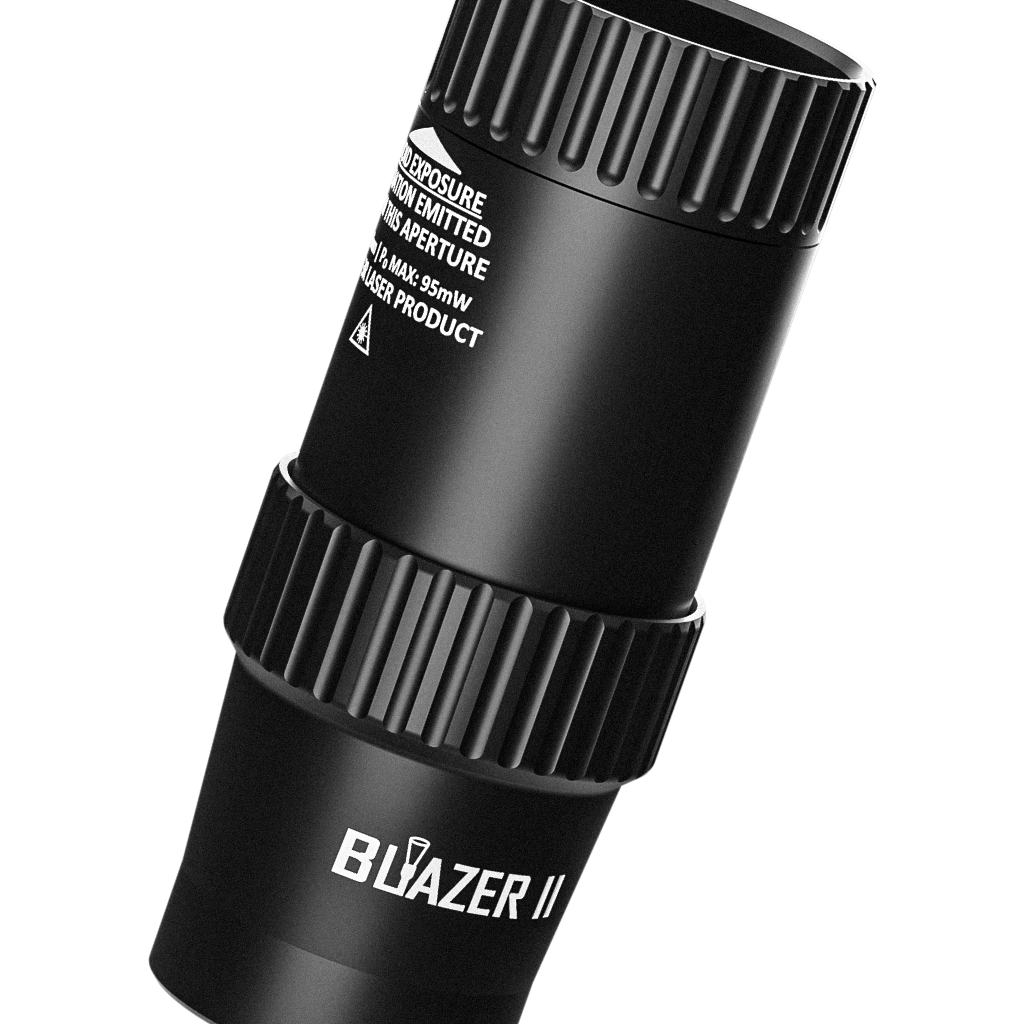

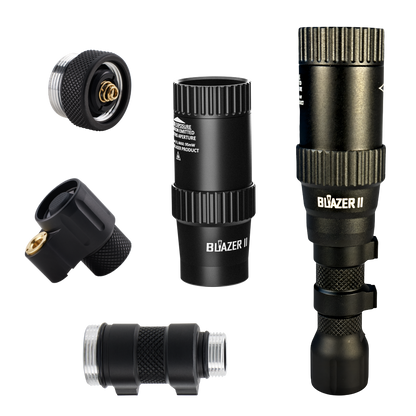

BLAZER II - IR VCSEL 3R with Auto Power Scaling (IP68)
$325.00
IR-VCSEL-3R-BLK-II
Made in USA 🇺🇸 - Civilian Legal VCSEL Illuminator - Adjustable Focus Optics 4° to 25° - Class 3R - VCSEL (IP68, 15~95mW) - Auto Power Scaling* (See Product Details) See ITAR Statement* in Product Details* Below
The new BLAZER II VCSEL 3R illuminator features a telescopic dual lens optics assembly; variable zoom 4° to 25° functionality; is constructed of aircraft grade aluminum; has a fully potted LED chip to withstand shock & recoil; a brass threaded insert for "buttery" smooth interface with third party light bodies; and MIL-STD-810 & IP68 environmental performance. Heads are Scout compatible. The BLAZER II fits Modlite, Arisaka, & Z-BOLT® 18350 & 18650 light bodies. Surefire M300/M600 & Arisaka 300/600 light bodies with Z-BOLT® Scout adapters. Runs on multiple battery cell types. 18350 rifle mounted kit includes 1 pc 18350 light body; 1 pc clicky style tailcap; 2 pc 18350 batteries & 1 pc 2x slot charger. LED-VCSEL-ILLUMINATORS-2025.pdf
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Information
Share contact information, store details, and brand content with your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product Details
Civilian LEGAL
Class 3R - VCSEL (<95mW)
BLAZER II Infrared Illuminator Head
Head ONLY
Head with 300/600 Adapter

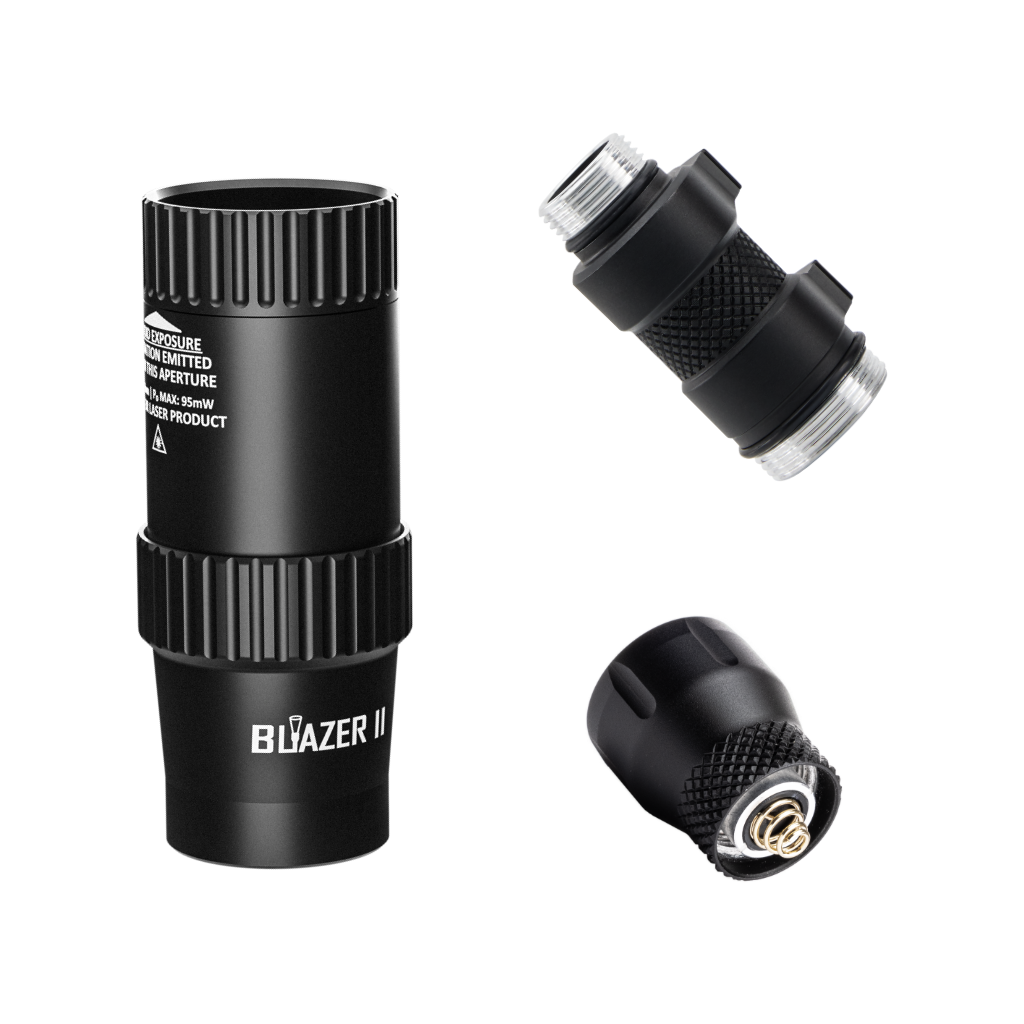

Rifle Mounted Kit:
1 pc Clicky Style Tailcap
1 pc 18350 Scout Light Body
2 pc 18350 Lithium Batteries & Charger
1 pc BLAZER II Infrared Illuminator Head (3R)
Auto Power Scaling [Pat. Pending]
Introducing Z-BOLT® Auto Power Scaling™ technology! FDA laser regulations require manufacturers to “throttle” the power output of VCSEL laser chips, so as to meet the particular Class 3R (civilian legal, <1.95mW) or Class 3B (<500mW) FDA laser safety classifications. Laser power meter results for Class 3R illuminators must not exceed 1.95mW when the device is tested (fixed angle - directed at a 7mm sensor @ 10cm). Z-BOLT® Auto Power Scaling™ technology offers the highest possible LEGAL output power for a given beam angle setting - the telescopic adjustment bezel providing the end user with beam angle dependent power control. Where previous 3R VCSEL illuminators fall short (increased angle beam settings where the IR light fails in wide area illumination), the BLAZER II & ACAL units maintain the maximum permissible power based on the product's FDA classification. Available in both Class 3R (<95mW) Class 3B (150mW~400mW) VCSEL configurations.
The new BLAZER II VCSEL 3R illuminator features a telescopic dual lens optics assembly; variable zoom 4° to 25° functionality; is constructed of aircraft grade aluminum; has a fully potted LED chip to withstand shock & recoil; a brass threaded insert for "buttery" smooth interface with third party light bodies; and MIL-STD-810 & IP68 environmental performance.
FEATURES:
* NOHD = 0.37 meters
* 1250 Meter Beam Throws
* CIV Legal VCSEL IR Illuminator
* Auto Power Scaling [Pat. Pending]
* VCSEL Illuminator, 850nm, IP68
* Head Fits Surefire® M600DF/M640DF
* Fits Modlite 18350 & 18650 Light Bodies
* Fits Z-BOLT® & Arisaka 18350/18650 Light Bodies
* With Adapter - Arisaka 300/600, Surefire® M300/M600
* Variable Zoom 4° to 25° Telescopic Lens System
* Focused Wide Area Flood for Mid-Range or CQB
* Multiple Battery Options - Rechargeable 18350 & 18650
* Multiple Battery Options - CR123A, 16650 with Z-BOLT® Adapter
ITAR Restrictions*
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
Specifications
BLAZER II, Class 3R
15~95mW (Auto Power Scaling)
BATTERY & BATTERY LIFE:
--------------
With 300/600 Adapter:
1 pc CR123A 5.5 hrs
2 pc CR123A 11 hrs
1 pc 16650 14 hrs
--------------
1 pc 18350 14 hrs
1 pc 18650 20 hrs
DIMENSIONS - WEIGHT:
H 3.50 in x W 1.50 in
H 89 mm x W 38 mm
4.5oz. / 127 Grams
