LED Infrared Illuminator
350mW LED Infrared Illuminator
Adjustable Focus Optics 6° to 25°
Illuminator Power - UNRESTRICTED
Beats Class 3R VSCEL in Illuminator Brightness

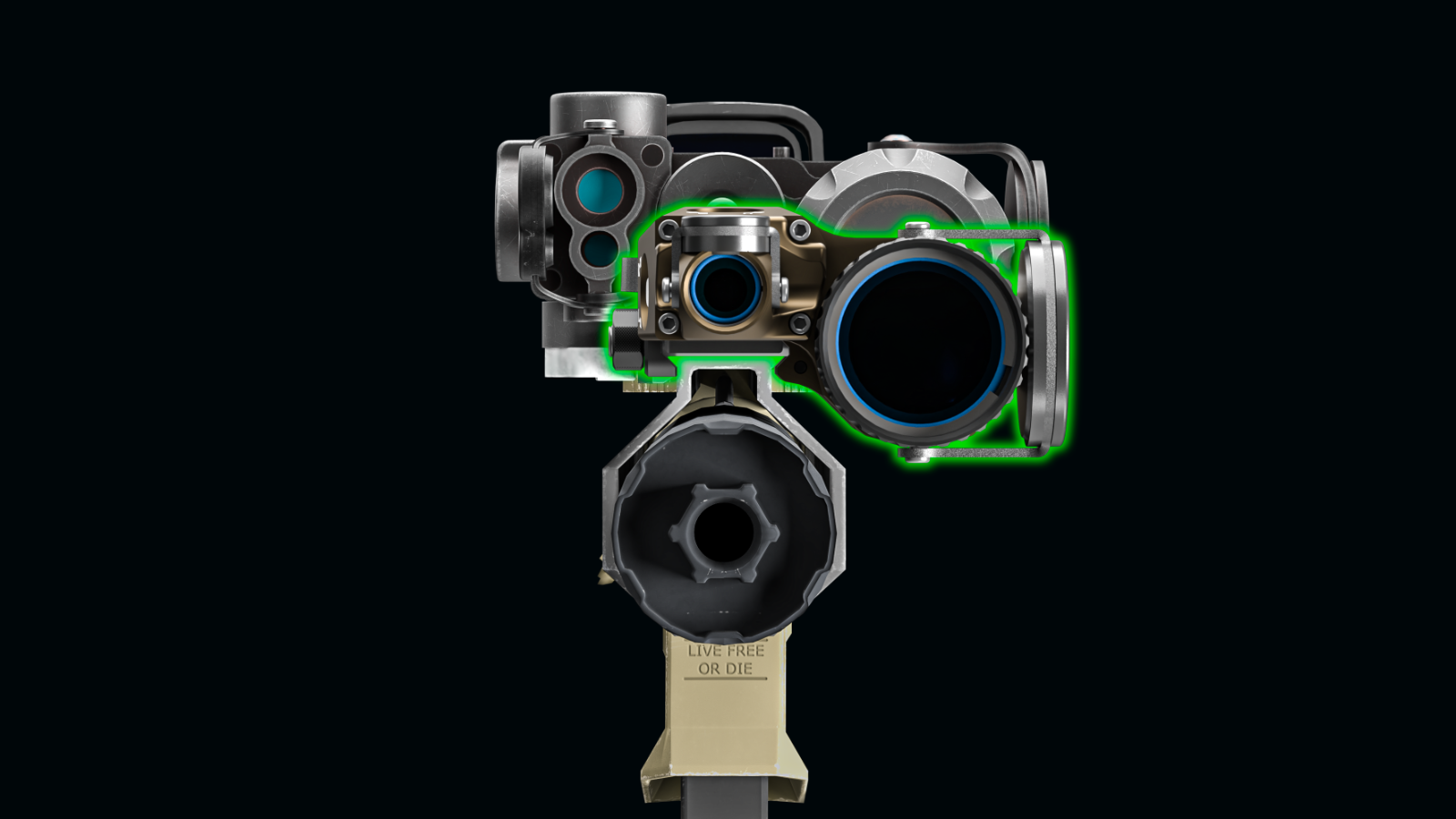

Improved Bezel Motion Ratio
-  75° vs 360° (DBAL D2)
-  Ships With Bezel Throw Lever
-  Quick Transitions - Focus to Flood (CQB)

Features & Benefits

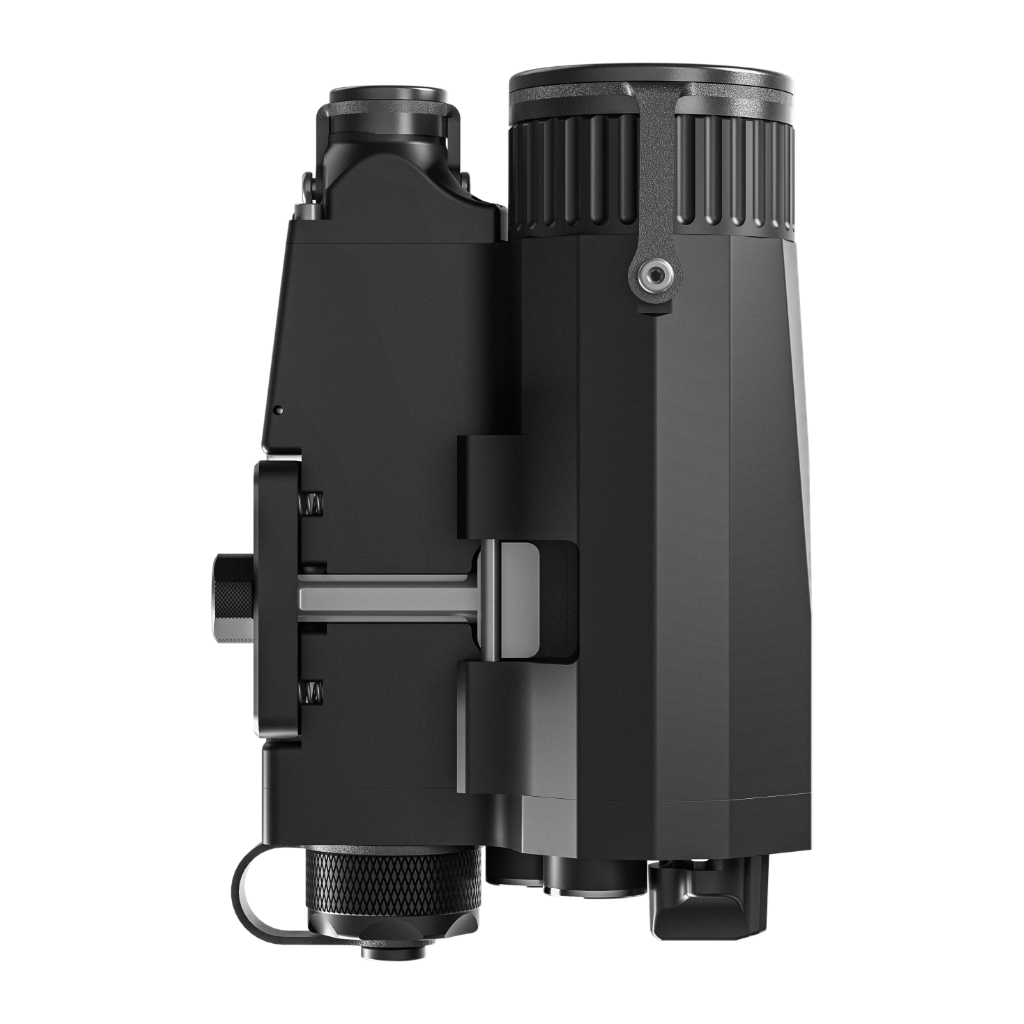

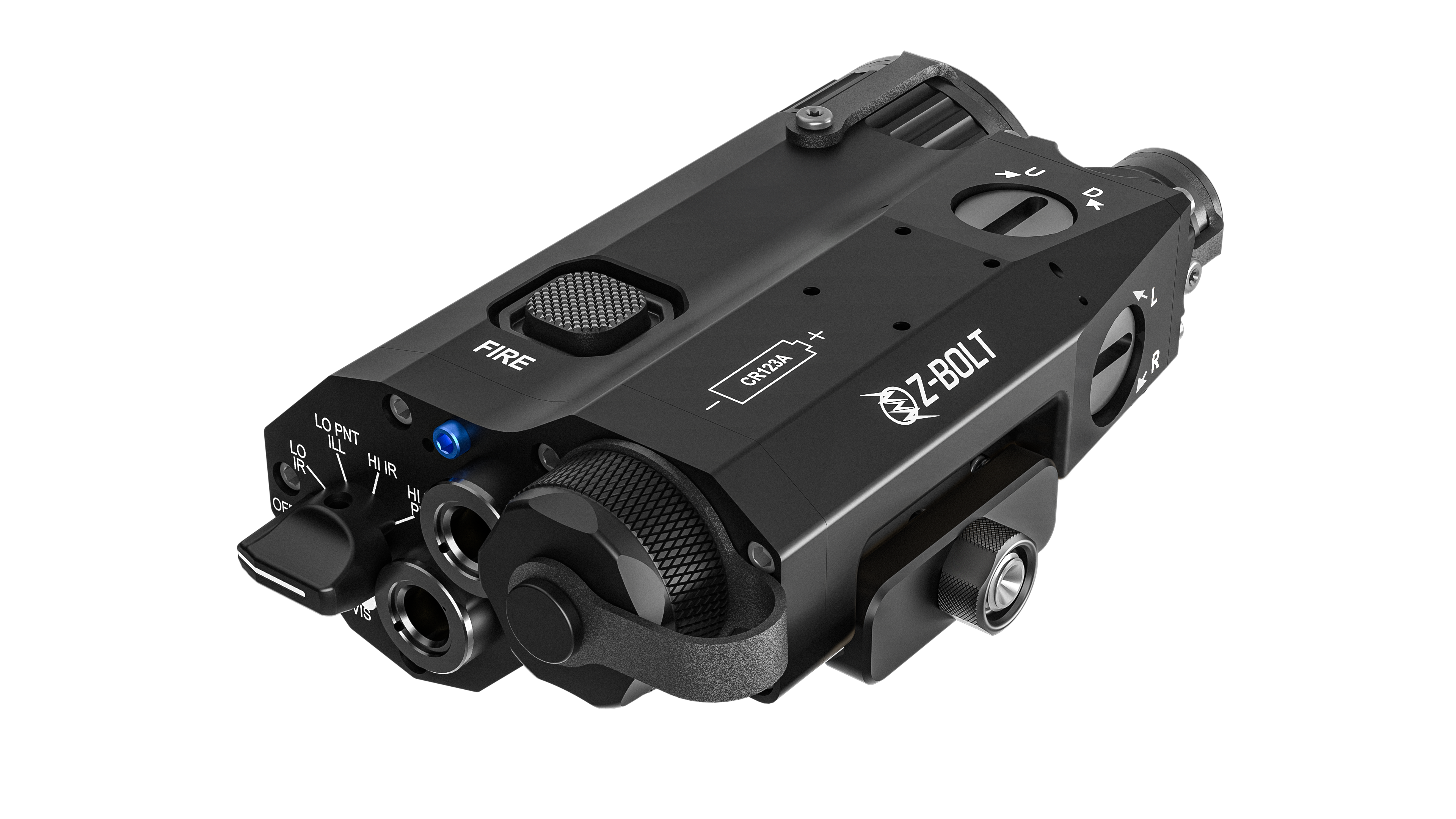

Standard Lug/Bolt or ADM QD Mount
HI/LO Settings for VIS/IR Infrared Illuminators
Dual Crane Ports - Remote Fire & Visible Override
VIS & IR Dot Lasers - One Aperture! Directly Over Bore
- Low Parallax = Improved Shooting Accuracy!

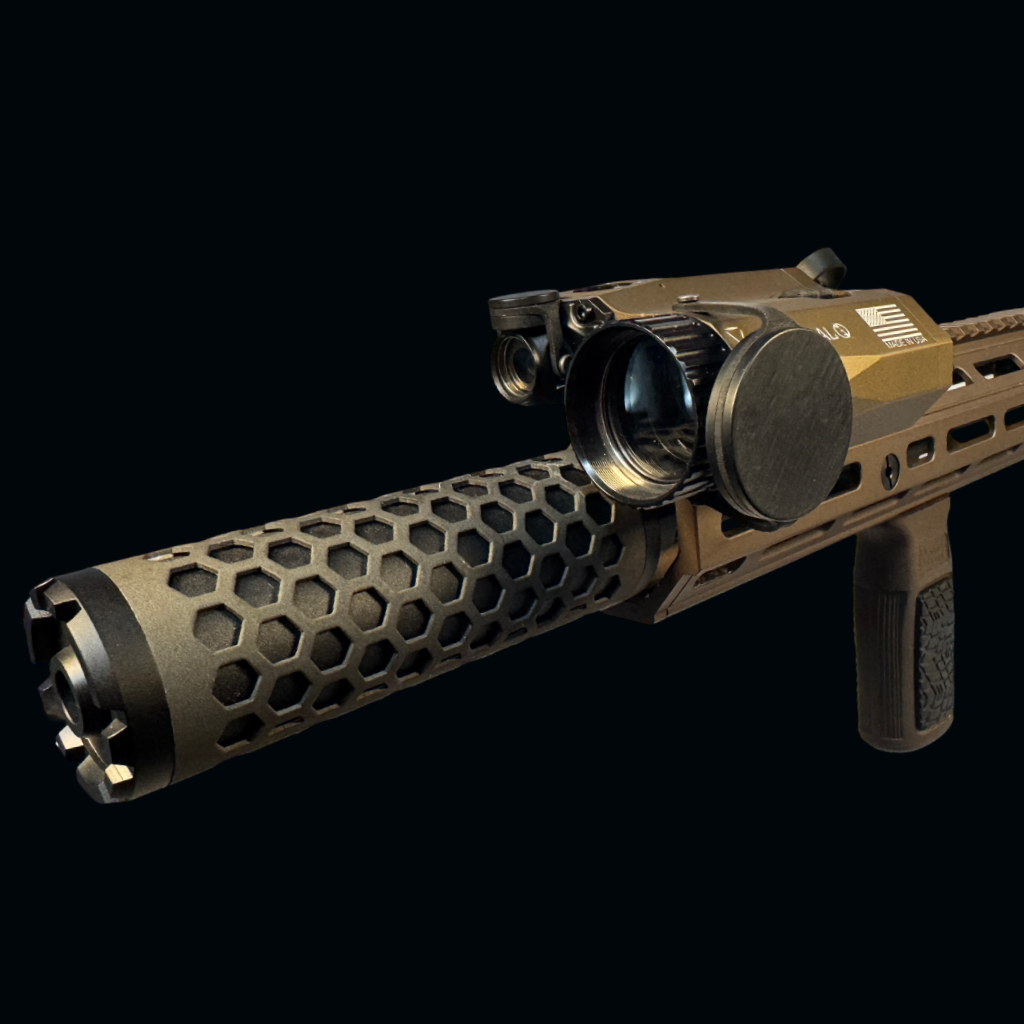

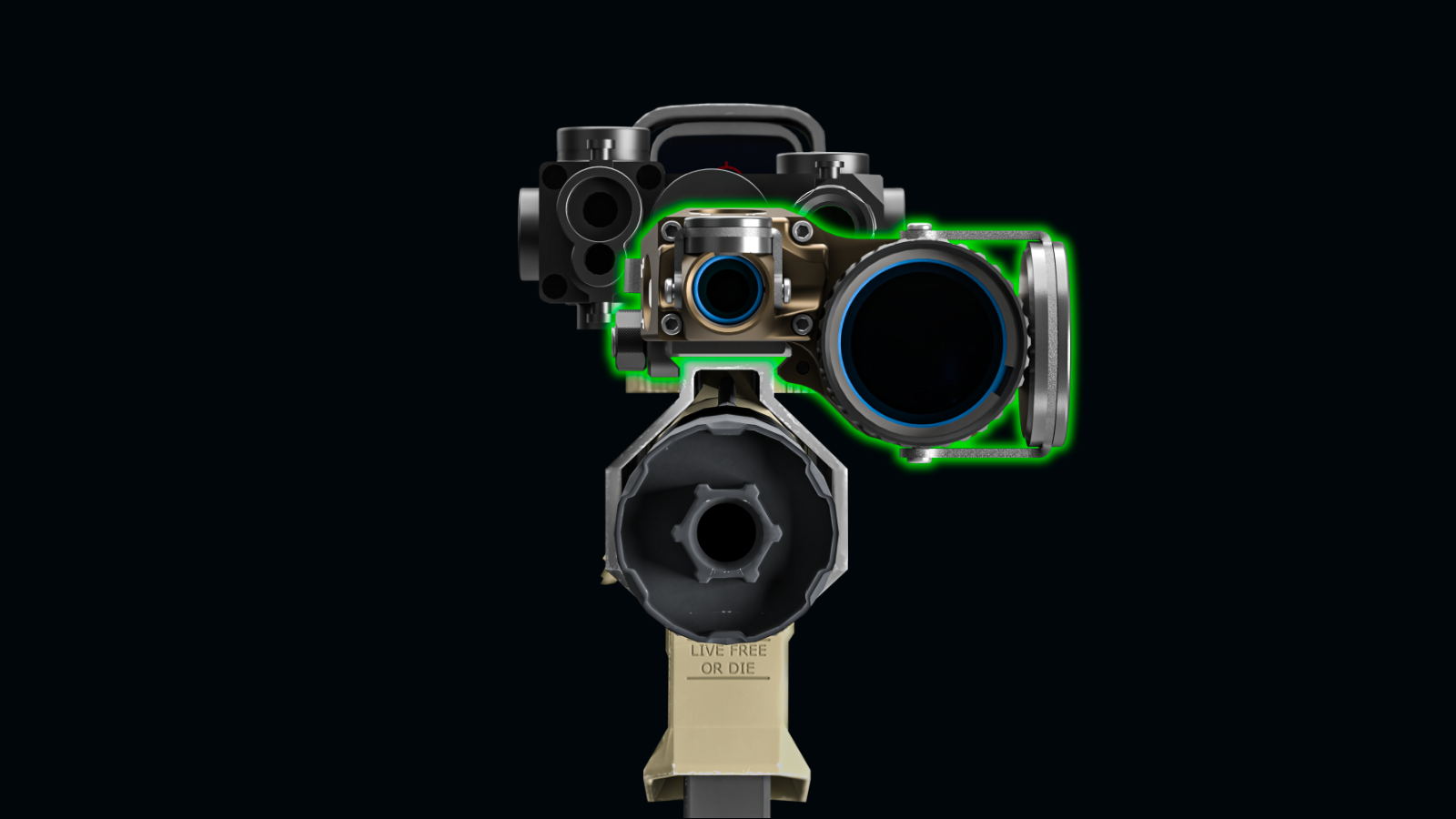

Excellent Optics Clearance - Mounts < 1" Over PIC Rail

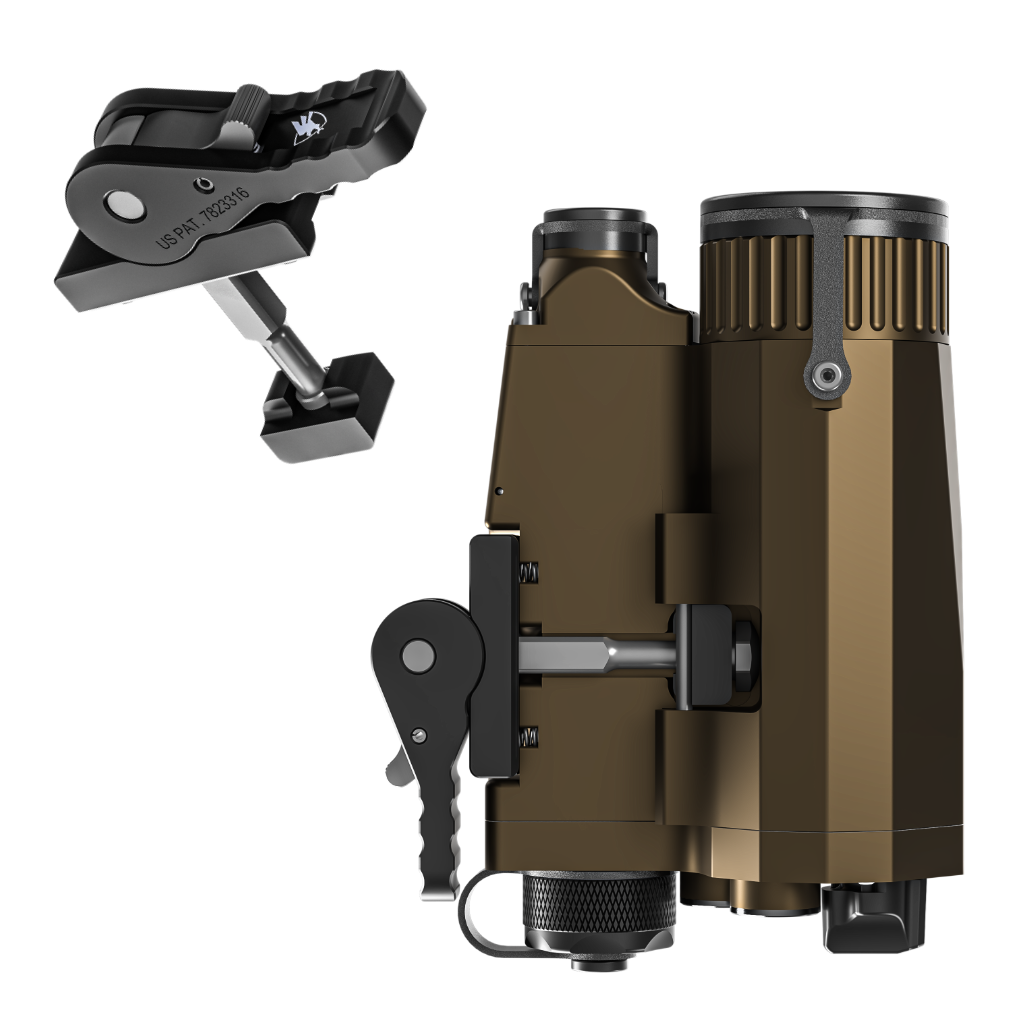

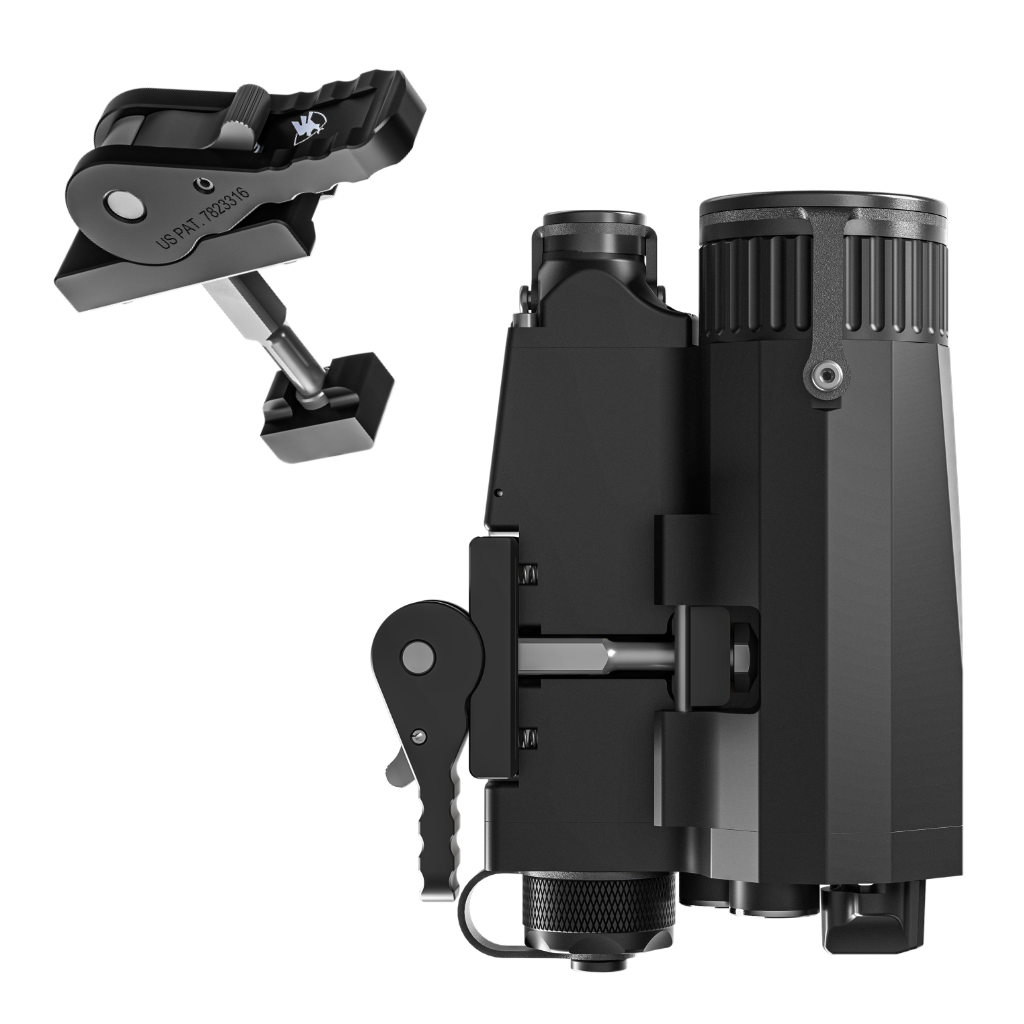

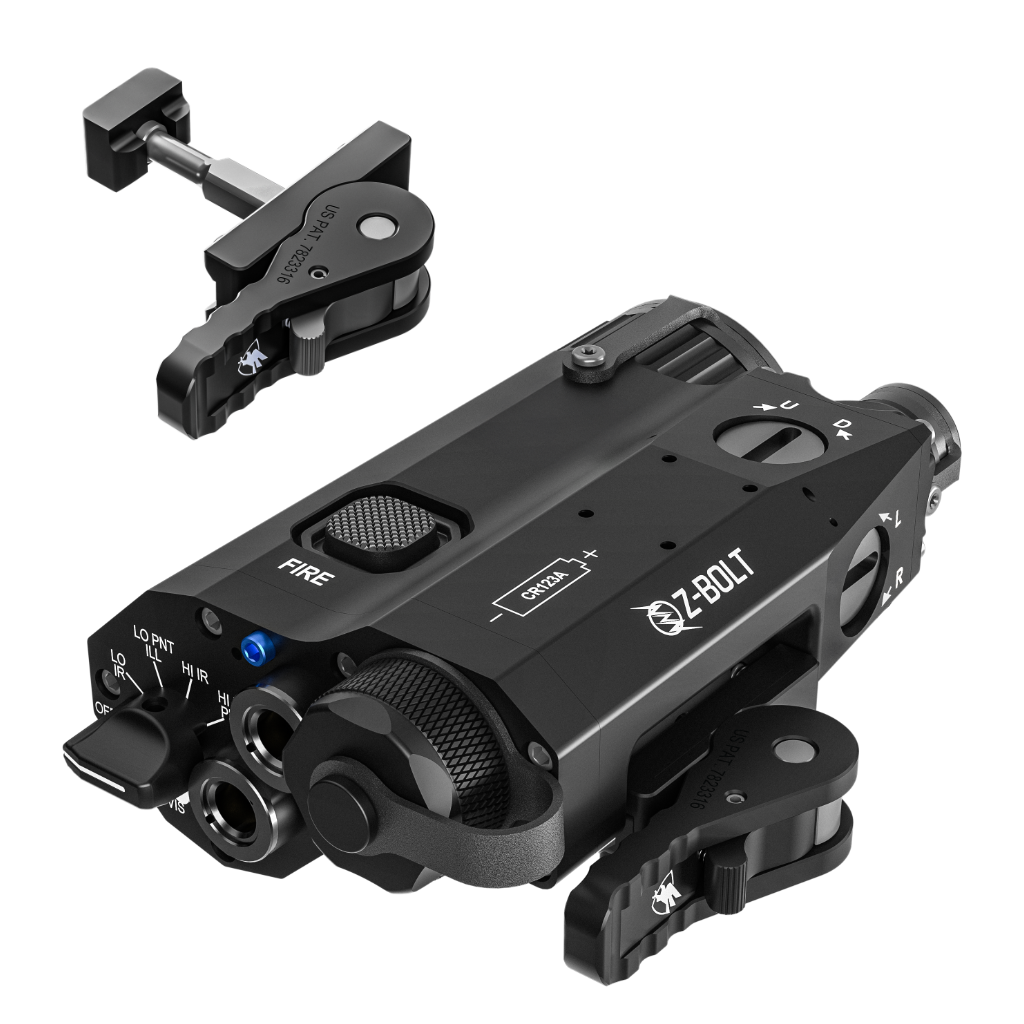

Easy Swap of Bolt/Thumbscrew to ADM Throw Lever Mount

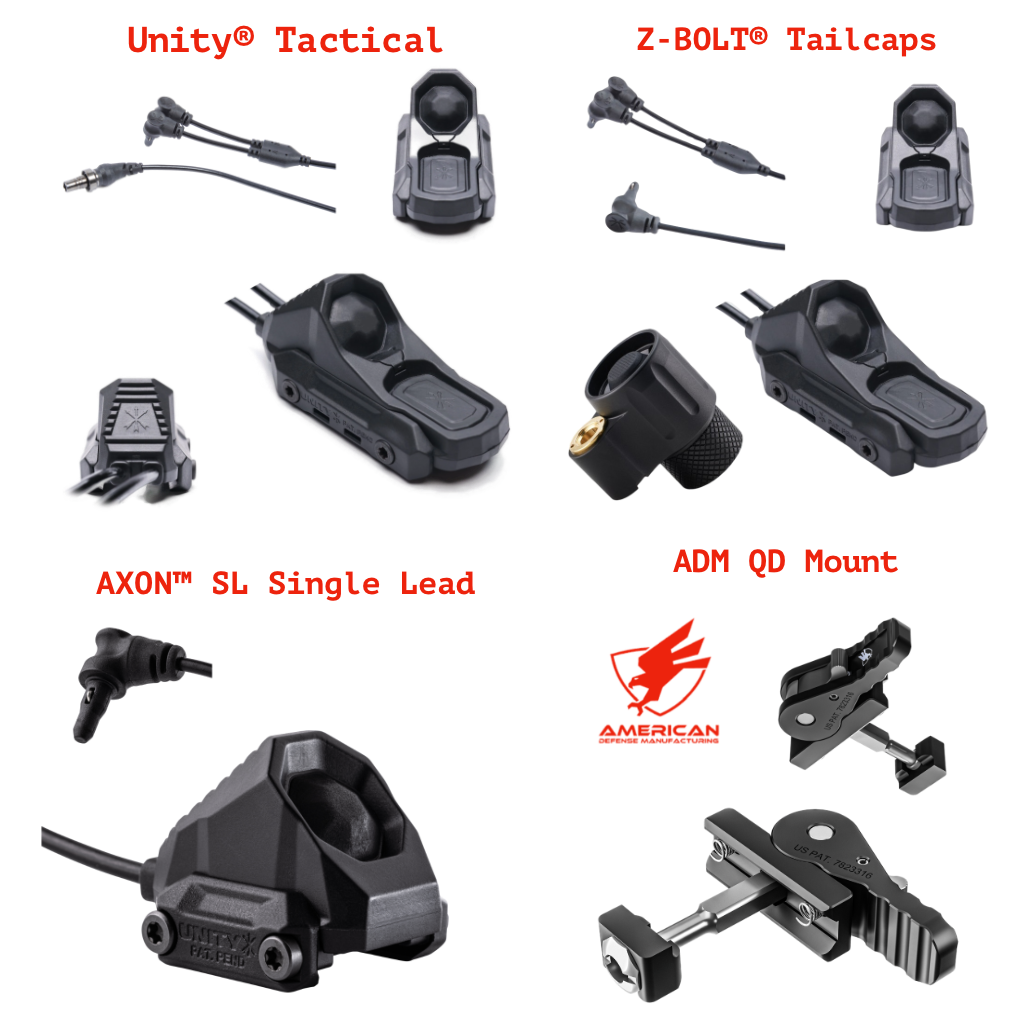

Optional Accessories
- Z-BOLT® Tethered Diffuser for CQB

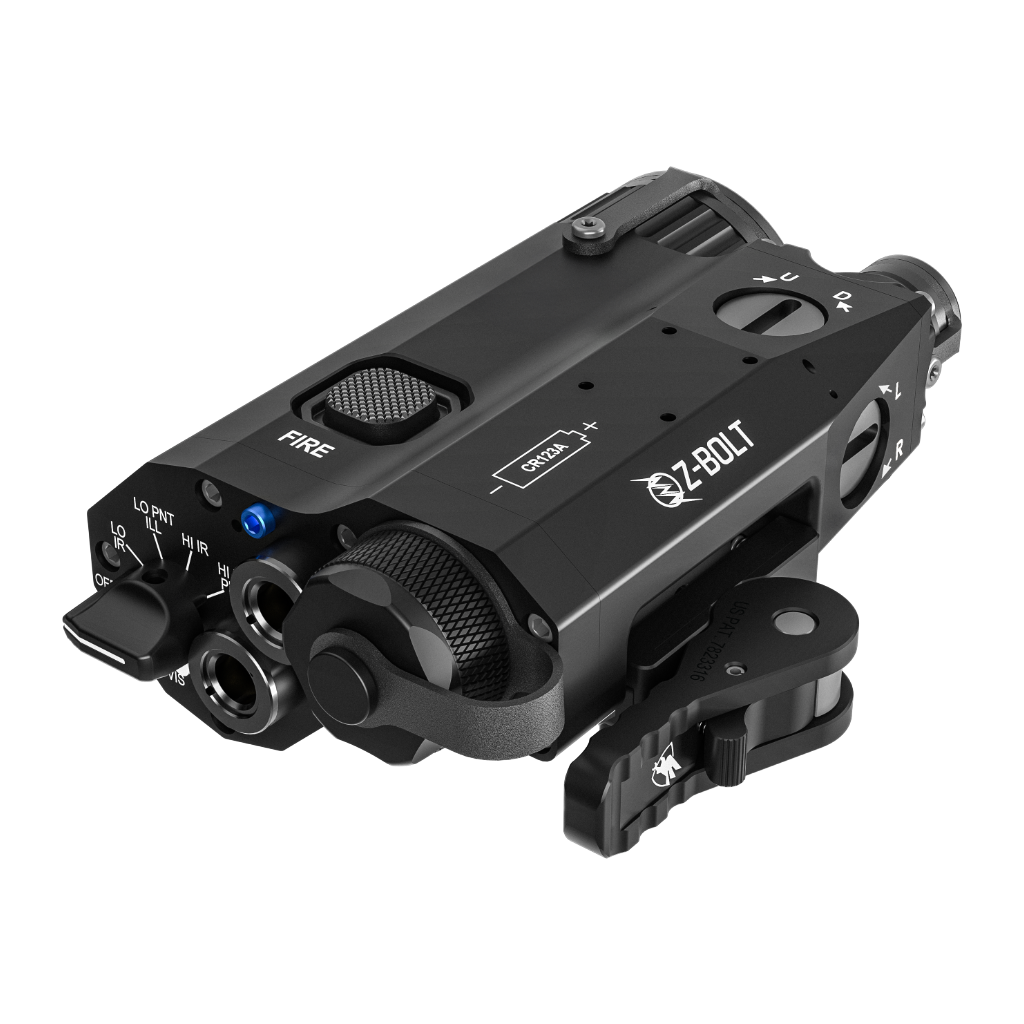

- ADM Quick Detach Lever Assembly
- Unity AXON™ SL & AXON™ Switches
- AXON™ DBAL/ACAL for VIS Override Port

ACAL Overview - Product Benefits & Features

RESTRICTED – U.S. Government Sales Only
High Power Class 3B Laser Illuminators are restricted to Law Enforcement and Government sales only and cannot be sold to civilians. Purchase of IR Laser equipment can only occur at the Department, Agency, or Unit level. IR Lasers cannot be sold to individual Law Enforcement, Military, Government, or Contractor personnel. No exceptions. If you are a government employee and would like to purchase a high power laser, you must have your agency place the order for you.

ITAR Restrictions
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.

LASER & ILLUMINATOR - TYPE
- IR Laser: 0.7 mW: FDA Class 1
- Green Laser: 5mW: FDA Class 3R
- IR LED Illuminator: 350mW, Class 3R

POWER OUTPUT (HI/LO)
- IR Laser: <0.7mW / <0.35mW
- Visible Green Laser: <5mW / <1mW
- IR LED Illuminator: 350mW / 100mW

WAVELENGTH
- IR Laser: 850nm
- IR LED Illuminator: 850nm
- Visible Green Laser: 525nm

BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR LED Illuminator: 4° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad   (ACAL-RV3)

RANGE & VISIBILITY
- IR Laser: 1000m
- IR LED Illuminator: 1000m
- Visible Green Laser: 5mW = 750m

OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR LED Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C

BATTERY & RUNTIME
- 1 pc CR123A Lithium
- 4 Hours - Tactical Use - Mode Dependent

ACAL-GL3 HOUSING:
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hardcoat Anodized

WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm

ENVIRONMENTAL
-  MIL-STD-810 & IP8
- Waterproof to 5 Meters
