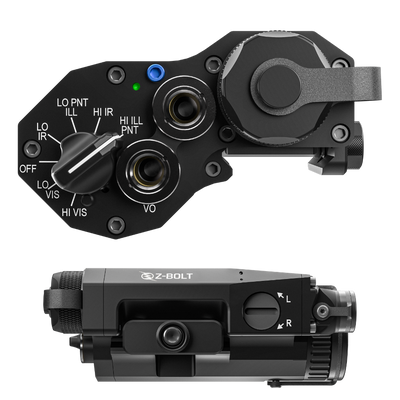

LED Infrared Illuminator
350mW LED Infrared Illuminator
Adjustable Focus Optics 6° to 25°
Illuminator Power - UNRESTRICTED
Beats Class 3R VSCEL in Illuminator Brightness
Improved Bezel Motion Ratio
-  60° vs 360° (DBAL D2)
-  Ships With Bezel Throw Lever
-  Quick Transitions - Focus to Flood (CQB)

Features & Benefits
Standard Lug/Bolt or ADM QD Mount
- Easy Swap to ADM QD Throw Lever Mount
HI/LO Settings for VIS/IR Infrared Illuminators
Dual Crane Ports - Remote Fire & Visible Override
VIS & IR Dot Lasers - One Aperture!
- Laser Directly Over Bore
- Low Parallax = Improved Shooting Accuracy
Excellent Optics Clearance
- Mounts < 1" Over Picatinny Rail
- Illuminator "Saddle Bagged" for Button Access

Optional Accessories
- Z-BOLT® Tethered Diffuser for CQB
- ADM Quick Detach Lever Assembly
- Unity AXON™ SL & AXON™ Switches
- AXON™ DBAL/ACAL for VIS Override Port

ACAL MFAL - User's Manual
ACAL Data Sheet - Laser 3R, IR LED
ACAL Brief - Product Benefits & Design Features

Online Orders to US resident addresses ONLY.
It is illegal to export this product. See below . . .

ITAR Restrictions
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.

LASER & ILLUMINATOR - TYPE
- IR Laser: 0.7 mW: FDA Class 1
- Green Laser: 5mW: FDA Class 3R
- IR LED Illuminator: 350mW, UNRESTRICTED

POWER OUTPUT (HI/LO)
- IR Laser: <0.7mW / <0.35mW
- Visible Green Laser: <5mW / <1mW
- IR LED Illuminator: 350mW / 100mW

WAVELENGTH
- IR Laser: 850nm
- IR LED Illuminator: 850nm
- Visible Green Laser: 525nm

BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR LED Illuminator: 6° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad   (ACAL-RV3)

RANGE & VISIBILITY
- IR Laser: 750m
- Green Laser: 750m
- IR LED Illuminator: 1000m

OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR LED Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C

BATTERY & RUNTIME
- 1 pc CR123A Lithium Metal
- 4 Hours - Tactical Use - Mode Dependent

ACAL-GL3 HOUSING:
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hard Coat Anodized

WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm

ENVIRONMENTAL
-  MIL-STD-810 & IP8
- Waterproof to 5 Meters
