BLAZER II, VCSEL IR Illuminator for IR Laser - BUNDLE! (IP68)
Sale price$495.00Regular price$610.00
Made in USA 🇺🇸 - Civilian Legal VCSEL Illuminator - Adjustable Focus Optics 4° to 25° - Class 3R - VCSEL (IP68, 15~95mW) - Auto Power Scaling* (See Product Details) See ITAR Statement* in Product Details* Below LED-VCSEL-ILLUMINATORS-2025.pdf

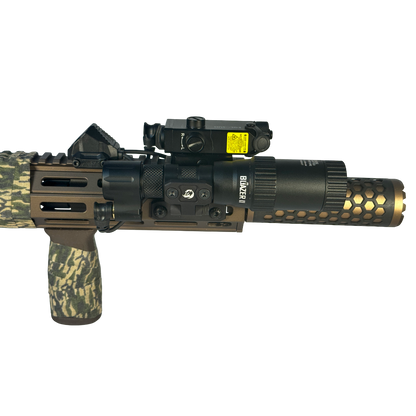

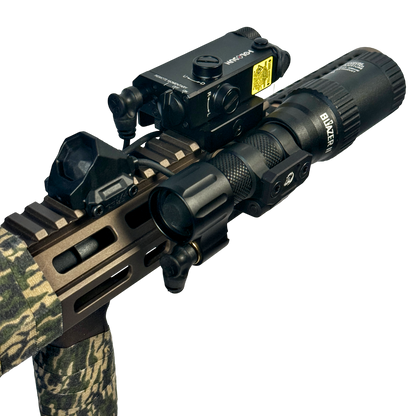

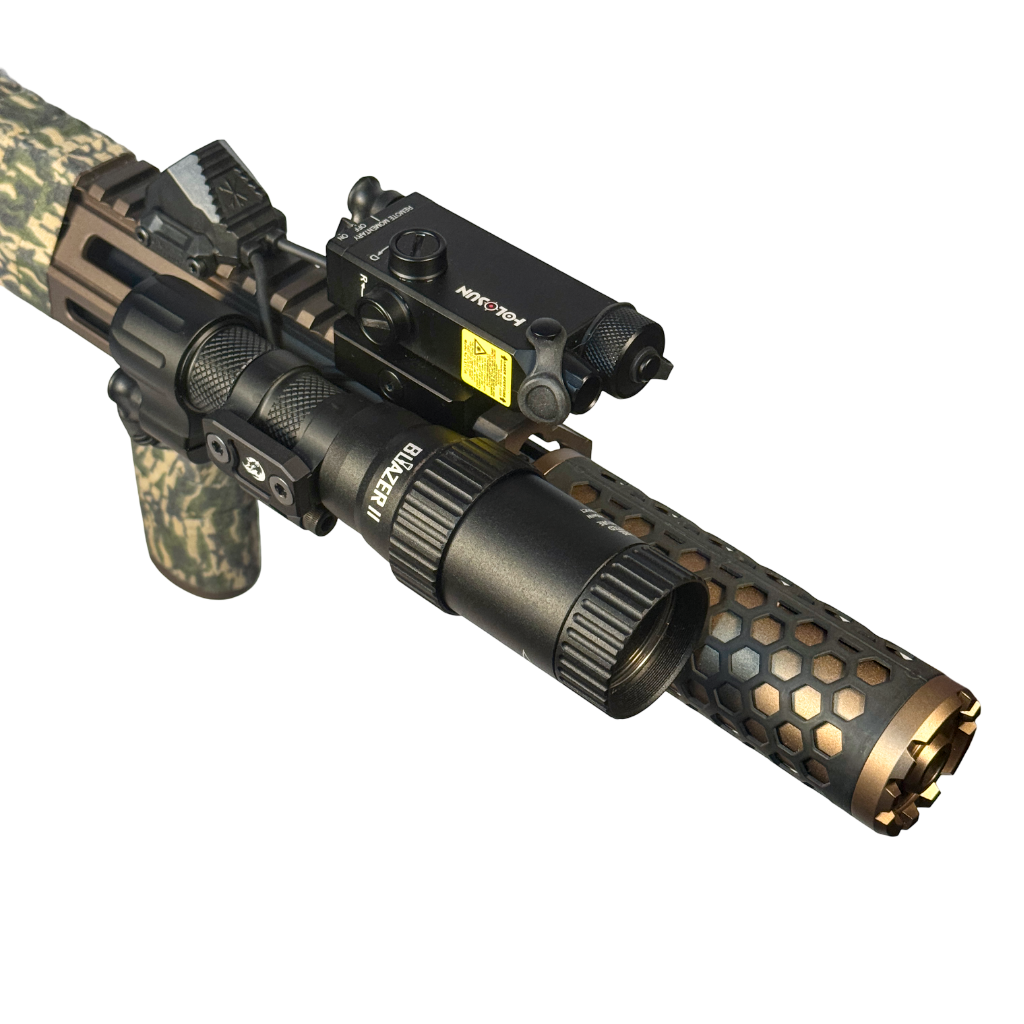

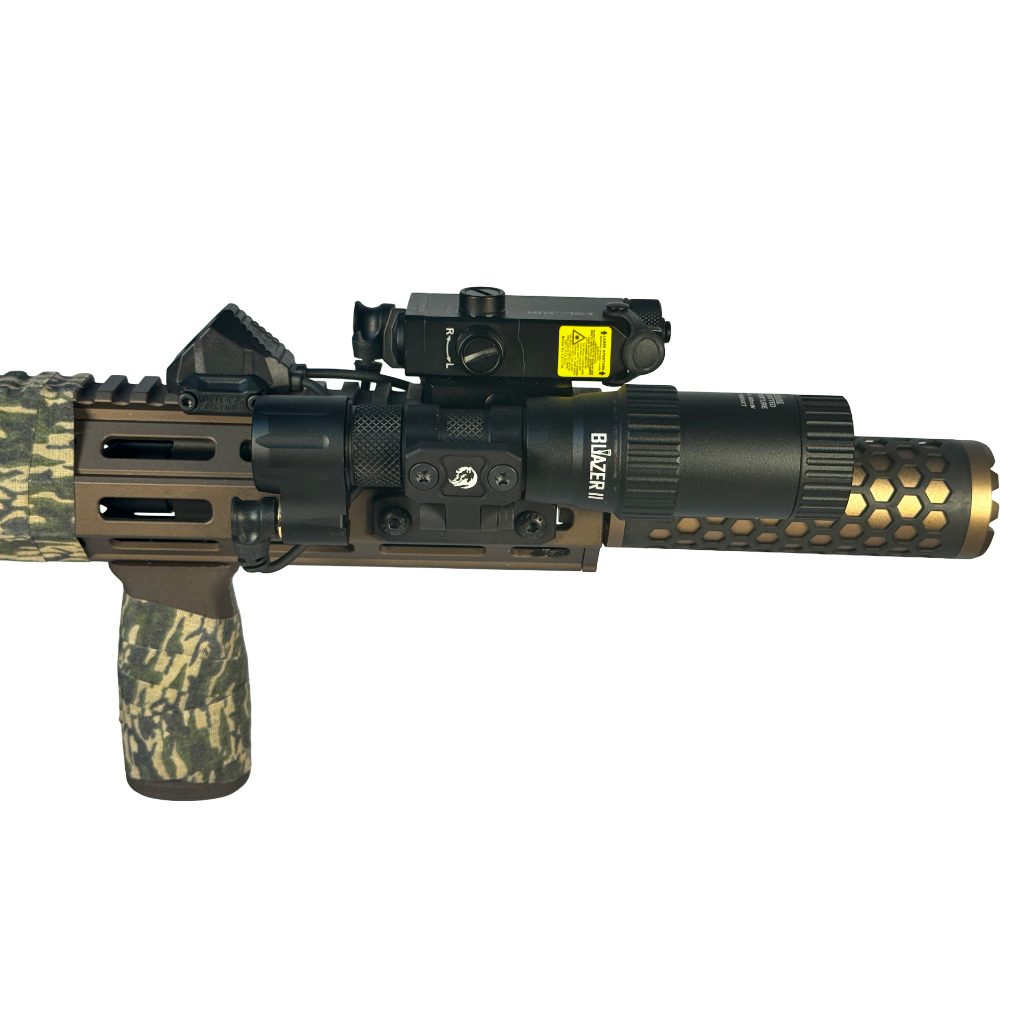

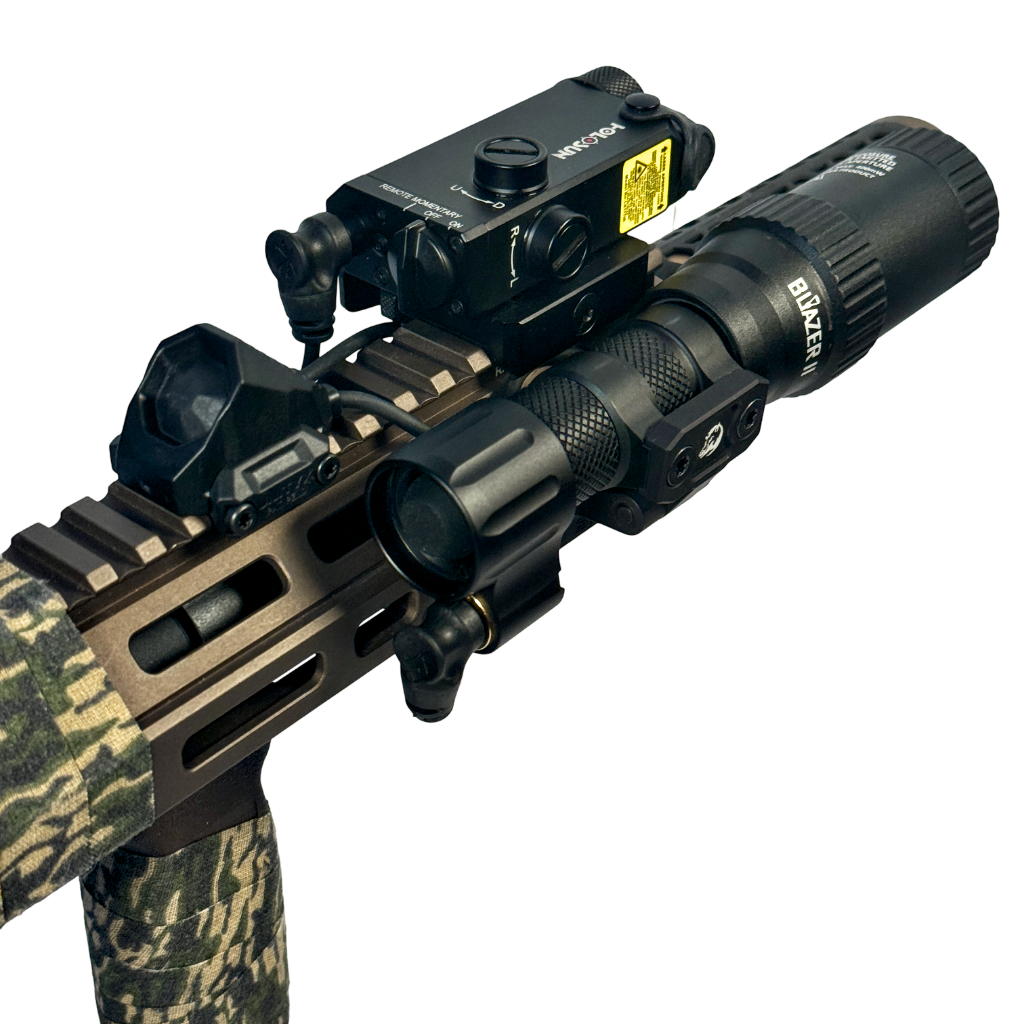

Bundle includes the AXON SL Dual Crane Plug Switch includes Momentary Pressure and Constant on Modes. Also a Z-BOLT® Dual Function Cable Port Tailcap. The combination operates the Z-BOLT® VCSEL Infrared Illuminator AND your IR Laser Unit SIMULTANEOUSLY! (Laser Not Included)

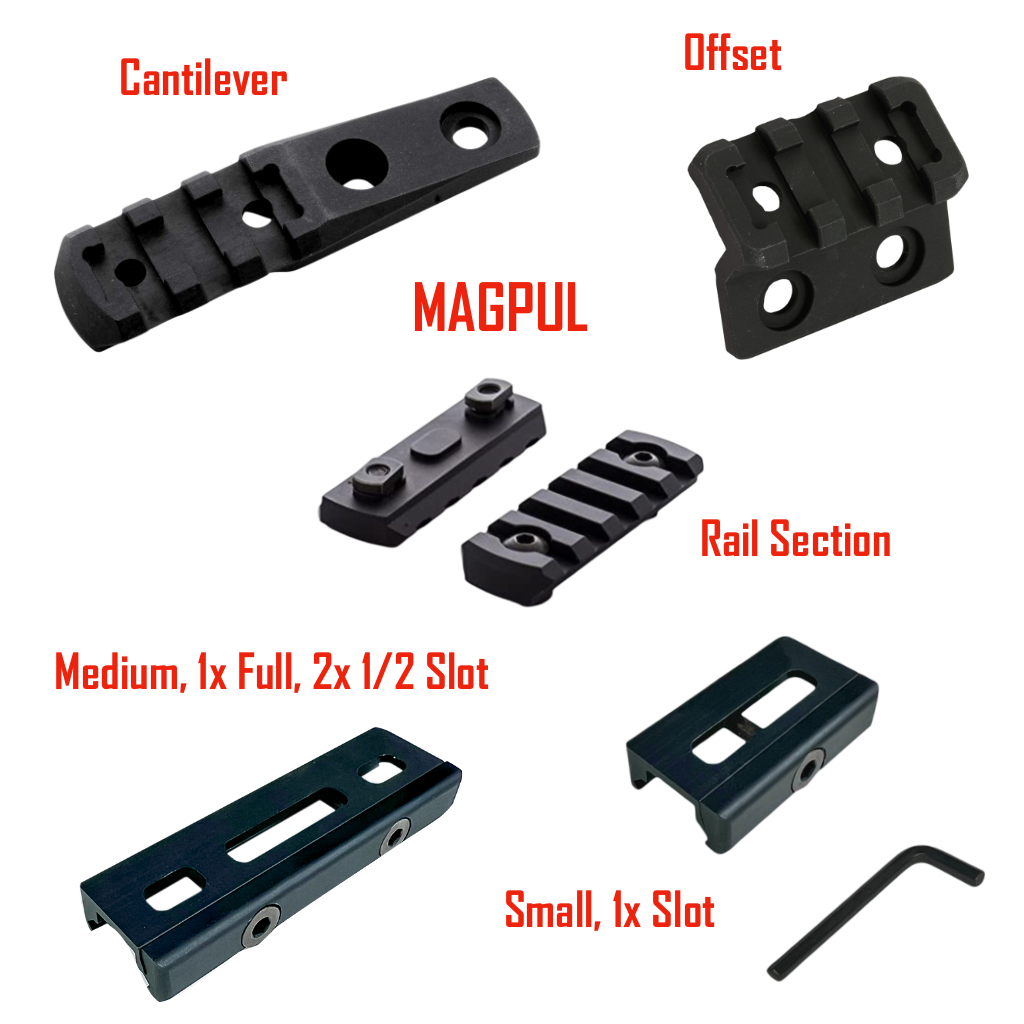

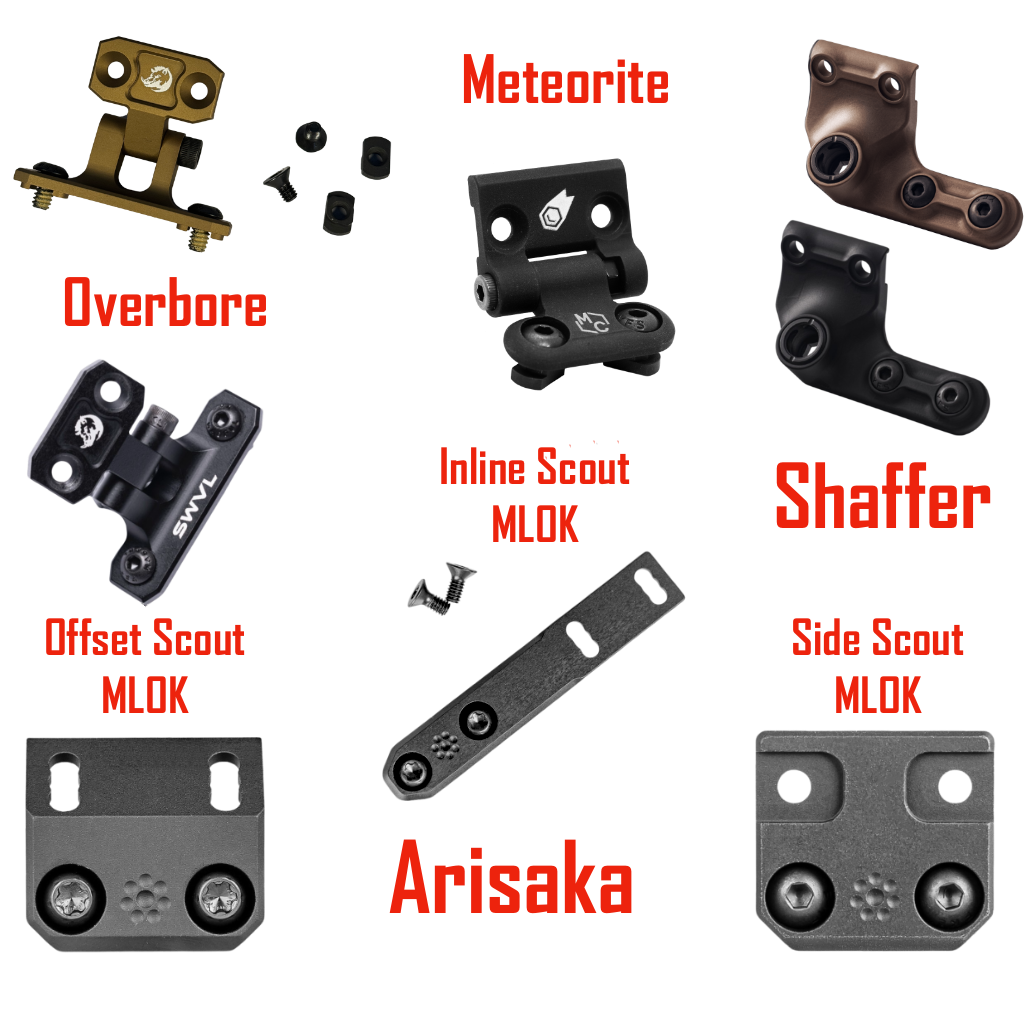

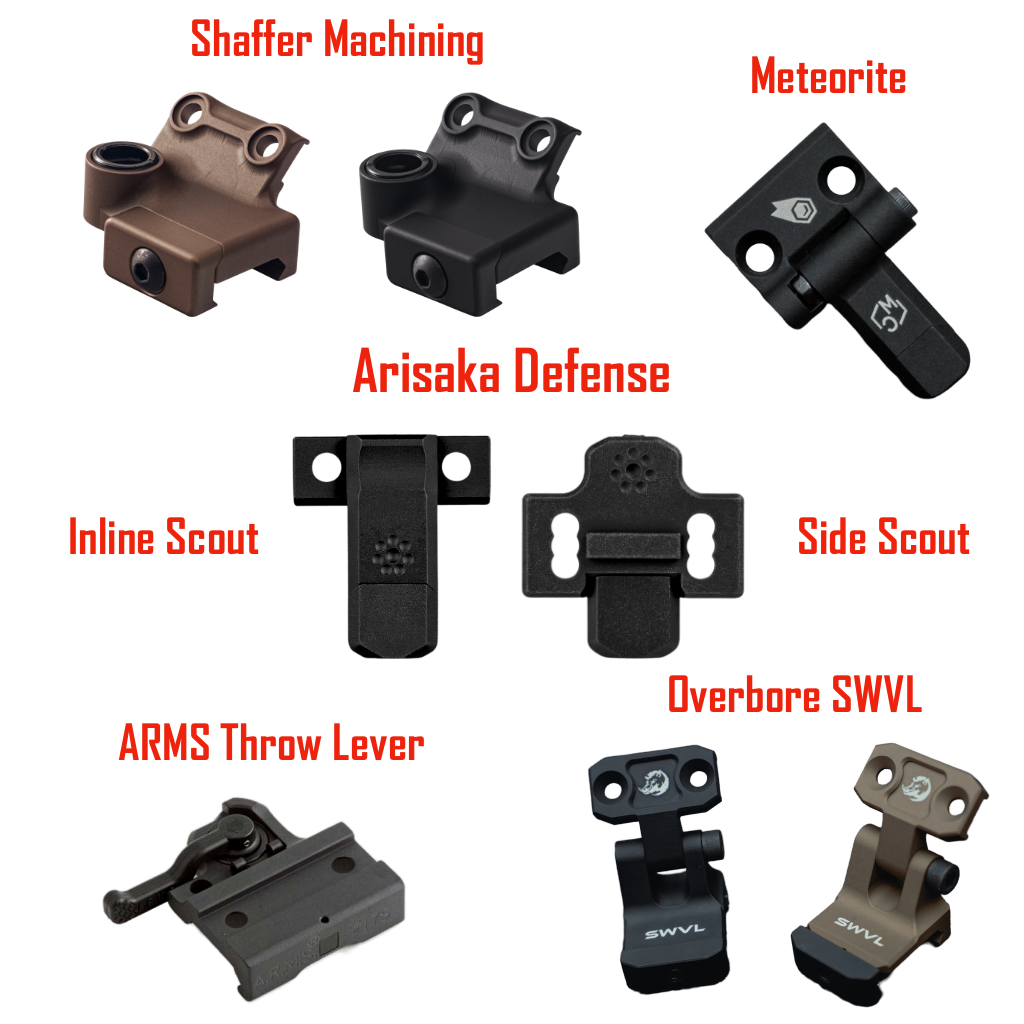

The new BLAZER II VCSEL illuminator features :auto power scaling"; a telescopic dual lens optics assembly; variable zoom 4° to 25° functionality; constructed of aircraft grade aluminum; has a fully potted LED chip to withstand shock & recoil; a brass threaded insert for "buttery" smooth interface with third party light bodies; and MIL-STD-810 & IP68 environmental performance. Heads are Scout compatible. The BLAZER II fits Modlite, Arisaka, & Z-BOLT® 18350 & 18650. Fits Surefire M300/M600 & Arisaka 300/600 light bodies with the Z-BOLT® Scout adapters. Runs on multiple battery cell types.
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Information
Share contact information, store details, and brand content with your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product Details

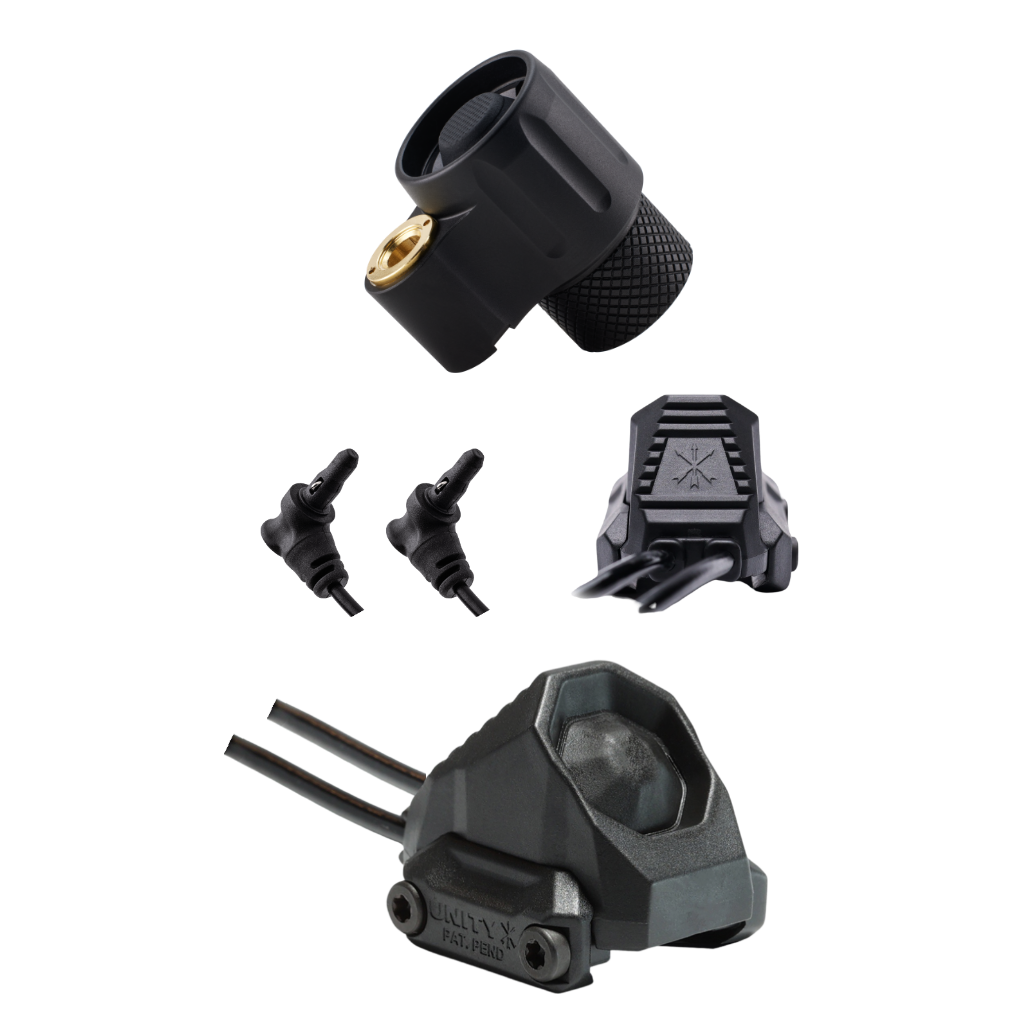

The AXON SL [AXN-SL-117-C] Dual Crane Plug Switch includes Momentary Pressure and Constant on Modes.
Operates the Z-BOLT® VCSEL Infrared Illuminator AND your IR Laser Unit SIMULTANEOUSLY! (Laser Not Included)

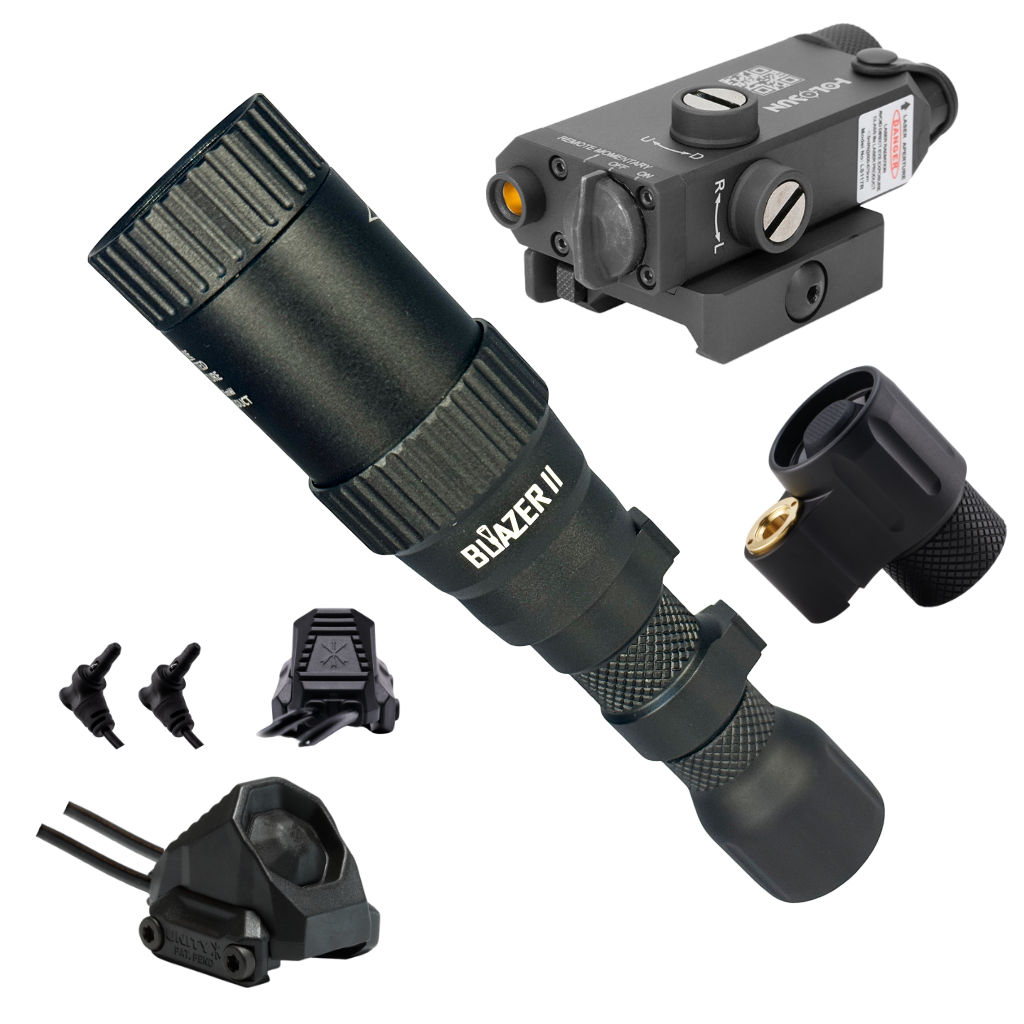

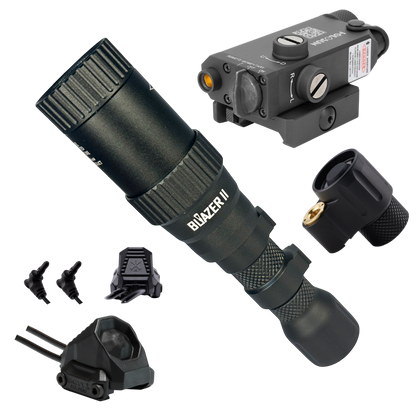

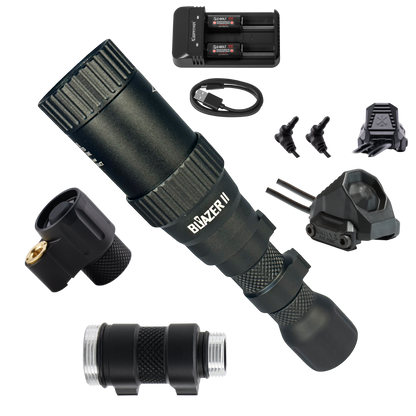

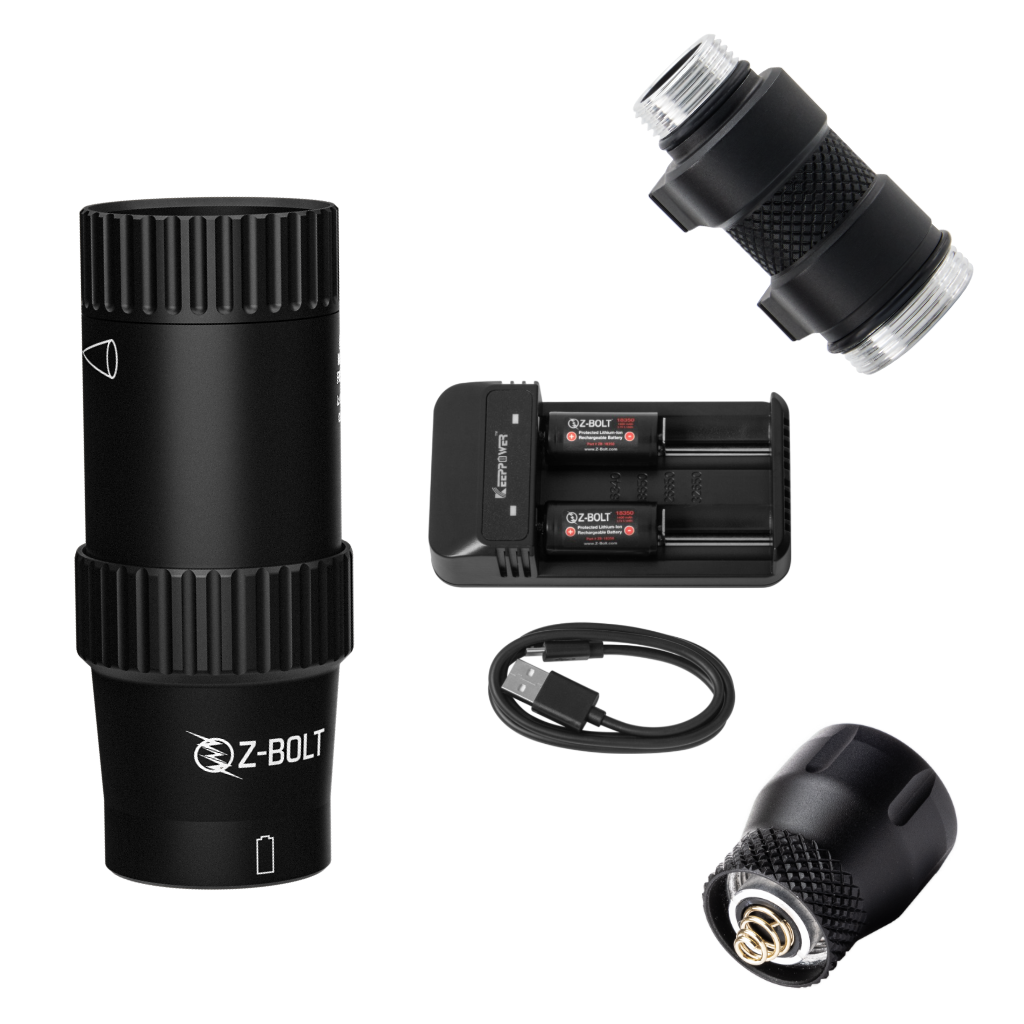

VCSEL IR Bundle Includes:
1 pc 18350 Light Body
1 pc Clicky-Style Tailcap
1 pc VCSEL IR Illuminator (Class 3R)
1 pc Dual Function Cable Port Tailcap
1 pc AXON SL Dual Lead Switch - Crane
2 pc 18350 & 1 pc 2x Slot Charger
(Remote Port - Out of Stock)

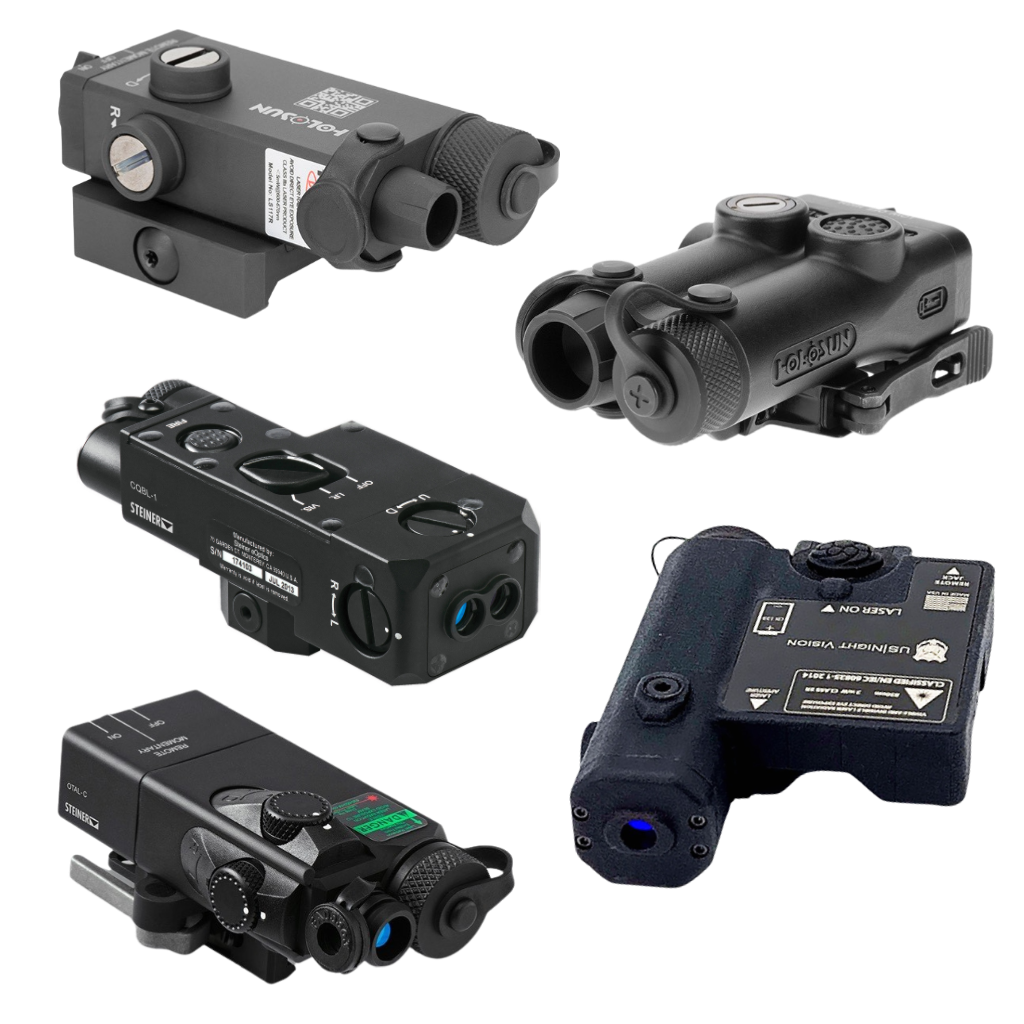

Please NOTE: IR Laser Not Included
Civilian LEGAL
Class 3R - VCSEL (<95mW)
BLAZER II Infrared Illuminator Head
Auto Power Scaling [Pat. Pending]
Introducing Z-BOLT® Auto Power Scaling™ technology! FDA laser regulations require manufacturers to “throttle” the power output of VCSEL laser chips, so as to meet the particular Class 3R (civilian legal, <1.95mW) or Class 3B (<500mW) FDA laser safety classifications. Laser power meter results for Class 3R illuminators must not exceed 1.95mW when the device is tested (fixed angle - directed at a 7mm sensor @ 10cm). Z-BOLT® Auto Power Scaling™ technology offers the highest possible LEGAL output power for a given beam angle setting - the telescopic adjustment bezel providing the end user with beam angle dependent power control. Where previous 3R VCSEL illuminators fall short (increased angle beam settings where the IR light fails in wide area illumination), the BLAZER II & ACAL units maintain the maximum permissible power based on the product's FDA classification. Available in both Class 3R (<95mW) Class 3B (150mW~400mW) VCSEL configurations.

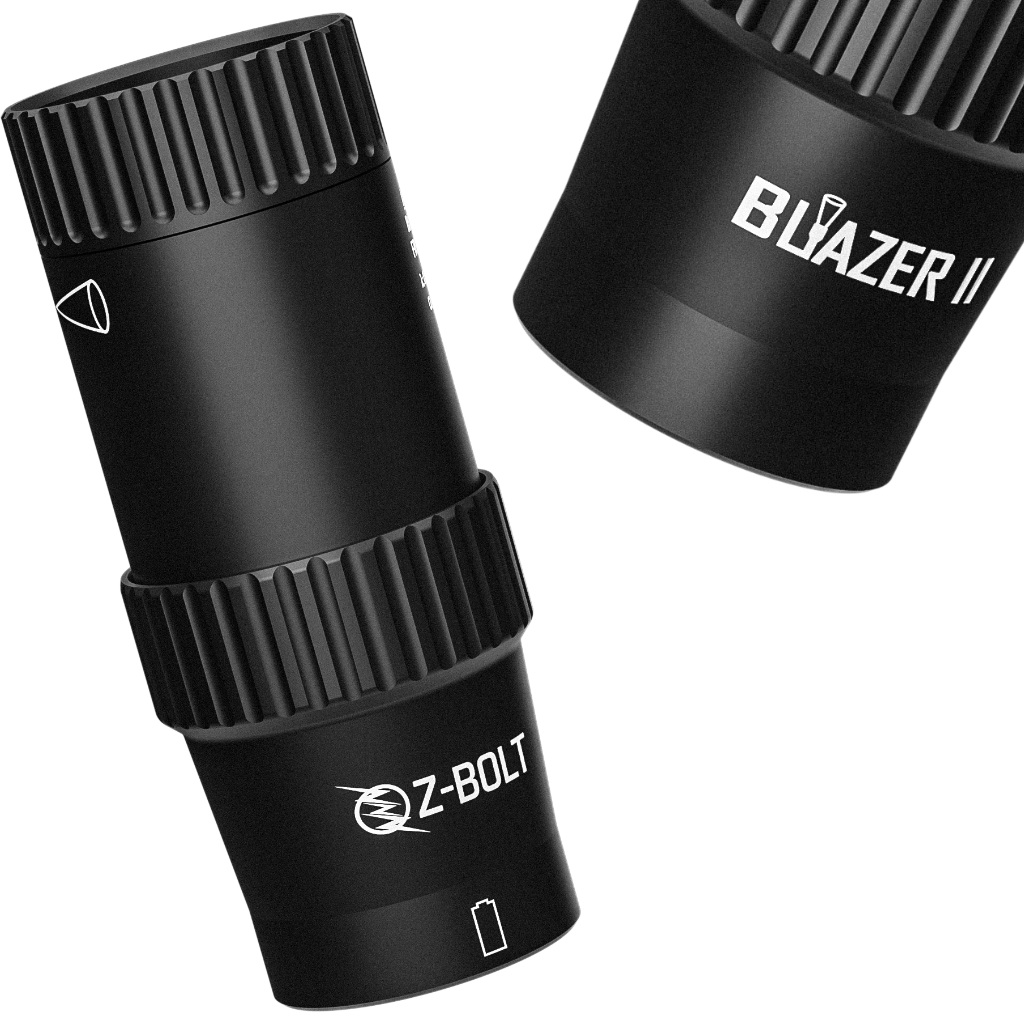

The new BLAZER II VCSEL 3R illuminator features a telescopic dual lens optics assembly; variable zoom 4° to 25° functionality; is constructed of aircraft grade aluminum; has a fully potted LED chip to withstand shock & recoil; a brass threaded insert for "buttery" smooth interface with third party light bodies; and MIL-STD-810 & IP68 environmental performance.
FEATURES:
* NOHD = 0.37 meters
* 1250 Meter Beam Throws
* CIV Legal VCSEL IR Illuminator
* Auto Power Scaling [Pat. Pending]
* VCSEL Illuminator, 850nm, IP68
* Variable Zoom 4° to 25° Telescopic Lens System
* Focused Wide Area Flood for Mid-Range or CQB
ITAR Restrictions*
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
Specifications
Specifications
- IR Beam Throw: 1250 Meters
- Run Time: 14 hrs - 1 pc 18350
- VCSEL PCB: Fully Potted to Withstand Shock & Recoil
- Battery: 1 pc 18350 - 3.7V, Z-BOLT® 1400 mAh Lithium
- Weight: 154 grams / 5.4 oz (18350 battery installed)
- Length: 6.0 in. (154mm) (18350 - Short Barrel)
- VCSEL Illuminator Head Width: 32mm
- Body Material: T6061 Aluminum Alloy
- Surface - Mil-Spec Hard Coat Anodized: Matte Black
- Warranty: 2 Years from Date of Purchase
