Contact for Quotes, Request T & E
Please contact us for pricing & availability, or to schedule a demo BLAZER II to shoot and evaluate. (T & E) Class 3B IR Lasers are restricted to Law Enforcement and Government sales only and cannot be sold to civilians. Purchase of IR Laser equipment can only occur at the Department, Agency, or Unit level. IR Lasers cannot be sold to individual Law Enforcement, Military, Government, or Contractor personnel. No exceptions. If you are a government employee and would like to purchase an IR laser, you must have your agency place the order for you. These lasers are regulated by the FDA (Food & Drug Administration). Price inquires must include an email request from an official government or government contractor email address. All ITAR restrictions apply.See ITAR Statement* (Product Details)
Product Details
Features & Benefits
Box Contents
1 pc ACAL MFAL 3B
2 pc CR123A Batteries
1 pc Illuminator Throw Lever

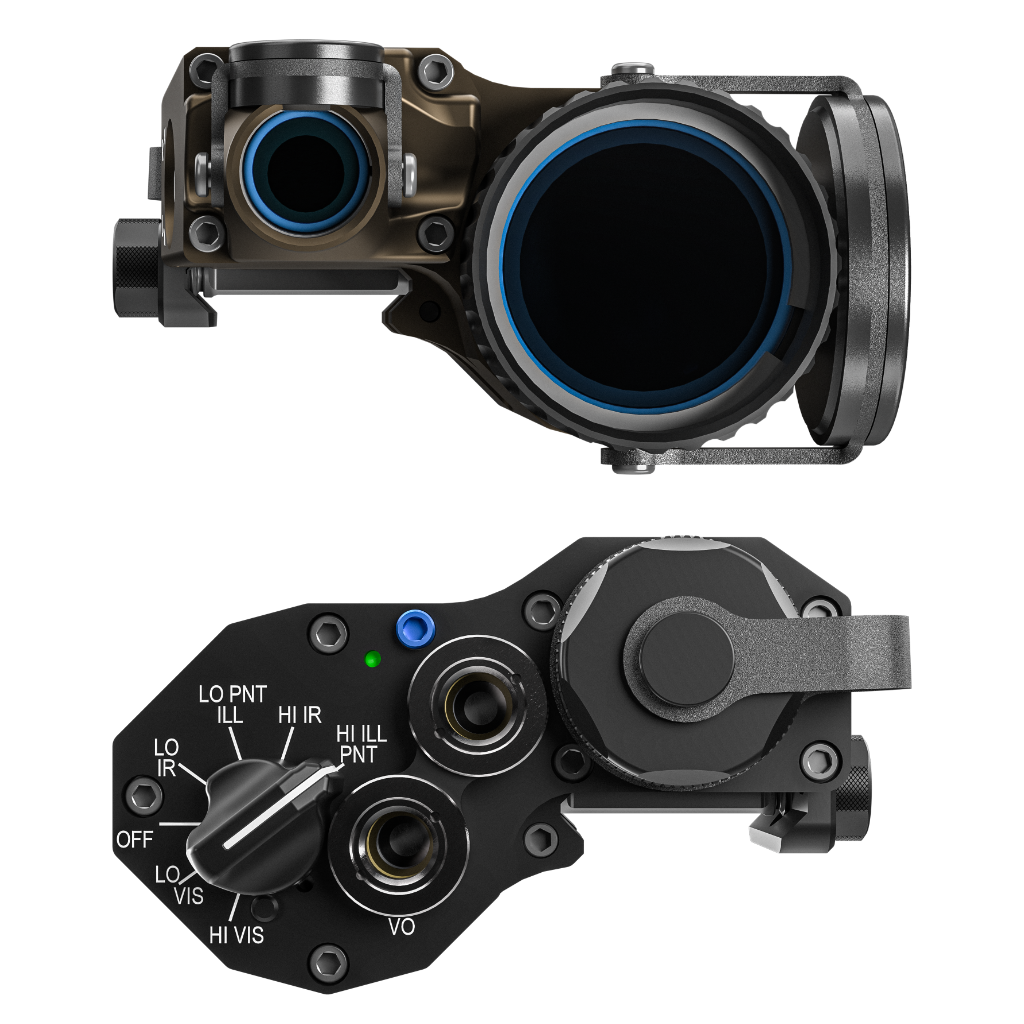

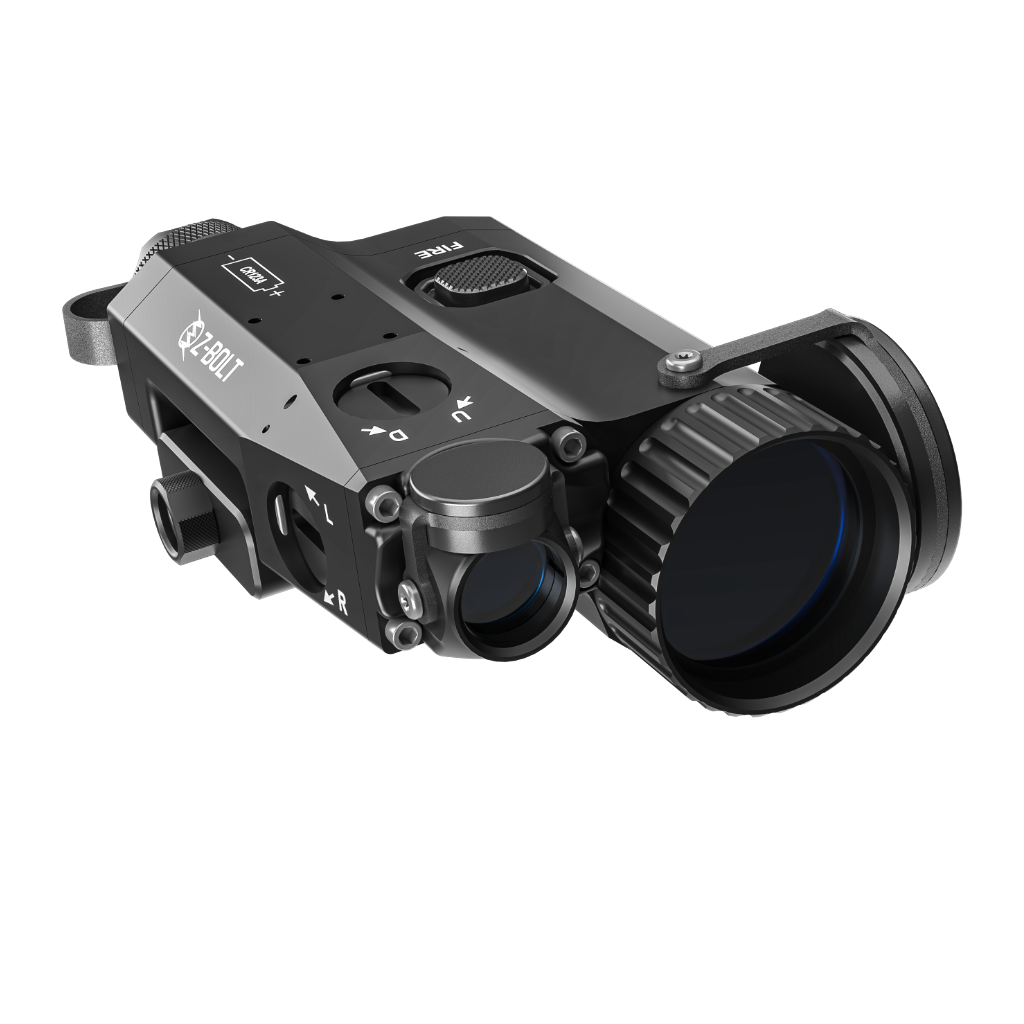

Class 3B Infrared Illuminator
- Adjustable Focus Optics 4° to 25° - 400mW VCSEL Infrared Illuminator
Improved Bezel Motion Ratio
- 60° vs 360° (DBAL D2)
- Ships With Bezel Throw Lever
- Quick Transitions - Focus to Flood (CQB)

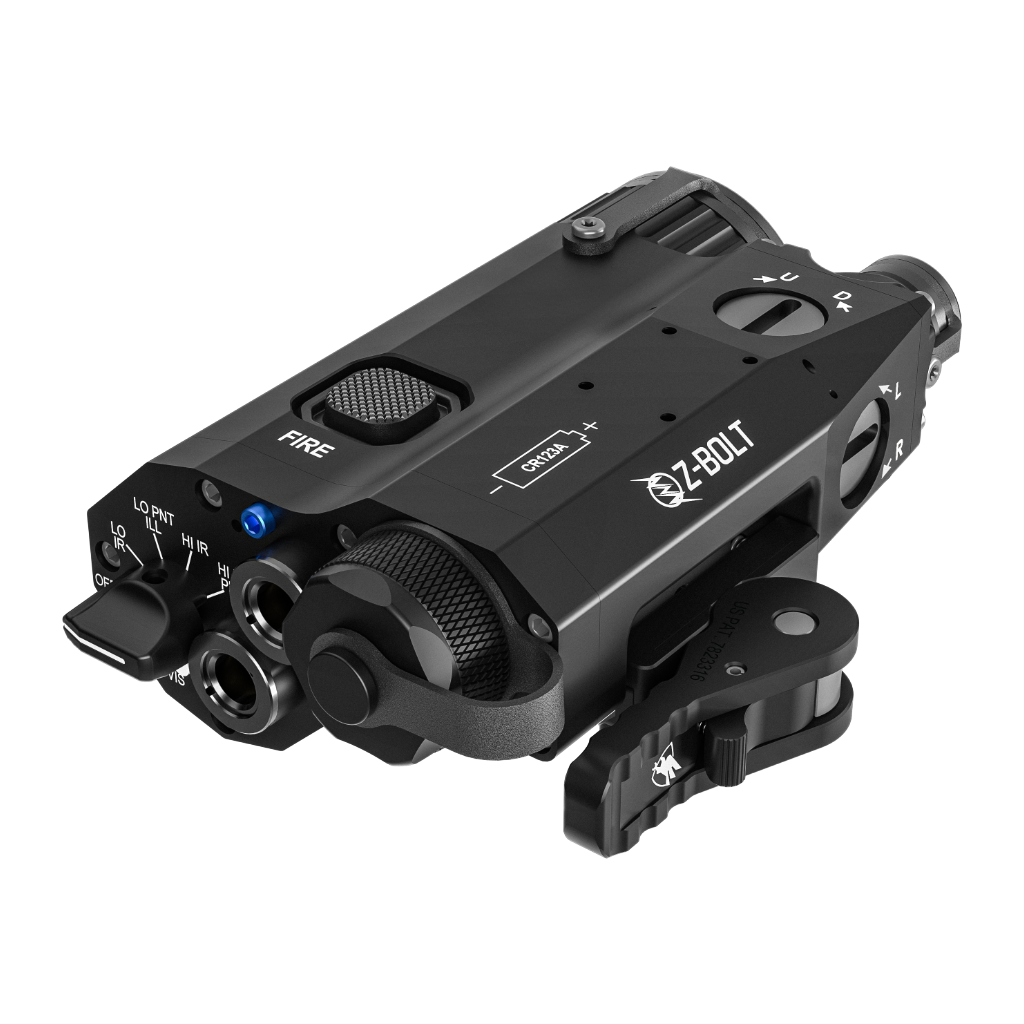

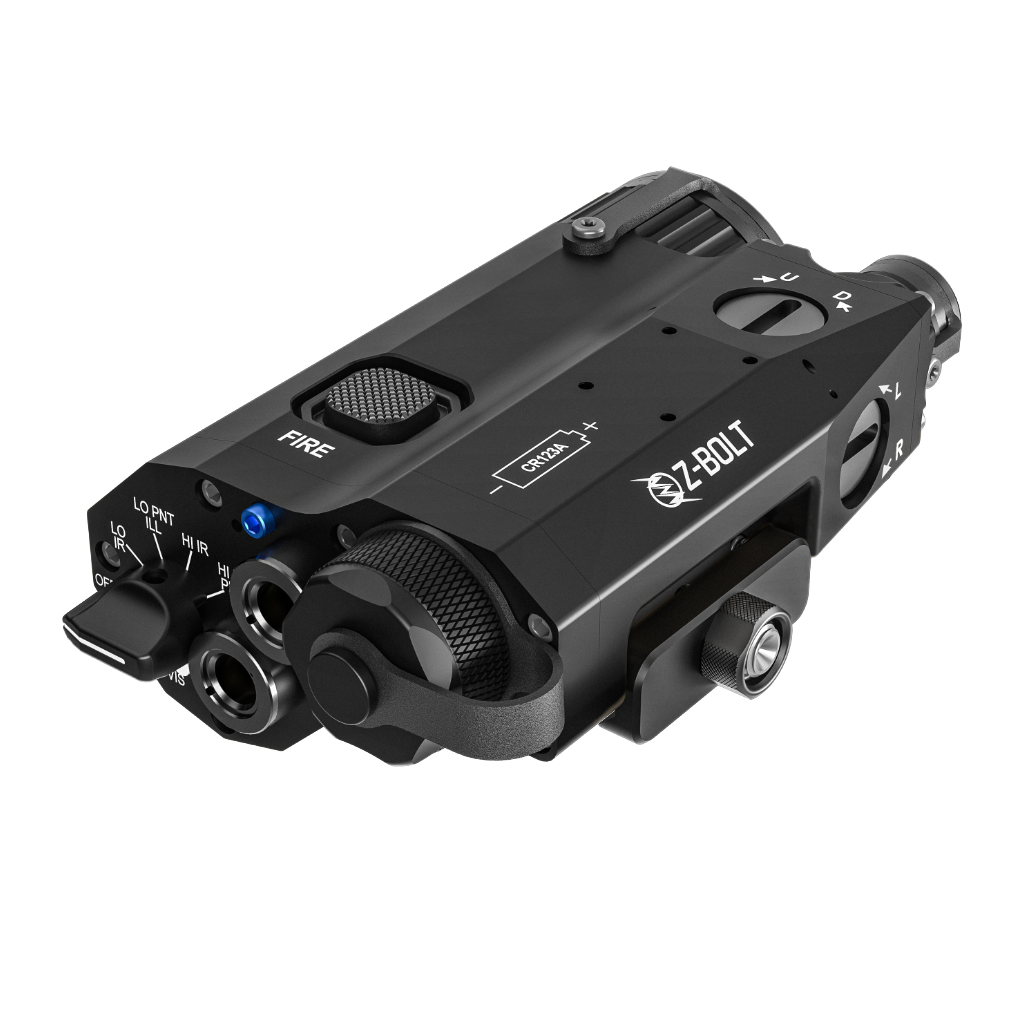

Features & Benefits Standard Lug/Bolt or ADM QD Mount

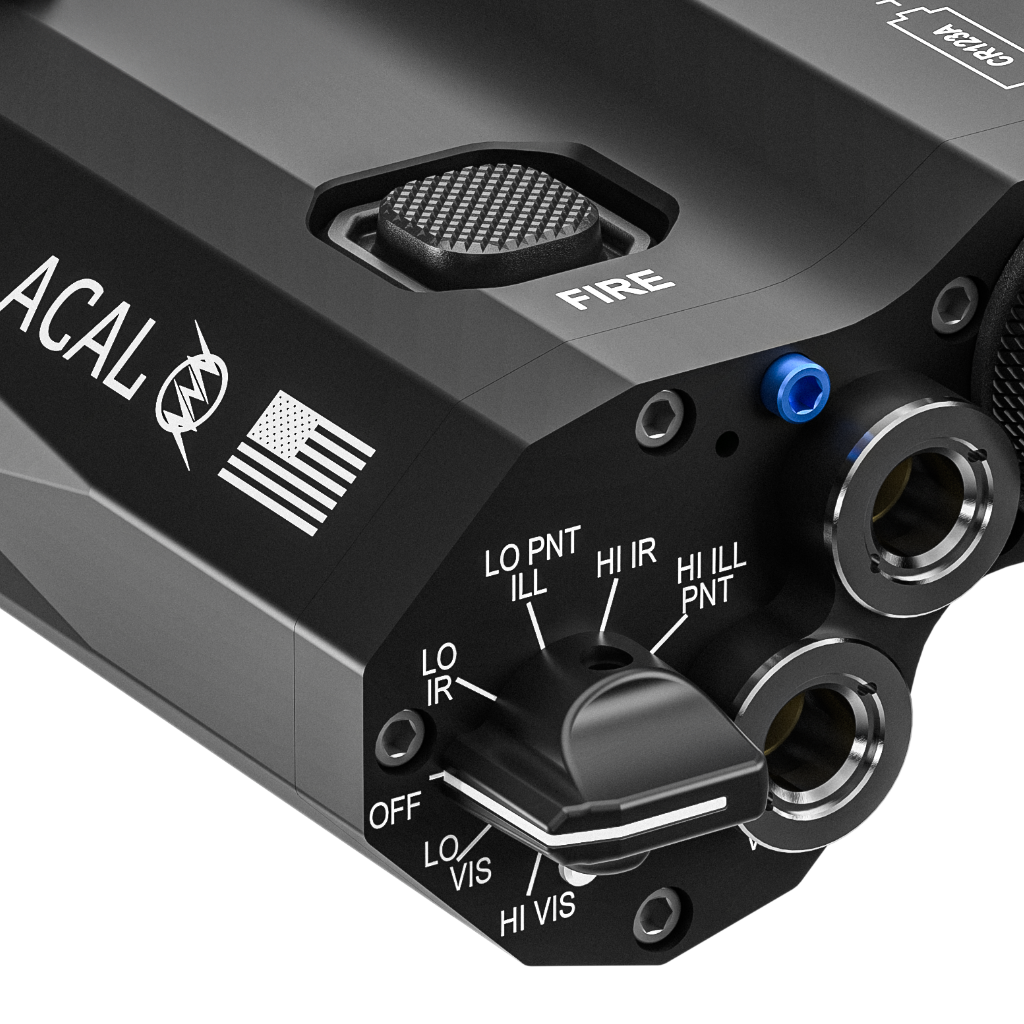

- Easy Swap to ADM QD Throw Lever Mount HI/LO Settings for VIS/IR Infrared Illuminators
Dual Crane Ports - Remote Fire & Visible Override
VIS & IR Dot Lasers - One Aperture!
- Laser Directly Over Bore
- Low Parallax = Improved Shooting Accuracy

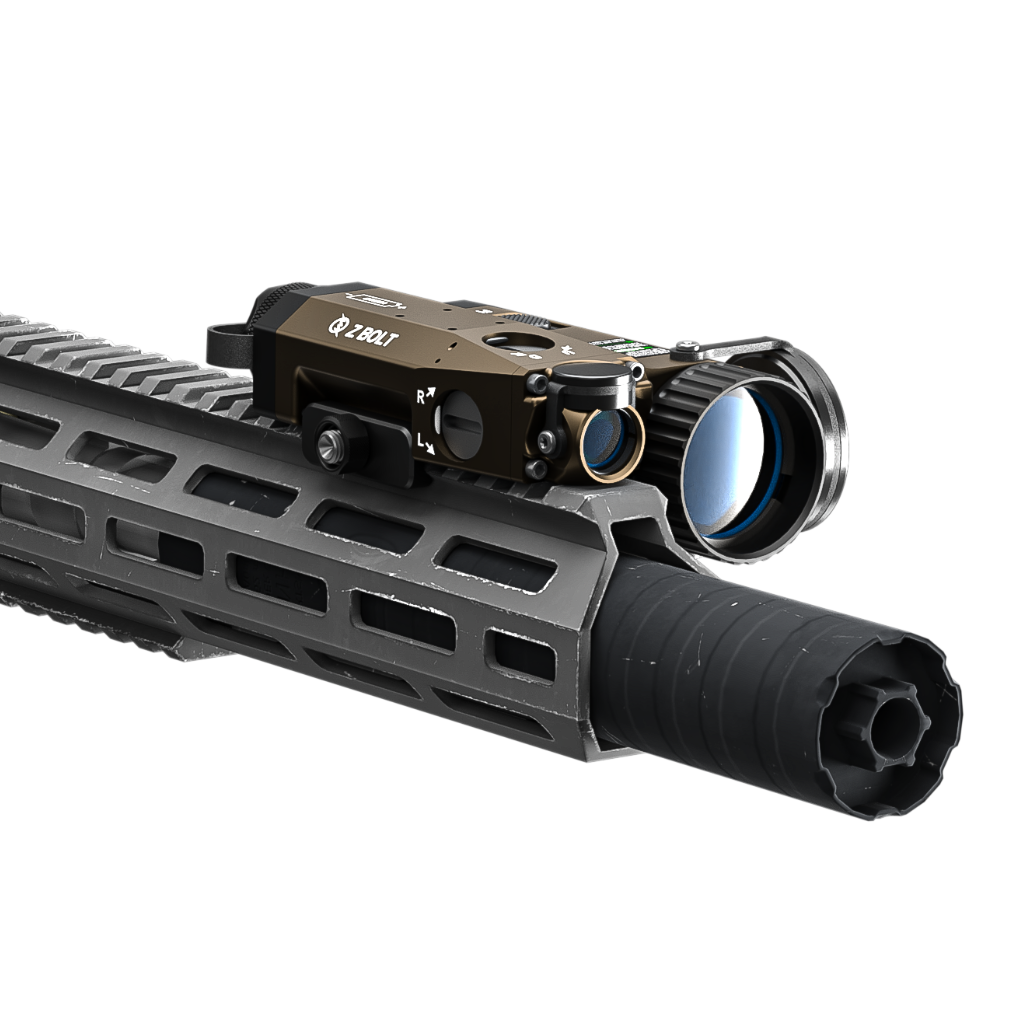

Excellent Optics Clearance
- Mounts < 1" Over Picatinny Rail
- Illuminator "Saddle Bagged" for Button Access

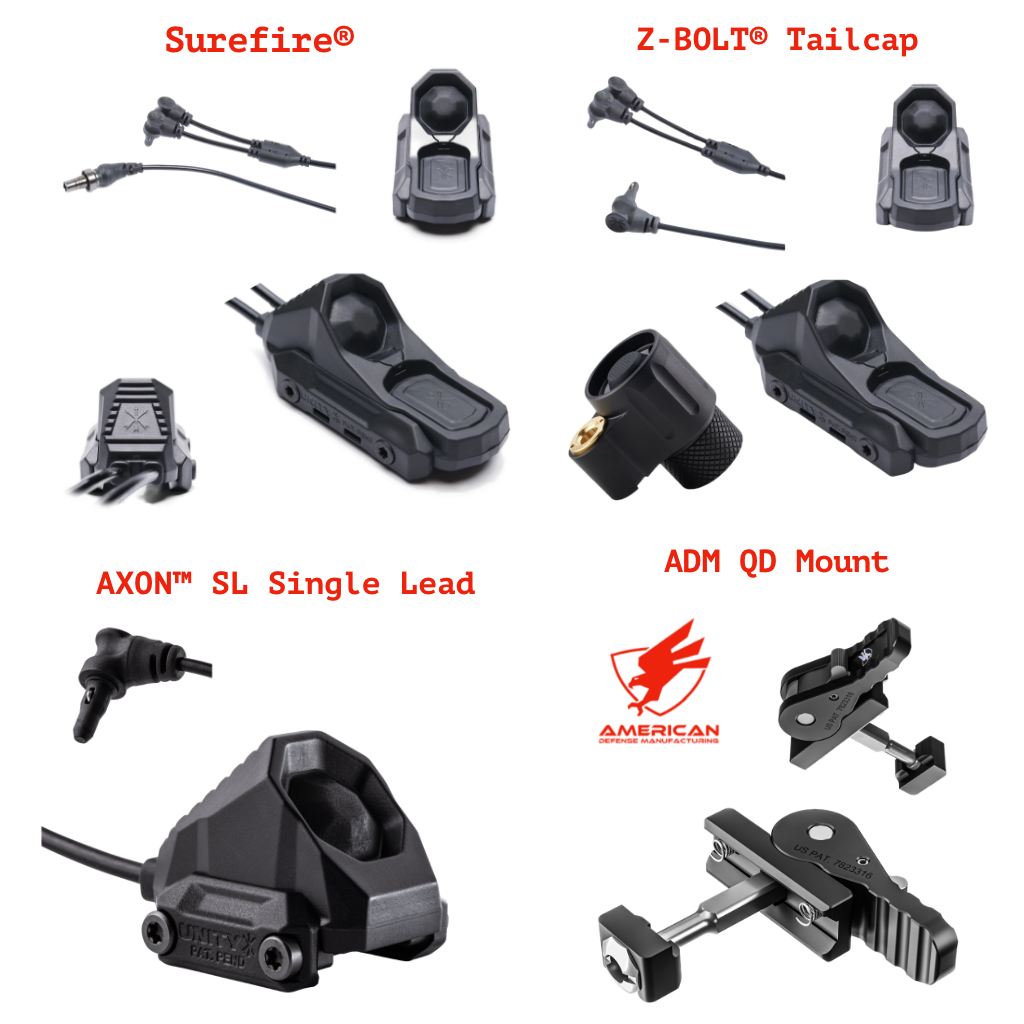

Optional Accessories
- Z-BOLT® Tethered Diffuser for CQB

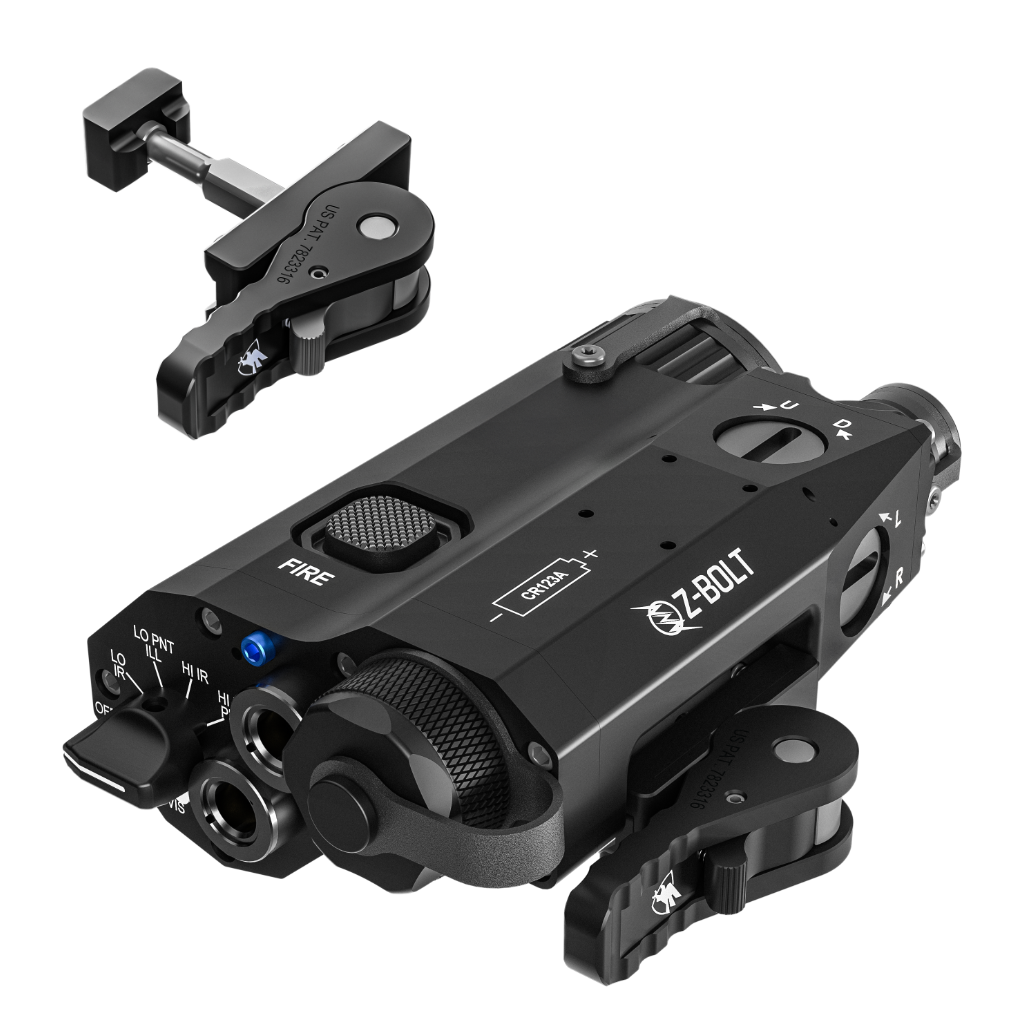

- ADM Quick Detach Lever Assembly
- Unity AXON™ SL & AXON™ Switches
- AXON™ DBAL/ACAL for VIS Override Port
LASER & ILLUMINATOR - TYPE
- IR Laser: 50mW: FDA Class 3B
- Green Laser: 50mW: FDA Class 3B
- IR VCSEL Illuminator: 400mW Class 3B
POWER OUTPUT (HI/LO)
- IR Laser: 50mW / 0.7mW
- Visible Green Laser: 50mW / 5mW
- IR VCSEL Illuminator: 400mW / 15mW
WAVELENGTH
- IR Laser: 850nm
- Visible Green Laser: 525nm
- IR VCSEL Illuminator: 850nm
BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR VCSEL Illuminator: 4° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad (ACAL-RV3)
RANGE & VISIBILITY
- IR Laser: 2000m
- Visible Green Laser: 2000m
- IR VCSEL Illuminator: 3500m
OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR VCSEL Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C
BATTERY & RUNTIME
- 1 pc CR123A Lithium
- 4 Hours - Tactical Use - Mode Dependent
ACAL-GL3 HOUSING
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hardcoat Anodized
WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm
ENVIRONMENTAL
- MIL-STD-810 & IP68
- Waterproof to 5 Meters
RESTRICTED – U.S. Government Sales Only High Power Class 3B Laser Illuminators are restricted to Law Enforcement and Government sales only and cannot be sold to civilians. Purchase of IR Laser equipment can only occur at the Department, Agency, or Unit level. IR Lasers cannot be sold to individual Law Enforcement, Military, Government, or Contractor personnel. If you are a government employee and would like to purchase a high power laser, you must have your agency place the order for you. ACAL units must be shipped to agency or department addresses. ONLY.
ITAR Restrictions
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
