Product Details
1 pc Job-Sight Green Laser OR
1 pc Job-Sight Extreme Temperature
1 pc Retractable Gear Cable Tether

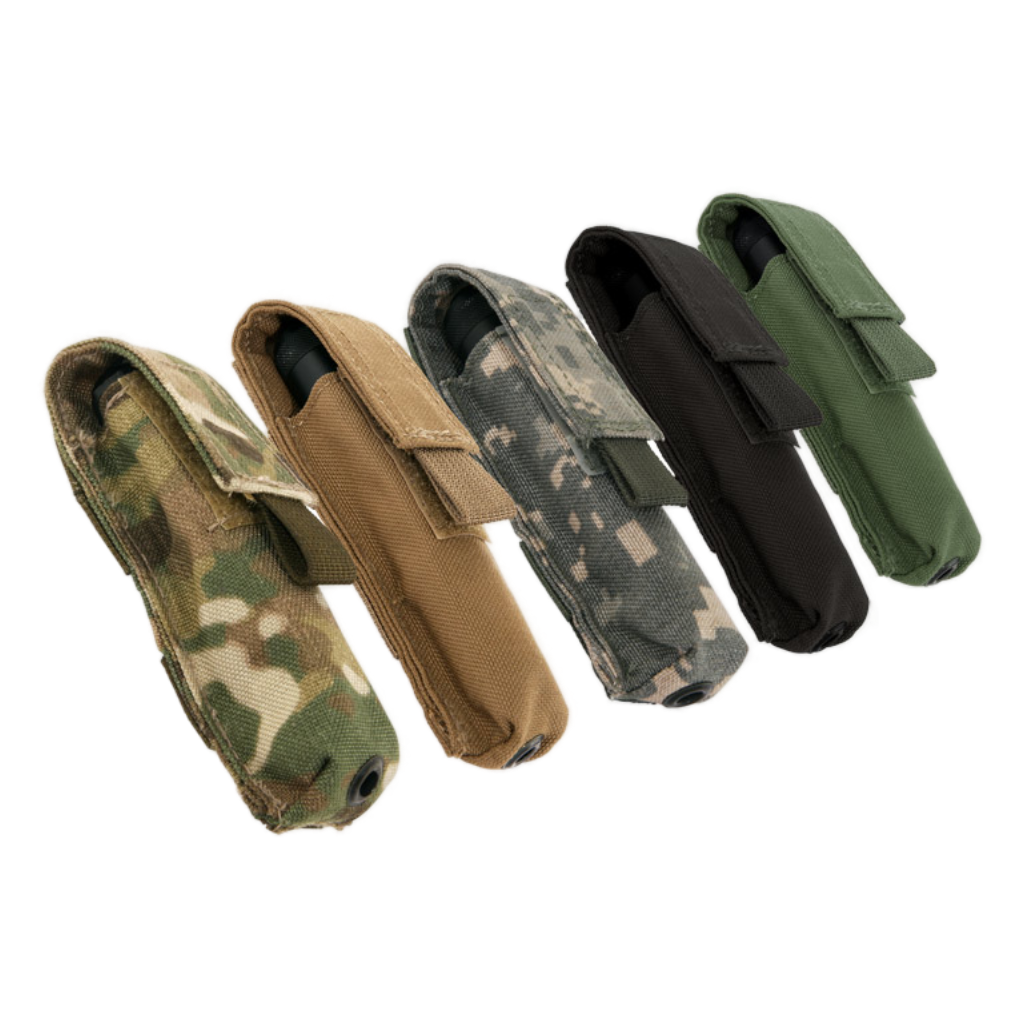

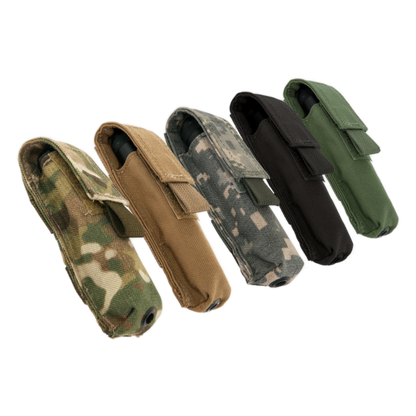

1 pc MOLLE Pouch - Choose NYLON Fabric:
Coyote Brown; Multicam; Ranger Green, Black; ACU
2 pc CR123A Lithium Metal Batteries

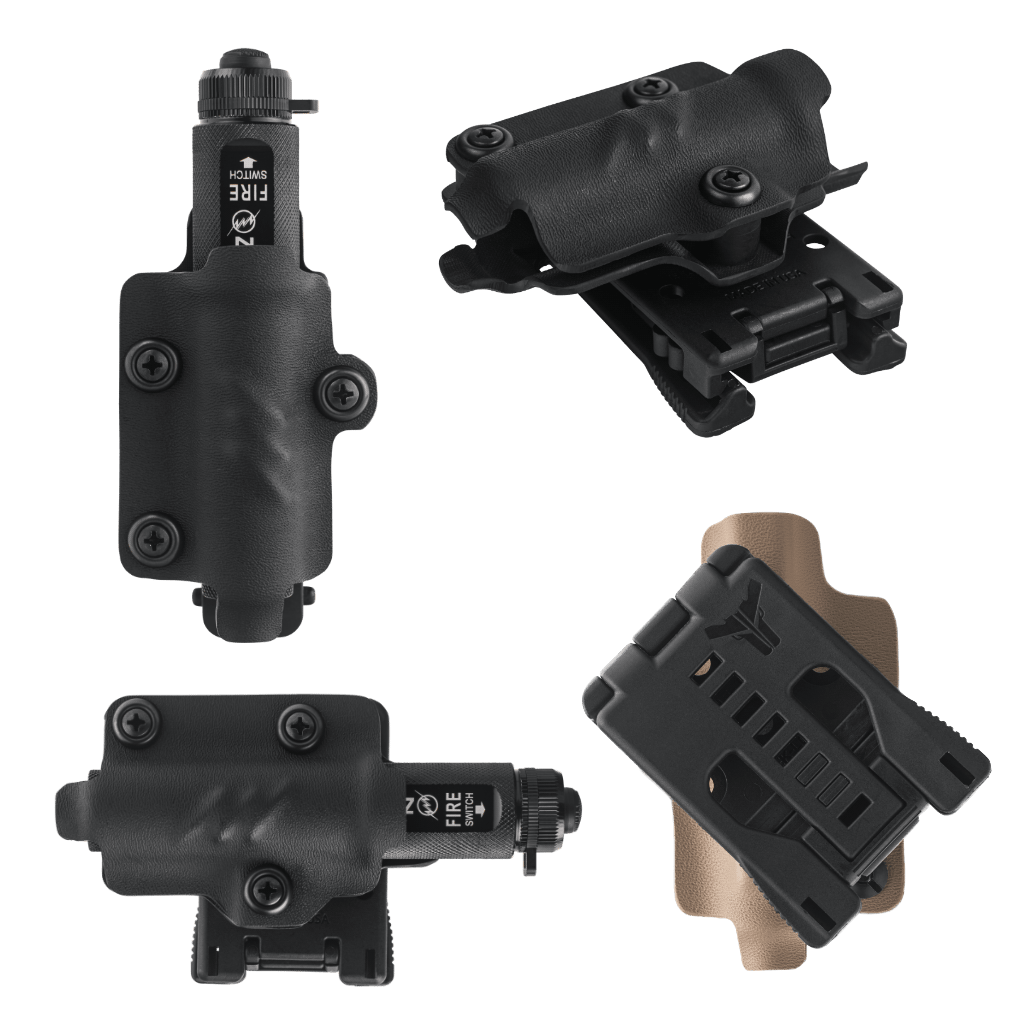

ADD KYDEX HOLSTERS!
Choose FDE or BLACK

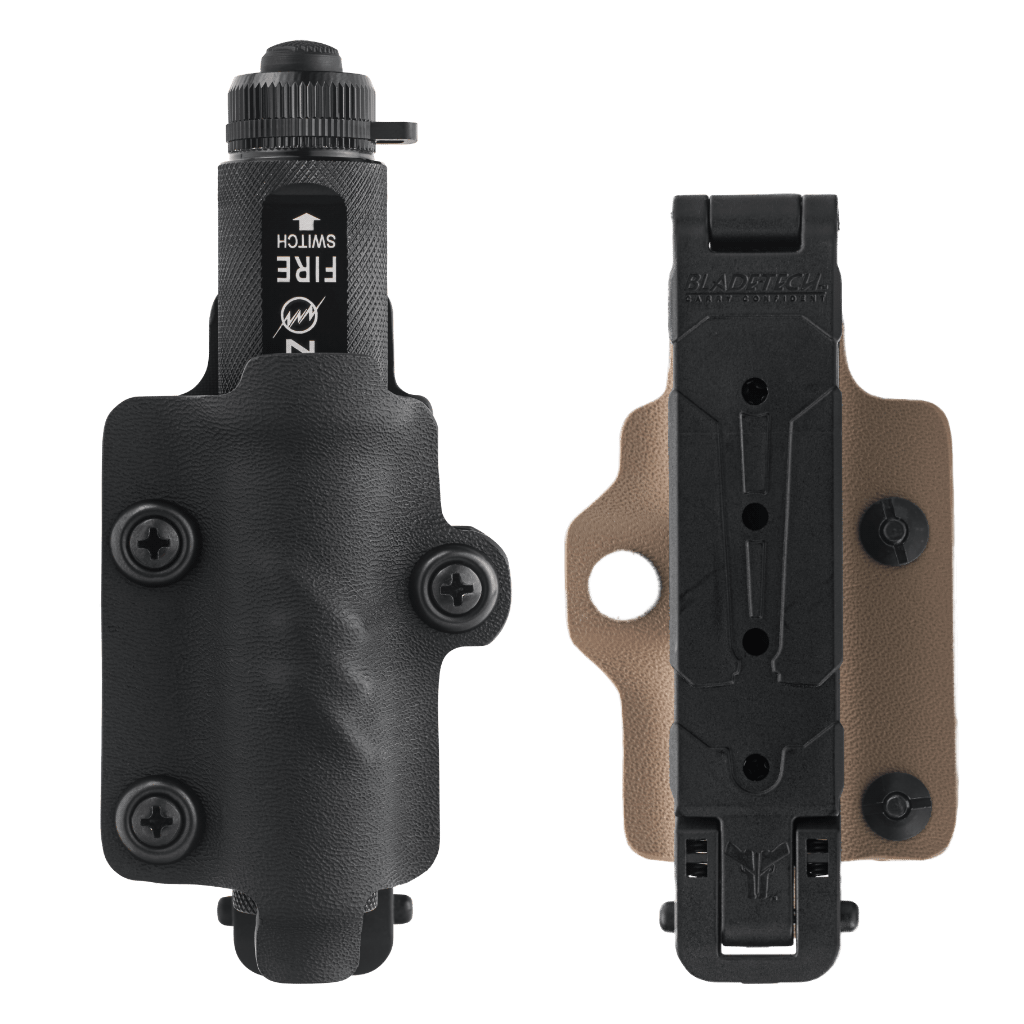

Choose MOLLE or Tek-Lok Mount (BELT)
Tek-Lok (BELT) Mount User Adjustable 0°, 45°, 90°
Upgrade to Low Temp 14°F XT
Water, Drop, Dust, Shock Resistant
Green Laser For Construction & Job Site Management
The Z-Bolt® Job-Sight is built for extreme duty. The laser diode and battery compartment are protected by double o-ring seals; circuit board is encased (epoxy resin) in a protective collar to prevent damage by vibration, accidental dropping, etc. Water & dust proof; shock & vibration resistant; rugged & reliable. The Job-Sight (JS-5) is constructed of high quality aircraft grade anodized aluminum for a lifetime of nicks and scratches. Ships with Black Nylon Carry Pouch; GearKeeper Retractable Cable Tether with Velcro Mount Strap; 2 pcs CR123A batteries.
Z-Bolt® Certified - Power Output Cards
The JS-5 features guaranteed Z-Bolt® Certified Power for the brightest possible daylight dot; most visible nighttime beam. Each Z-Bolt® Certified Power green laser pointer is factory tuned & calibrated, then tested & certified on a laser power meter. These Certified Power units are rated at 4.0 to 5.0 mW power output and are 2 to 3 times brighter than standard Class IIIa units - all ship with our exclusive Laser Power Output Certificates.
Special APC Circuit and IR Filter for Eye Safety
The JS-5 includes our special APC control circuit and includes an IR filter for eye and viewing safety. This computerized APC diode drive circuit features "Automatic Power Control". The advanced circuit is based on a photo diode feedback loop. The photo diode monitors the optical output and provides a control signal for the laser diode, helping to maintain the diode operation at a constant optical output level. The circuit adds to the lifetime of the laser, prevents overheating, and provides overall power output stability & efficiency.
Specifications
FEATURES:
98% IR Filtering & Glass Focusing Lens (Not Plastic)
Battery Life - Six (6) Hours Constant On Operation
6061 Series Aircraft Grade Aluminum Alloy
Computerized APC Diode Control Circuit
Water, Dust, & Shock Resistant
Constant On/Off Click Switch

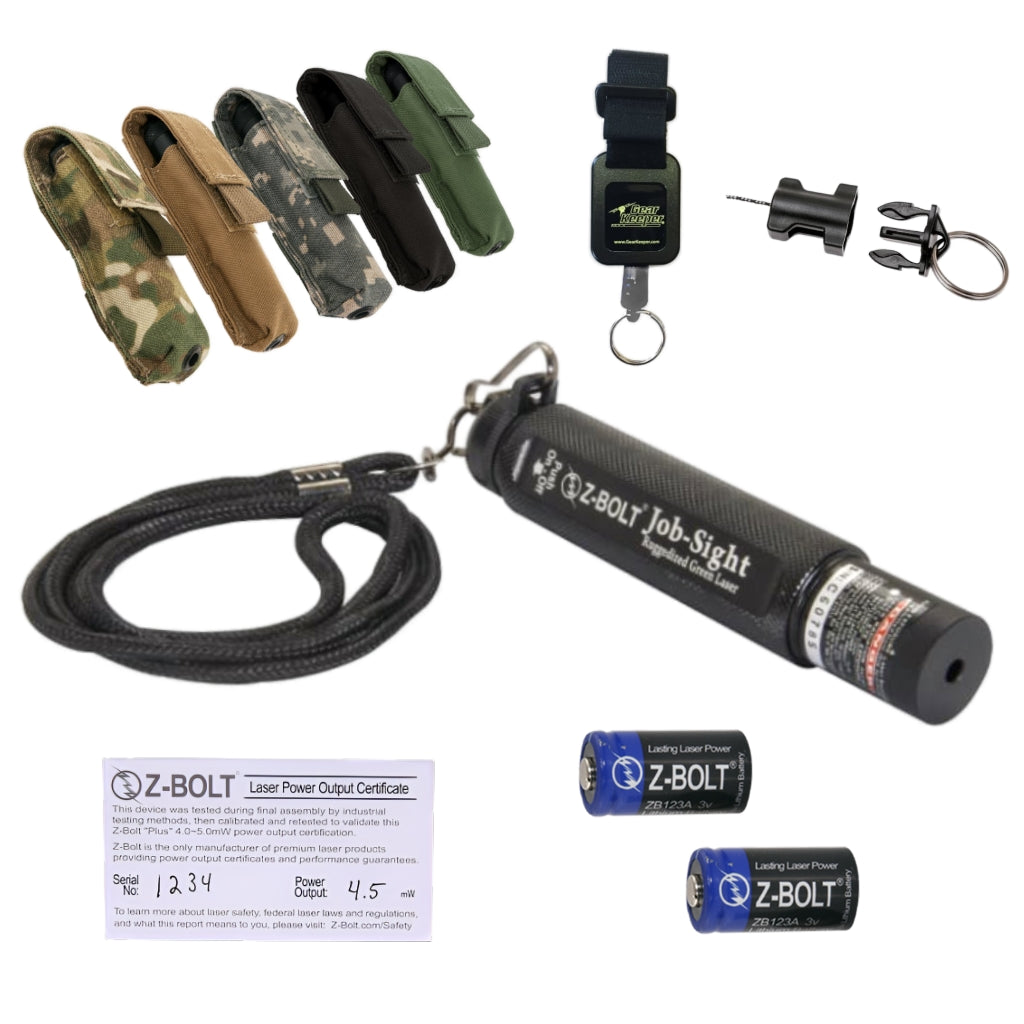

BOX CONTENTS:
1 pc Job-Sight Green Laser for Extreme Duty
(Standard or Extreme Temp)
1 pc GearKeeper Retractable Cable Tether
1 pc Nylon "Ribbon" Lanyard
1 pc Nylon Rope Lanyard
2 pcs CR123A Lithium Batts
User Guide & Specification Card
Laser Power Output Certificate
SPECIFICATIONS:
Length 126mm. x Diameter 25.4 mm
Wavelength (Color) - 532 nm (Emerald Green)
Output Power - Z-Bolt® Certified 4.0~5.0 mW
Diode Operating Life - 3,000 to 5,000 hours
Diode Circuit Type - Computerized APC
Beam Diameter at Source - 1.1 mm
Output Mode - Constant Wave
Range ( Night ) - 5 Miles
FDA Safety Class - IIIa
ANSI Safety Class - 3R
Warranty - 2 Years
