DPSS-5M, 8 mm

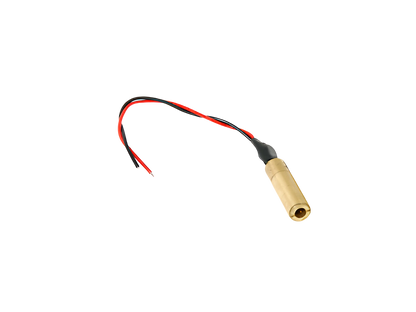

This DPSS-5M green laser module includes wire leads and a standard dot for precise targeting and easy installation. With a diameter of 8 mm, it offers a powerful and reliable laser beam for industrial and scientific applications. Upgrade your equipment with this high-quality laser module.

Z-Bolt® DPSS-5M

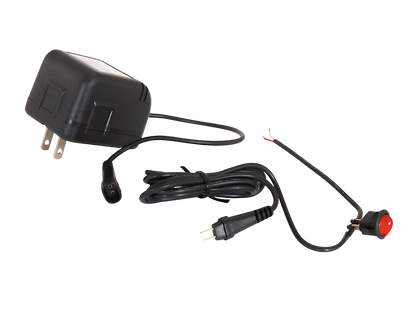

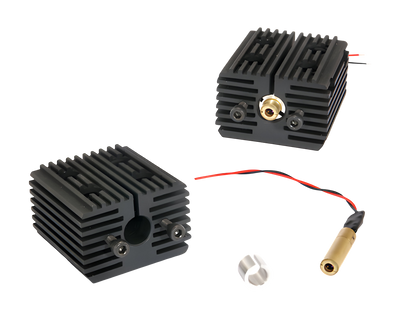

The Z-Bolt® DPSS-5M features the new, computerized APC (automatic power control) circuit for power output stability. Requires 3 V AC or DC power supply (not included). Add the HS-1m Heat Sink and Adapter (see below) for constant on use to mitigate overheating. The DPSS-5M features an 8 mm diameter casing and is factory tested and tuned to lase at a guaranteed output of 4.0 to 5.0 mW. The brightest module available for consumer, retail public use. Economically priced for lab experimentation; as a component in new product designs; for the laser professional or hobbyist. Miniature size for a smaller footprint. Smallest green laser module on market.

Guaranteed Z-Bolt® Certified Power !

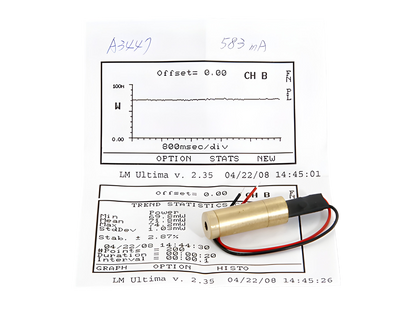

Our Z-Bolt® Certified selection of green laser modules push the power envelope and are the brightest, most visible green laser modules allowed by FDA law. Each Z-Bolt® Certified power green module is factory tuned and tested on a laser power meter. These Certified power units are rated at 4.0 to 5.0 mW power output and are 2 to 3 times brighter than stock Class IIIa units ( 1.5 ~ 4.0 mW ). The result is dazzling, green laser brilliance. Guaranteed !

Z-Bolt® DPSS-5M Technical Specifications

Wavelength (Color) - 532 nm (Green)
Output Power - Z-Bolt® Certified 4.0 ~ 5.0 mW
Output Mode - Constant Wave
Beam Diameter at Source - 1.5 mm
Beam Divergence - < 1.2mrad
Diode Circuit Type - Computerized APC
Optimum Operating Temp - 15C° ~ 35C°
Operating Voltage - 3VDC
Current Draw - < 300 mA
FDA Safety Class - Class IIIa
Product Warranty - 2 Years
