Product Details

Civilian LEGAL

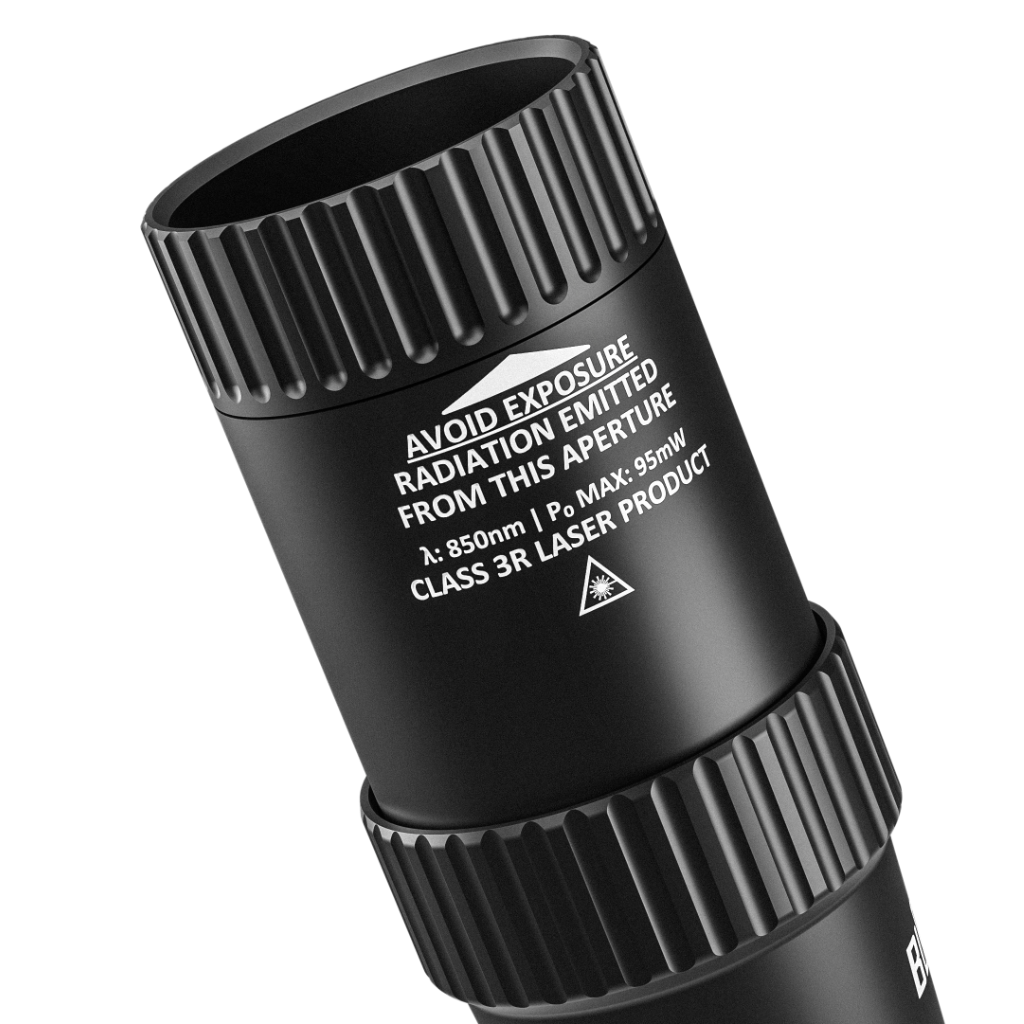

Class 3R - VCSEL (<95mW)

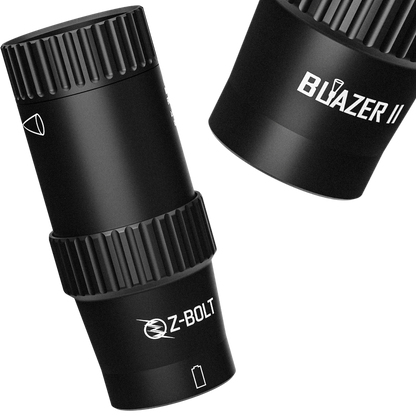

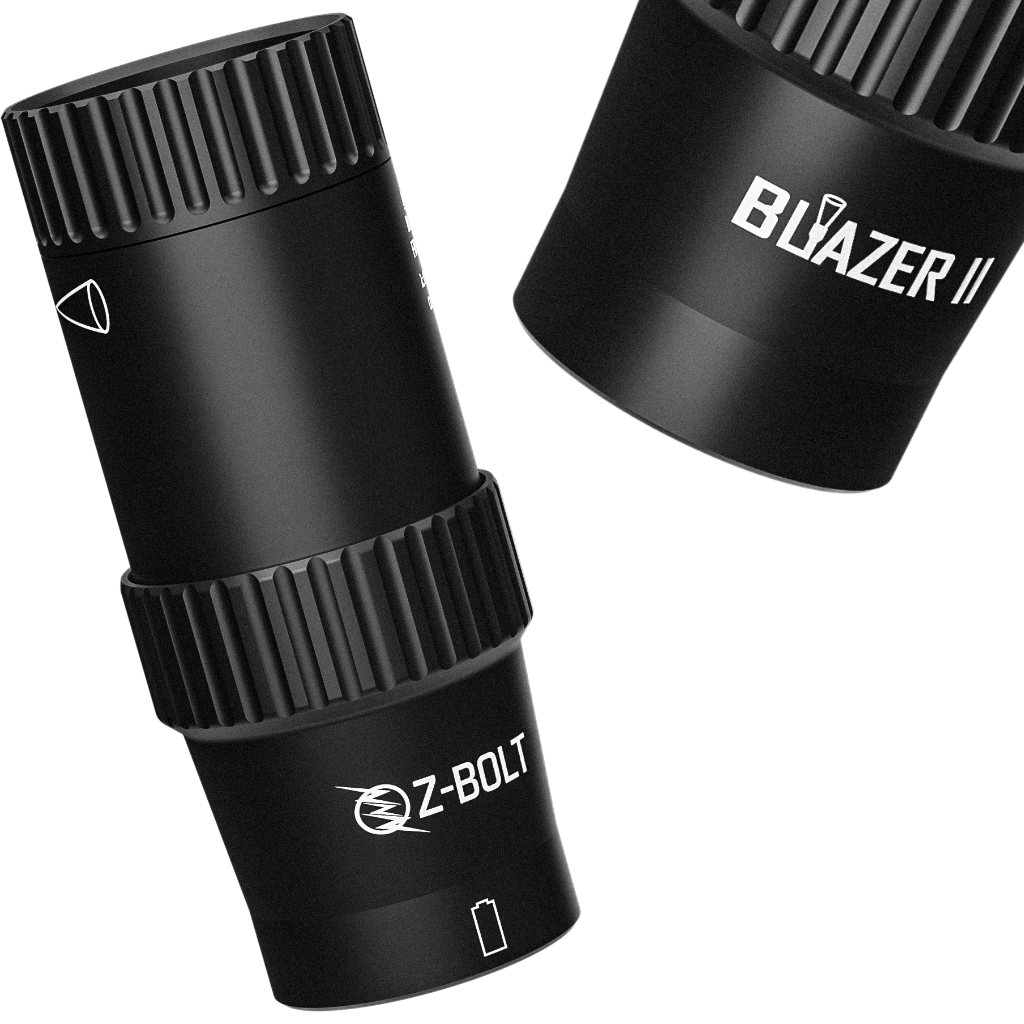

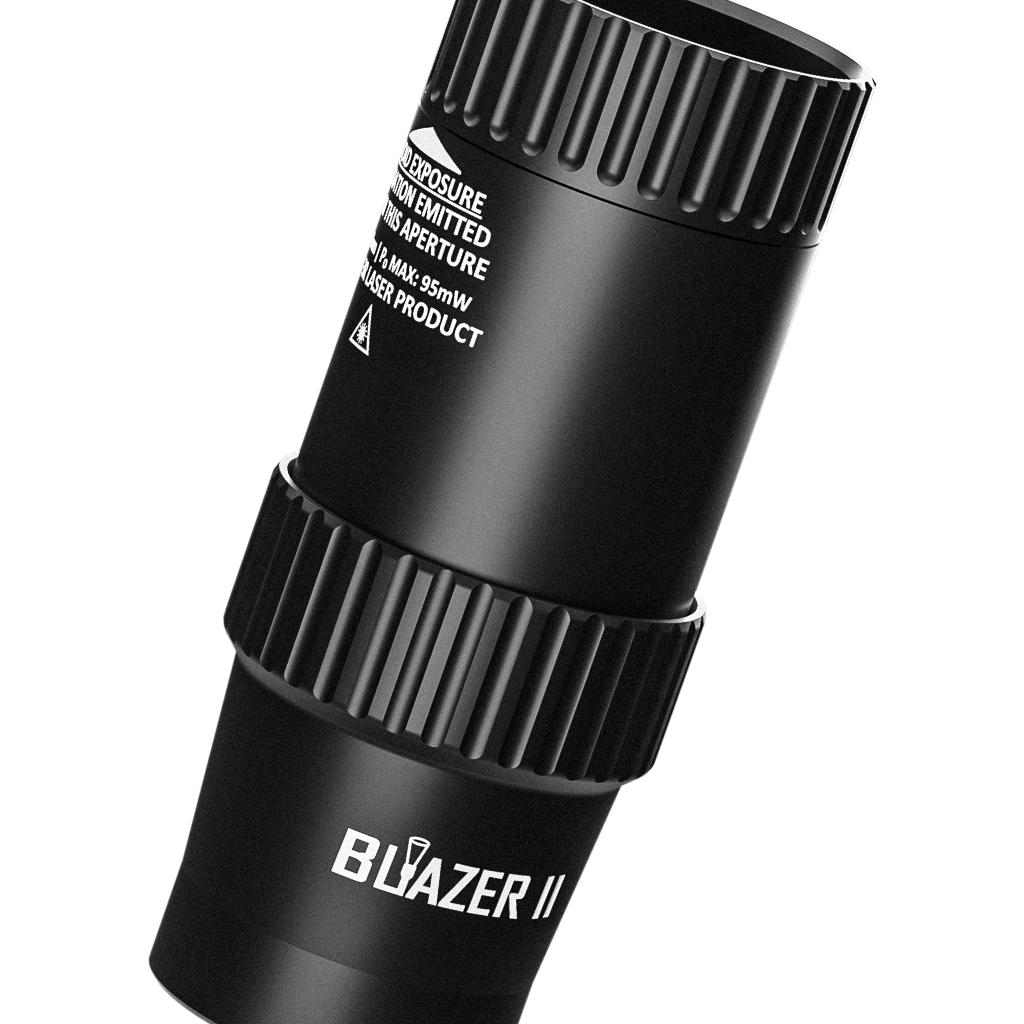

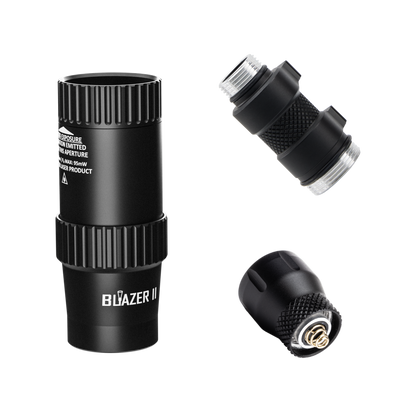

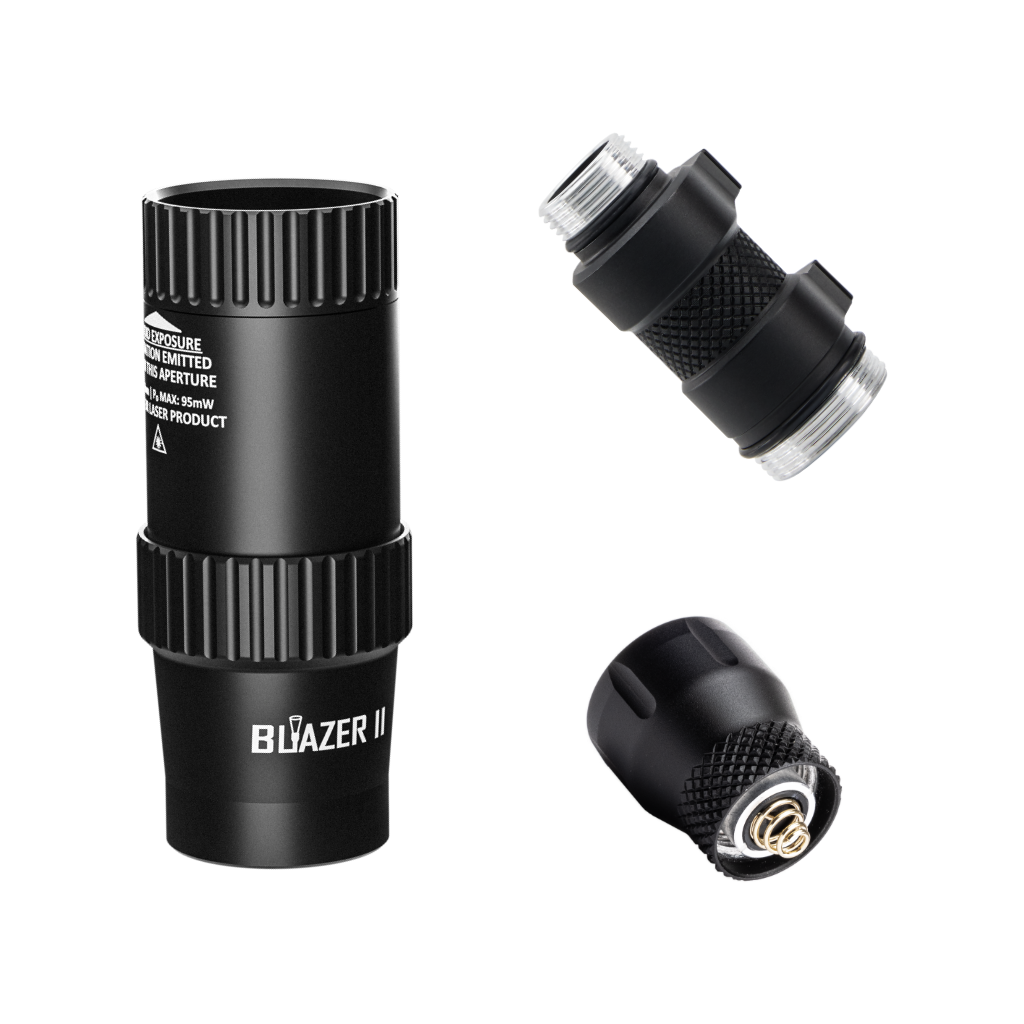

BLAZER II Infrared Illuminator Head

Auto Power Scaling [Pat. Pending]
Introducing Z-BOLT® Auto Power Scaling™ technology! FDA laser regulations require manufacturers to “throttle” the power output of VCSEL laser chips, so as to meet the particular Class 3R (civilian legal, <1.95mW) or Class 3B (<500mW) FDA laser safety classifications. Laser power meter results for Class 3R illuminators must not exceed 1.95mW when the device is tested (fixed angle - directed at a 7mm sensor @ 10cm). Z-BOLT® Auto Power Scaling™ technology offers the highest possible LEGAL output power for a given beam angle setting - the telescopic adjustment bezel providing the end user with beam angle dependent power control.  Where previous 3R VCSEL illuminators fall short (increased angle beam settings where the IR light fails in wide area illumination), the BLAZER II & ACAL units maintain the maximum permissible power based on the product's FDA classification. Available in both Class 3R (<95mW) Class 3B (150mW~400mW) VCSEL configurations.

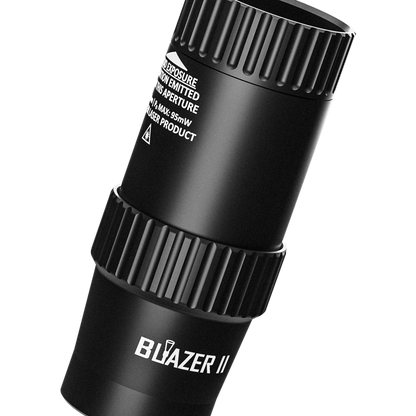

The new BLAZER II VCSEL 3R illuminator features a telescopic dual lens optics assembly; variable zoom 4° to 25° functionality; is constructed of aircraft grade aluminum; has a fully potted LED chip to withstand shock & recoil; a brass threaded insert for "buttery" smooth interface with third party light bodies; and MIL-STD-810 & IP68 environmental performance.

FEATURES:
* NOHD = 0.37 meters
* 1000 Meter Beam Throws
* CIV Legal VCSEL IR Illuminator
* Auto Power Scaling [Pat. Pending]
* VCSEL Illuminator, 850nm, IP68
* Head Fits Surefire® M600DF/M640DF
* Fits Modlite 18350 & 18650 Light Bodies
* Fits Z-BOLT® & Arisaka 18350/18650 Light Bodies

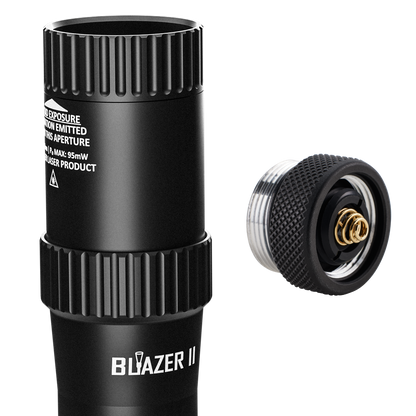

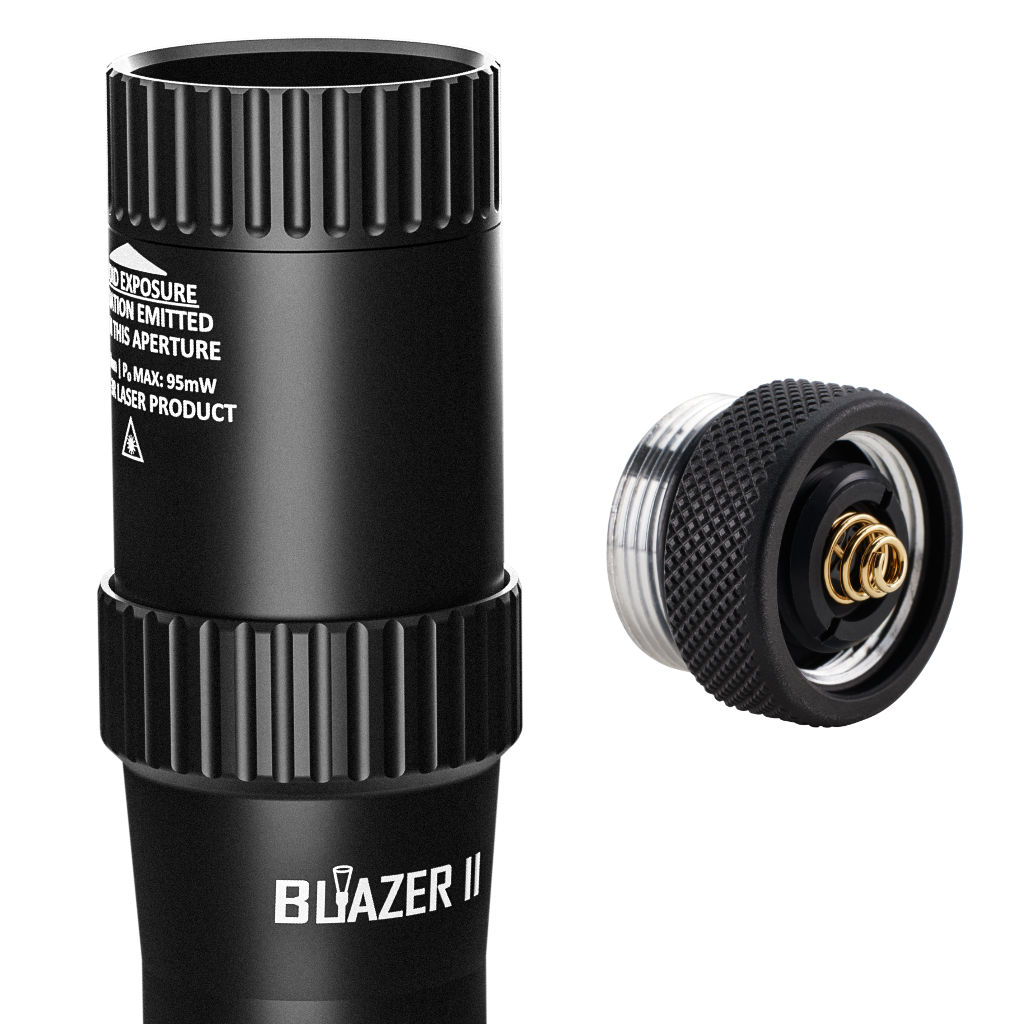

* With Adapter - Arisaka 300/600, Surefire® M300/M600
* Variable Zoom 4° to 25° Telescopic Lens System
* Focused Wide Area Flood for Mid-Range or CQB

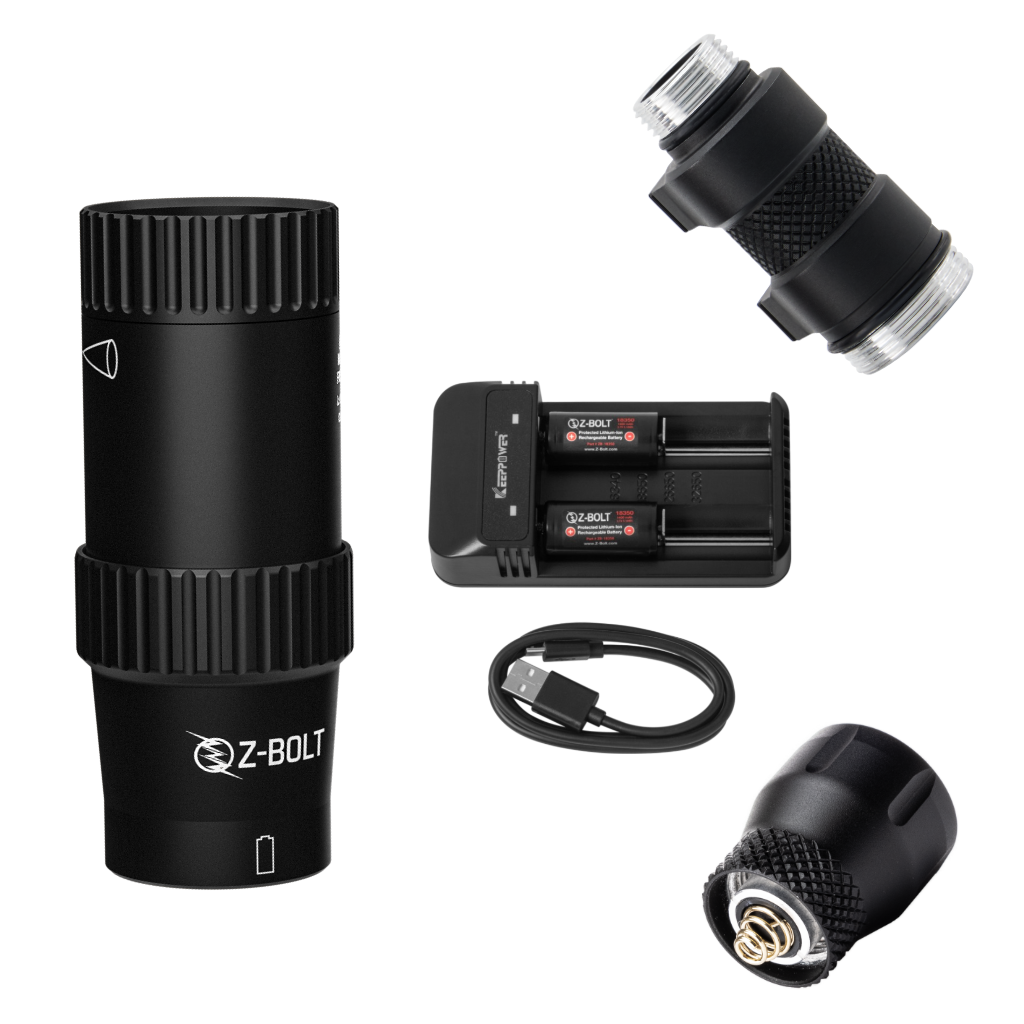

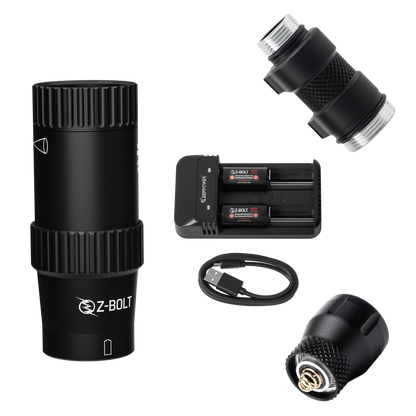

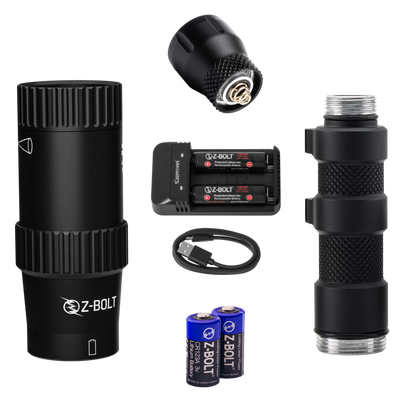

* Multiple Battery Options - Rechargeable 18350 & 18650
* Multiple Battery Options - CR123A, 16650 with Z-BOLT® Adapter

Specifications

BATTERY & BATTERY LIFE:
1 pc CR123A 5.5 hrs
1 pc 18350 14 hrs
1 pc 16650 14 hrs
1 pc 18650 20 hrs
2 pc CR123A 20 hrs

DIMENSIONS - WEIGHT:
H 3.50 in x W 1.50 in
H 89 mm x W 38 mm
4.5oz. / 127 Grams

ENVIRONMENTAL:
Rating IP68
Waterproof to 5 Meters
