Vendor:Z-BOLT® Electro-Optics

BUNDLE! VIS Override Package - 150mW VCSEL with Rifle Mounted Light [LE]

Sale price$2,195.00Regular price $2,595.00
Shipping calculated at checkout.
LED Rifle Light
LED Rifle Light: 18350
Mount Type - Overbore or Meteorite
Mount Type - Overbore or Meteorite: OB - MLOK

ACAL-GV3-BLK-3B-18350-VOP-OB-MLOK

VIS Override Rifle Package
ACAL, Advanced Co-Located Aiming Laser
Best in Class 150mW VCSEL Infrared Illuminator with advanced co-located laser and illuminator optics. Features adjustable focus from 4° to 25°, and improved 60° bezel motion ratio for faster transitions between focus and flood modes. Includes bezel throw lever for quick adjustments in close-quarters scenarios. Dual laser single aperture design positions both systems directly over bore for low parallax and improved shooting accuracy. HI/LO settings optimize performance for visible and infrared modes. Dual Crane ports enable remote fire and visible override capability. Mounts securely with standard lug/bolt configuration or optional ADM Quick Detach lever assembly. Compact profile sits less than 1" above Picatinny rail with saddle-bagged illuminator design for unobstructed button access.

See BELOW for Package Parts List & Box Contents - Sales Restrictions - Features & Benefits - ITAR Statement - Technical Data & Specifications
 ACAL MFAL - User's Manual
ACAL MFAL 3B [LE]  Data Sheet
ACAL MFAL 3B [LE] Product Brief

Pairs well with

Request Agency Quotes, Schedule Device T & E

Please contact us for pricing & availability, for dealers & distributors, or to schedule a demo ACAL to shoot and evaluate. (T & E) Full power Class 3B lasers & IR illuminators are restricted to Law Enforcement and Government sales only and cannot be sold to civilians. Generally, purchase of IR Laser equipment can only occur at the Department, Agency, or Unit level. Purchases made with department funds via department credit card or agency PO recommended. IR Lasers CAN be sold to individual Law Enforcement, Military, Government, or Contractor personnel. If you are a government employee and would like to purchase an IR laser, you must provide your credentials and your department or agency shipping address. All orders with department or individual funds can only be shipped direct to the department, agency, or command. These lasers are regulated by the FDA (Food & Drug Administration). Price inquires must include an email request from an official government or government contractor email address. All ITAR restrictions apply. See ITAR Statement* below . . . .

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

Features & Benefits
Features & Benefits

Box Contents . . .

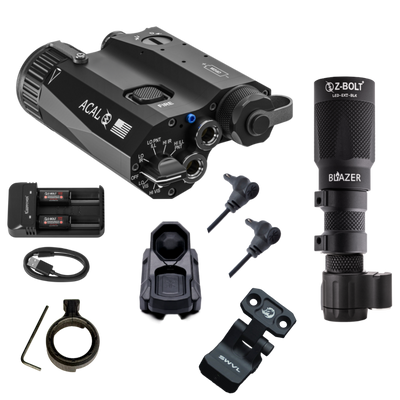

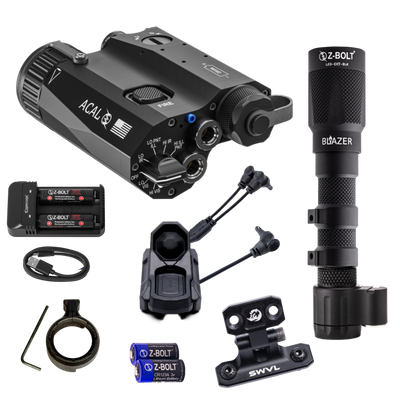

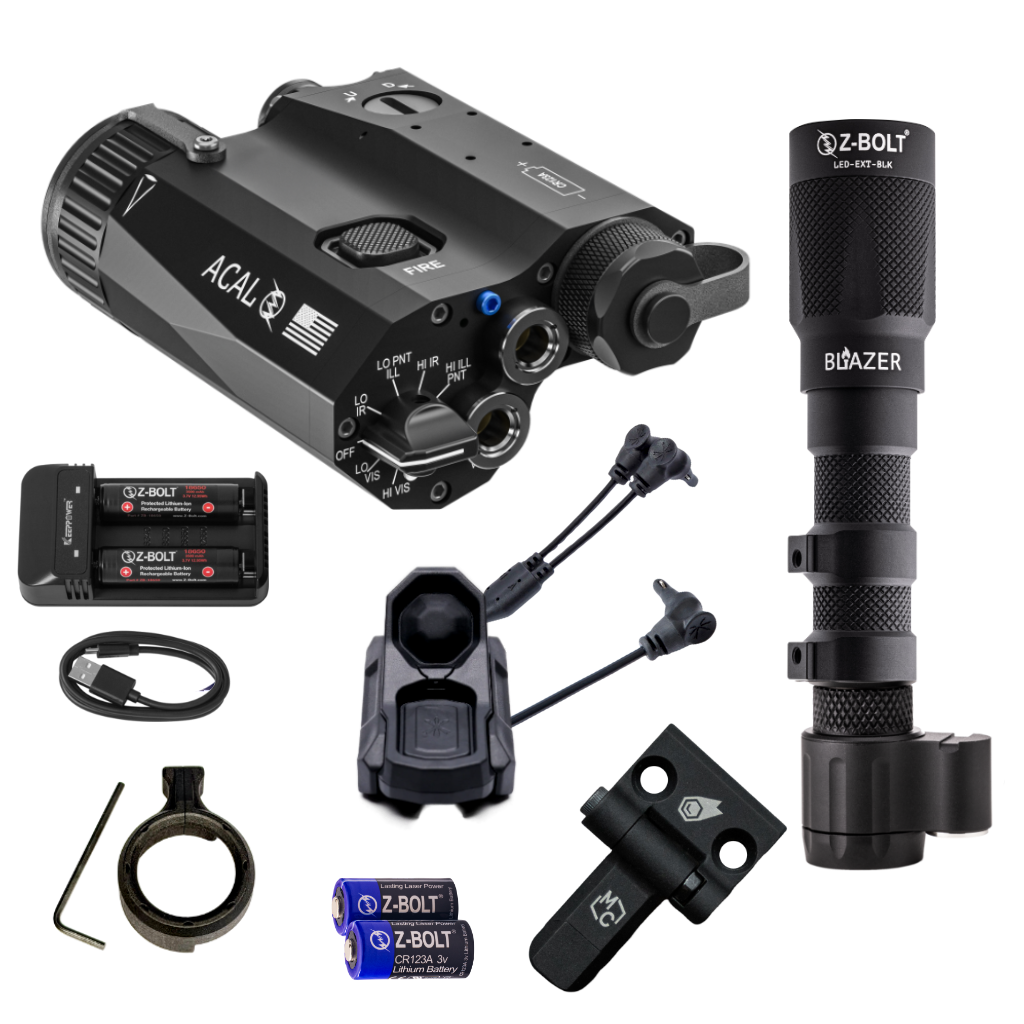

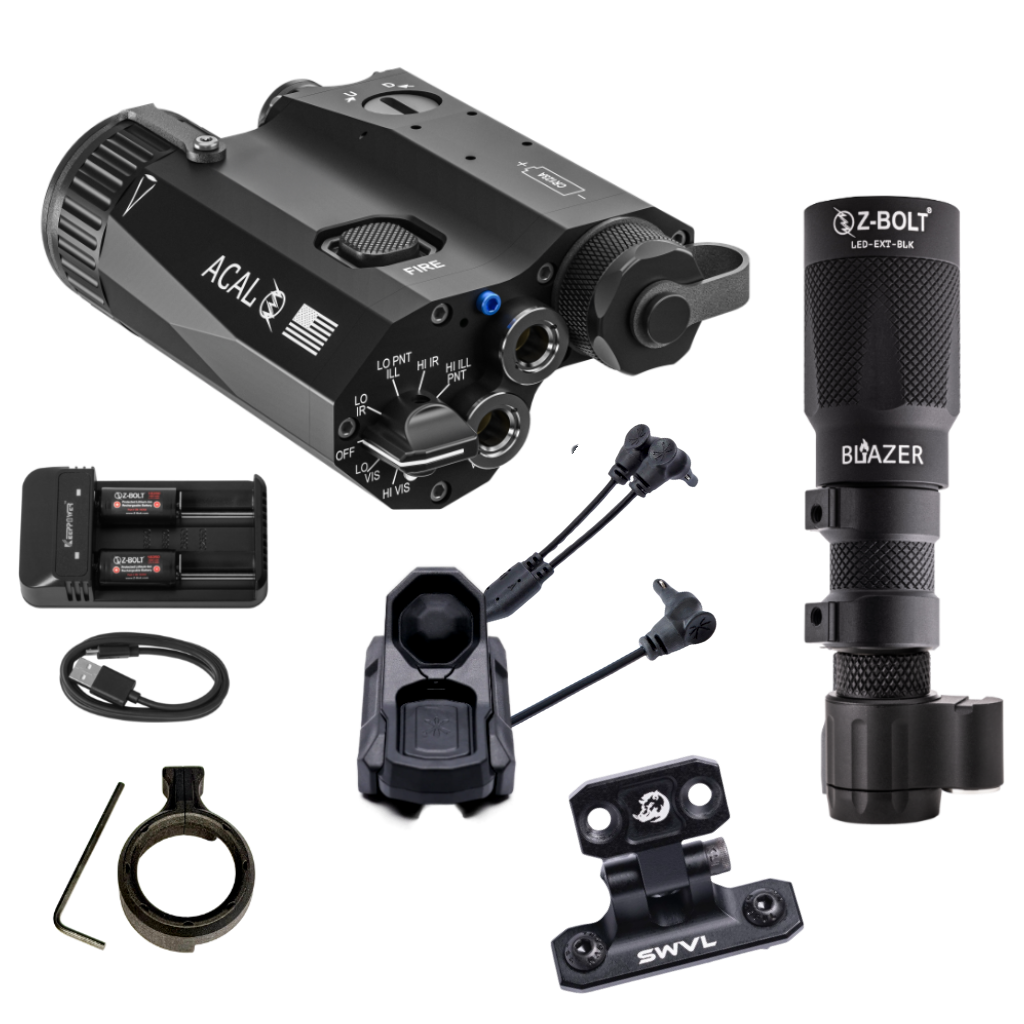

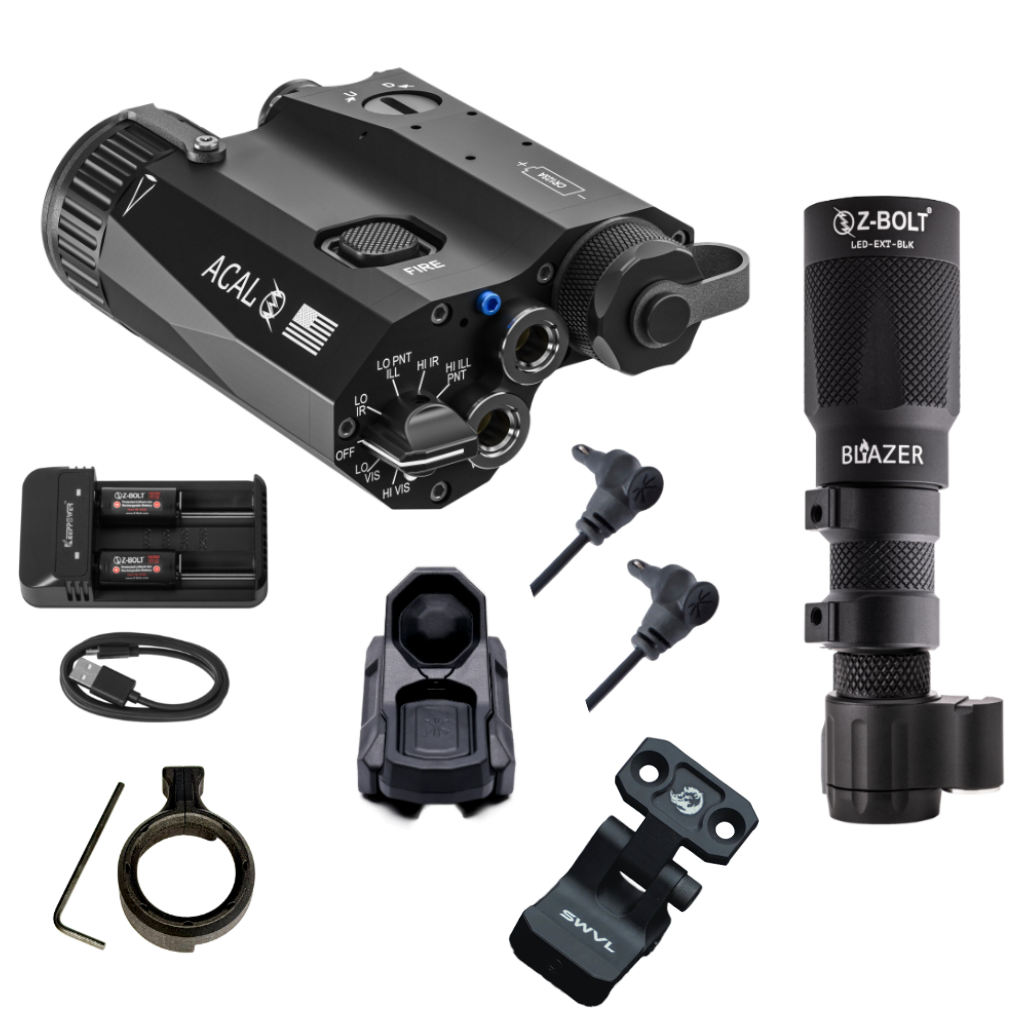

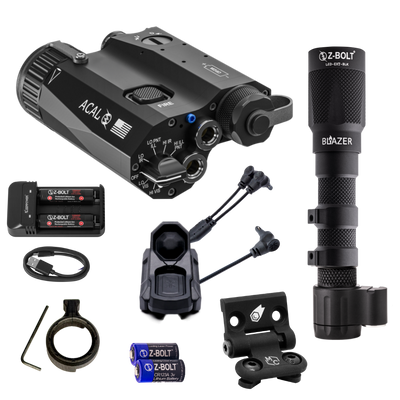

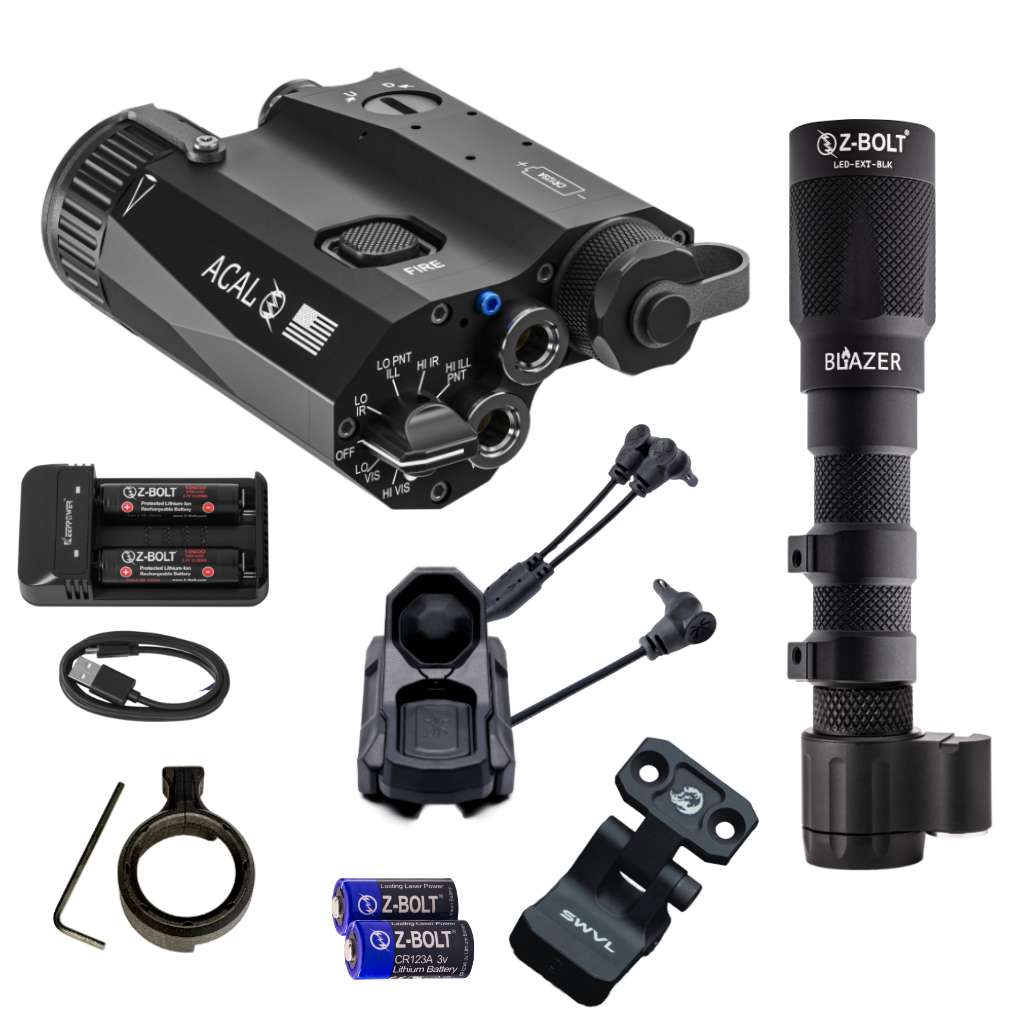

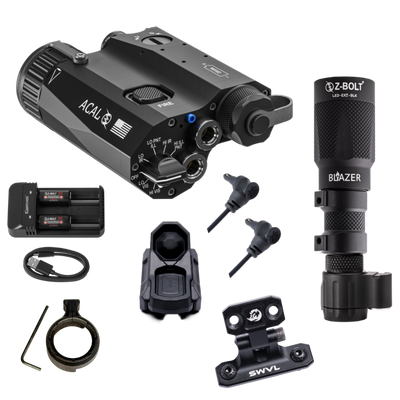

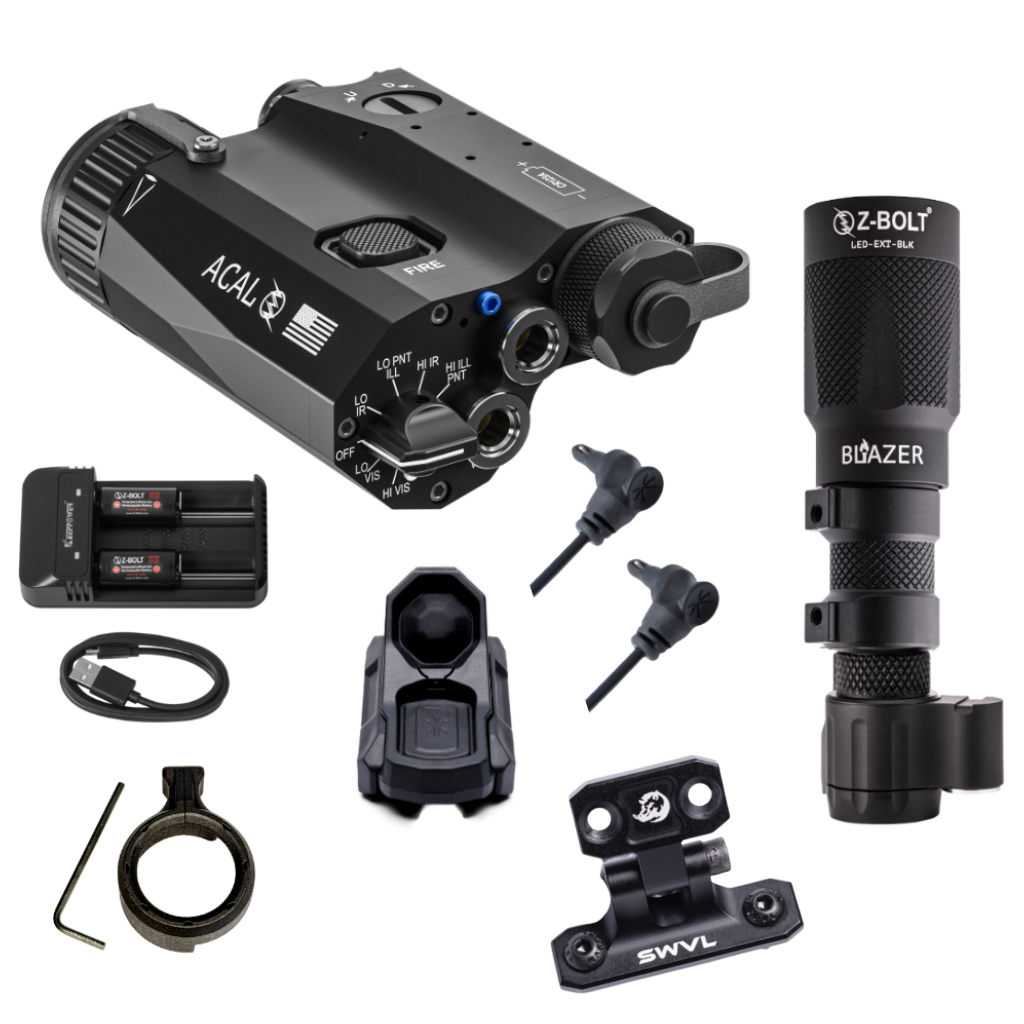

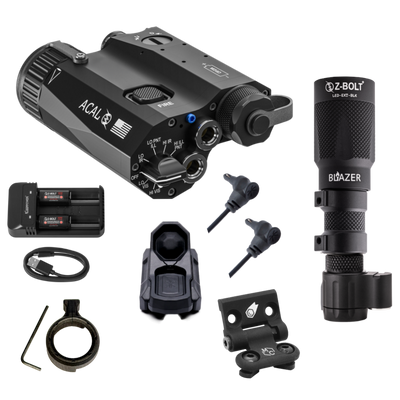

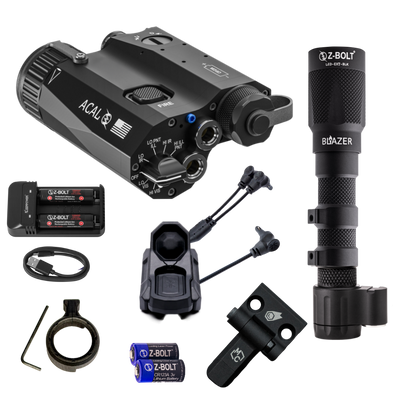

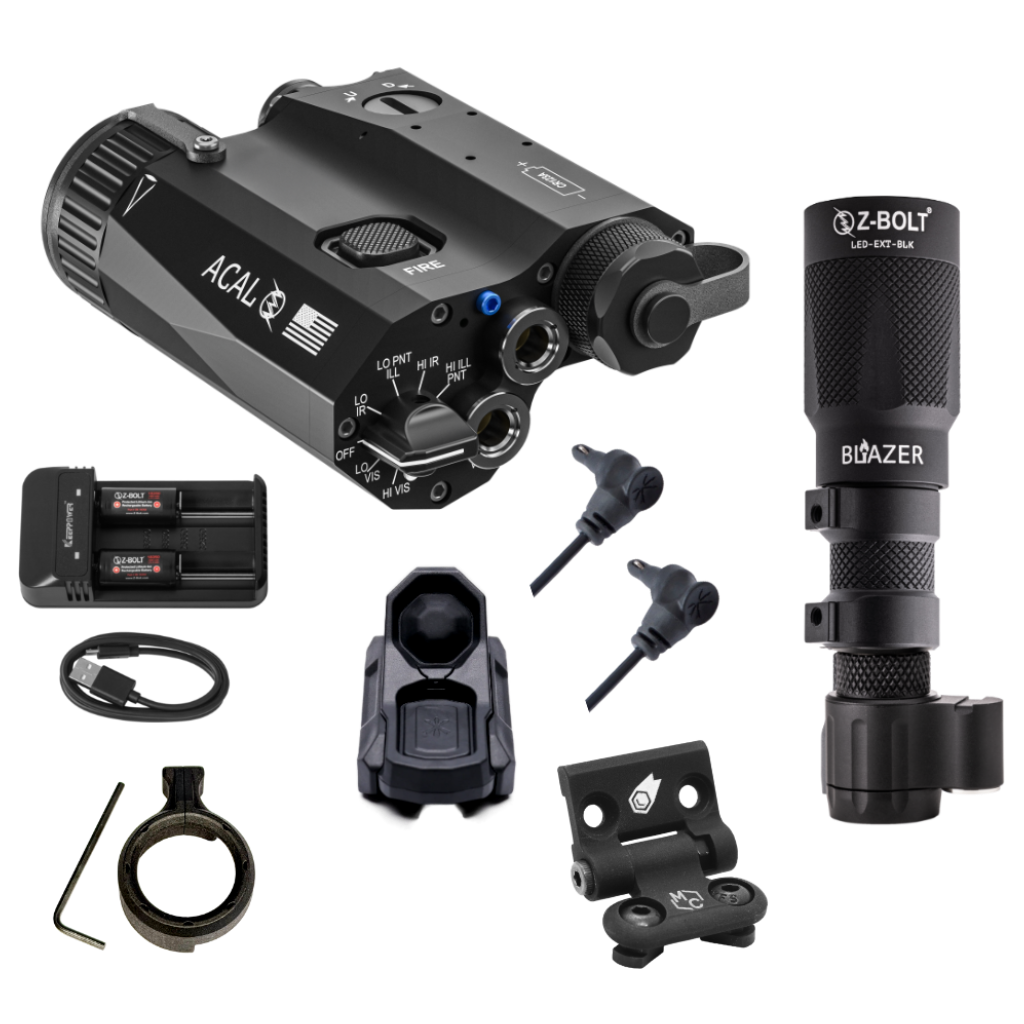

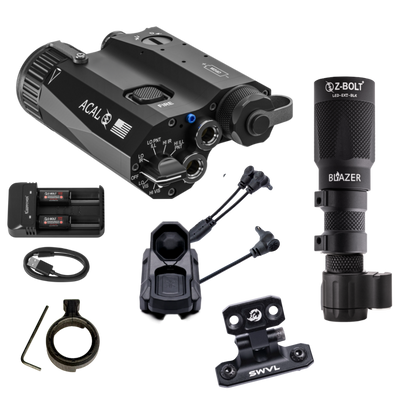

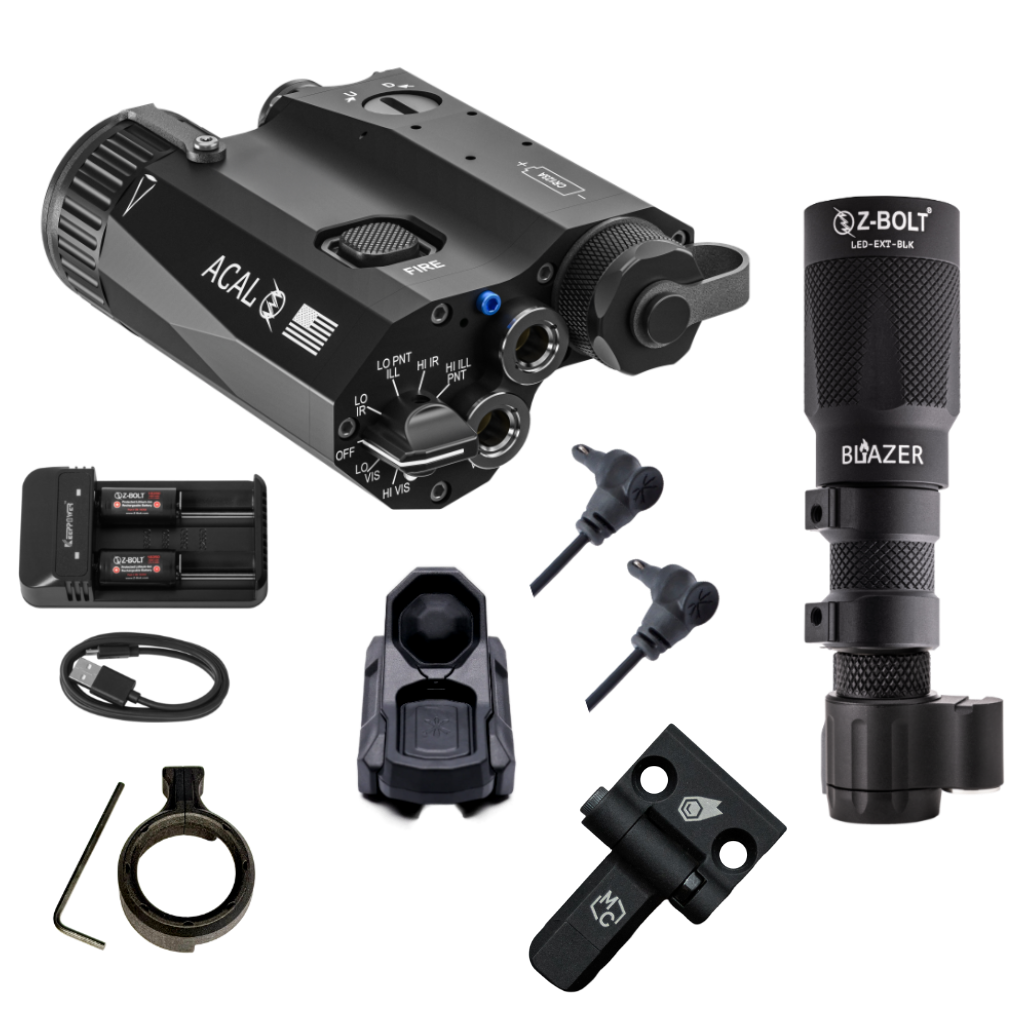

Parts in VIS Override Package:
1 pc ACAL MFAL - VCSEL 150mW
1 pc 18350 or 18650 LED Weapon Light
1 pc Z-BOLT® Dual Function Cable Port Tailcap
1 pc AXON TRIPLE Lead (Crane) VIS Override Cable Switch
  - 1x Lead for Remote Fire Port
  - 1x Lead for Dual Function Tailcap Port
  - 1x Lead for Visible Override Crane Port
1 pc Overbore SWVL Adjustable Mount - MLOK or Picatinny  OR
1 pc Meteorite Adjustable Hinge Mount - MLOK or Picatinny
2 pc 18350 or 18650 Batts & Charger (2 pc CR123A "Dual Fuel")

Features & Benefits:

Class 3B Infrared Illuminator
- Adjustable Focus Optics 4° to 25°
- 150mW VCSEL Infrared Illuminator

Improved Bezel Motion Ratio
-  60° vs 360° (DBAL D2)
-  Ships With Bezel Throw Lever
-  Quick Transitions - Focus to Flood (CQB)

Features & Benefits
Standard Lug/Bolt or ADM QD Mount
- Easy Swap to ADM QD Throw Lever Mount
HI/LO Settings for VIS/IR Infrared Illuminators
Dual Crane Ports - Remote Fire & Visible Override
VIS & IR Dot Lasers - One Aperture!
- Laser Directly Over Bore
- Low Parallax = Improved Shooting Accuracy
Excellent Optics Clearance
- Mounts < 1" Over Picatinny Rail
- Illuminator "Saddle Bagged" for Button Access

Optional Accessories
- Ranger Wraps - CORDURA®Fabric
- ADM Quick Detach Lever Assembly

ACAL MFAL - User's Manual
ACAL MFAL 3B [LE]  Data Sheet
ACAL MFAL 3B [LE] Product Brief

Sales Restrictions - ITAR
Sales Restrictions - ITAR

Online Orders to US resident addresses ONLY.
It is illegal to export this product. See below . . .

ITAR Restrictions
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.

Specifications, Technical Data
Specifications, Technical Data

LASER & ILLUMINATOR - TYPE
- IR Laser: 25mW: FDA Class 3B
- Green Laser: 25mW: FDA Class 3B
- IR VCSEL Illuminator: 150mW Class 3B

POWER OUTPUT (HI/LO)
- IR Laser: 25mW / 0.7mW
- Visible Green Laser: 25mW / 5mW
- IR VCSEL Illuminator: 150mW / 15mW

WAVELENGTH
- IR Laser: 850nm
- Visible Green Laser: 525nm
- IR VCSEL Illuminator: 850nm

BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR VCSEL Illuminator: 4° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad   (ACAL-RV3)

RANGE & VISIBILITY
- IR Laser: 1500m
- Visible Green Laser: 1500m
- IR VCSEL Illuminator: 2000m

OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR VCSEL Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C

BATTERY & RUNTIME
- 1 pc CR123A Lithium
- 4 Hours - Tactical Use - Mode Dependent

ACAL-GL3 HOUSING
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hardcoat Anodized

WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm

ENVIRONMENTAL
- MIL-STD-810 & IP68
- Waterproof to 5 Meters

ACAL MFAL - User's Manual
ACAL MFAL 3B [LE]  Data Sheet
ACAL MFAL 3B [LE] Product Brief

Easily Switch Out Mount Assemblies
