Product Details
Civilian LEGAL
Class 3R - VCSEL (<95mW)
BLAZER II Infrared Illuminator Head

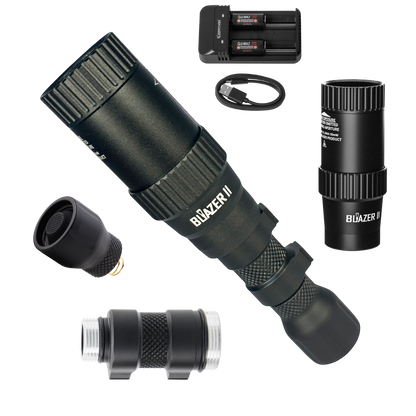

Box Contents:
1 pc Clicky Style Tailcap
1 pc 18350 Scout Light Body
2 pc 18350 Lithium Batteries & Charger
1 pc BLAZER II Infrared Illuminator Head (3R)
Auto Power Scaling [Pat. Pending]
Introducing Z-BOLT® Auto Power Scaling™ technology! FDA laser regulations require manufacturers to “throttle” the power output of VCSEL laser chips, so as to meet the particular Class 3R (civilian legal, <1.95mW) or Class 3B (<500mW) FDA laser safety classifications. Laser power meter results for Class 3R illuminators must not exceed 1.95mW when the device is tested (fixed angle - directed at a 7mm sensor @ 10cm). Z-BOLT® Auto Power Scaling™ technology offers the highest possible LEGAL output power for a given beam angle setting - the telescopic adjustment bezel providing the end user with beam angle dependent power control. Where previous 3R VCSEL illuminators fall short (increased angle beam settings where the IR light fails in wide area illumination), the BLAZER II & ACAL units maintain the maximum permissible power based on the product's FDA classification. Available in both Class 3R (<95mW) Class 3B (150mW~400mW) VCSEL configurations.
The new BLAZER II VCSEL 3R illuminator features a telescopic dual lens optics assembly; variable zoom 4° to 25° functionality; is constructed of aircraft grade aluminum; has a fully potted LED chip to withstand shock & recoil; a brass threaded insert for "buttery" smooth interface with third party light bodies; and MIL-STD-810 & IP68 environmental performance.
FEATURES:
* NOHD = 0.37 meters
* 1000 Meter Beam Throws
* CIV Legal VCSEL IR Illuminator
* Auto Power Scaling [Pat. Pending]
* VCSEL Illuminator, 850nm, IP68
* Variable Zoom 4° to 25° Telescopic Lens System
* Focused Wide Area Flood for Mid-Range or CQB
ITAR Restrictions*
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
Specifications
BATTERY & BATTERY LIFE:
1 pc 18350 14 hrs
DIMENSIONS - WEIGHT:
H 6.00 in x W 1.50 in
H 152 mm x W 38 mm
6oz. / 170 Grams
Spectacular,
I'm very impressed with the Blazer ll IR VCSEL 3B.
Seems to be very high quality. There are already some very good
videos showing performance on their site.
