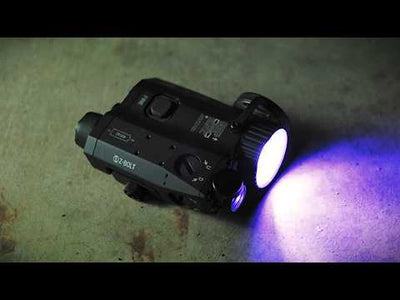

ACAL, Advanced Co-Located Aiming Laser Best in Class 600mW LED Infrared Illuminator with advanced co-located laser and illuminator optics. Features adjustable focus from 6° to 25°, unrestricted illuminator power that exceeds Class 3R VCSEL brightness, and improved 60° bezel motion ratio for faster transitions between focus and flood modes. Includes bezel throw lever for quick adjustments in close-quarters scenarios. Dual laser single aperture design positions both systems directly over bore for low parallax and improved shooting accuracy. HI/LO settings optimize performance for visible and infrared modes. Dual Crane ports enable remote fire and visible override capability. Mounts securely with the ADM Quick Detach lever assembly. Compact profile sits less than 1" above Picatinny rail with saddle-bagged illuminator design for unobstructed button access. Compatible with Z-BOLT® tethered diffuser, Unity AXON™ switches, and AXON™ DBAL/ACAL visible override accessories. See Features & Benefits, ITAR Statement, Specifications BELOW . . . ACAL Design Brief - Unrestriced LED vs VCSEL Illuminators ACAL Product Brief - View or Download PDF
ACAL MFAL- 600mW LED IR Illuminator with ADM Tactical QD Lever
BLACK
$1,550.00
Request Agency Quotes, Schedule Device T & E
Please contact us for pricing & availability, for dealers & distributors, or to schedule a demo ACAL to shoot and evaluate. (T & E) Full power Class 3B lasers & IR illuminators are restricted to Law Enforcement and Government sales only and cannot be sold to civilians. Generally, purchase of IR Laser equipment can only occur at the Department, Agency, or Unit level. Purchases made with department funds via department credit card or agency PO recommended. IR Lasers CAN be sold to individual Law Enforcement, Military, Government, or Contractor personnel. If you are a government employee and would like to purchase an IR laser, you must provide your credentials and your department or agency shipping address. All orders with department or individual funds can only be shipped direct to the department, agency, or command. These lasers are regulated by the FDA (Food & Drug Administration). Price inquires must include an email request from an official government or government contractor email address. All ITAR restrictions apply. See ITAR Statement* below . . . .
Features & Benefits
LED Infrared Illuminator 600mW LED Infrared Illuminator
Adjustable Focus Optics 6° to 25°
Illuminator Power - UNRESTRICTED
Beats Class 3R VSCEL in Illuminator Brightness
Improved Bezel Motion Ratio
- 60° vs 360° (DBAL D2)
- Ships With Bezel Throw Lever
- Quick Transitions - Focus to Flood (CQB)
Features & Benefits Standard Lug/Bolt or ADM QD Mount
- Easy Swap to ADM QD Throw Lever Mount HI/LO Settings for VIS/IR Infrared Illuminators
Dual Crane Ports - Remote Fire & Visible Override
VIS & IR Dot Lasers - One Aperture!
- Laser Directly Over Bore
- Low Parallax = Improved Shooting Accuracy
Excellent Optics Clearance
- Mounts < 1" Over Picatinny Rail
- Illuminator "Saddle Bagged" for Button Access
Optional Accessories
- Z-BOLT® Tethered Diffuser for CQB
- ADM Quick Detach Lever Assembly
- Unity AXON™ SL & AXON™ Switches
- AXON™ DBAL/ACAL for VIS Override Port
Online Orders to US resident addresses ONLY.
It is illegal to export this product. See below . . .
ITAR Restrictions
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
Specifications, Technical Data
LASER & ILLUMINATOR - TYPE
- IR Laser: 0.7 mW: FDA Class 1
- Green Laser: 5mW: FDA Class 3R
- IR LED Illuminator: 600mW, UNRESTRICTED
POWER OUTPUT (HI/LO)
- IR Laser: <0.7mW / <0.35mW
- Visible Green Laser: <5mW / <1mW
- IR LED Illuminator: 600mW / 100mW
WAVELENGTH
- IR Laser: 850nm
- IR LED Illuminator: 850nm
- Visible Green Laser: 525nm
BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR LED Illuminator: 6° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad (ACAL-RV3)
RANGE & VISIBILITY
- IR Laser: 750m
- Green Laser: 750m
- IR LED Illuminator: 1000m
OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR LED Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C
BATTERY & RUNTIME
- 1 pc CR123A Lithium Metal
- 4 Hours - Tactical Use - Mode Dependent
ACAL-GL3 HOUSING:
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hard Coat Anodized
WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm
ENVIRONMENTAL
- MIL-STD-810 & IP8
- Waterproof to 5 Meters

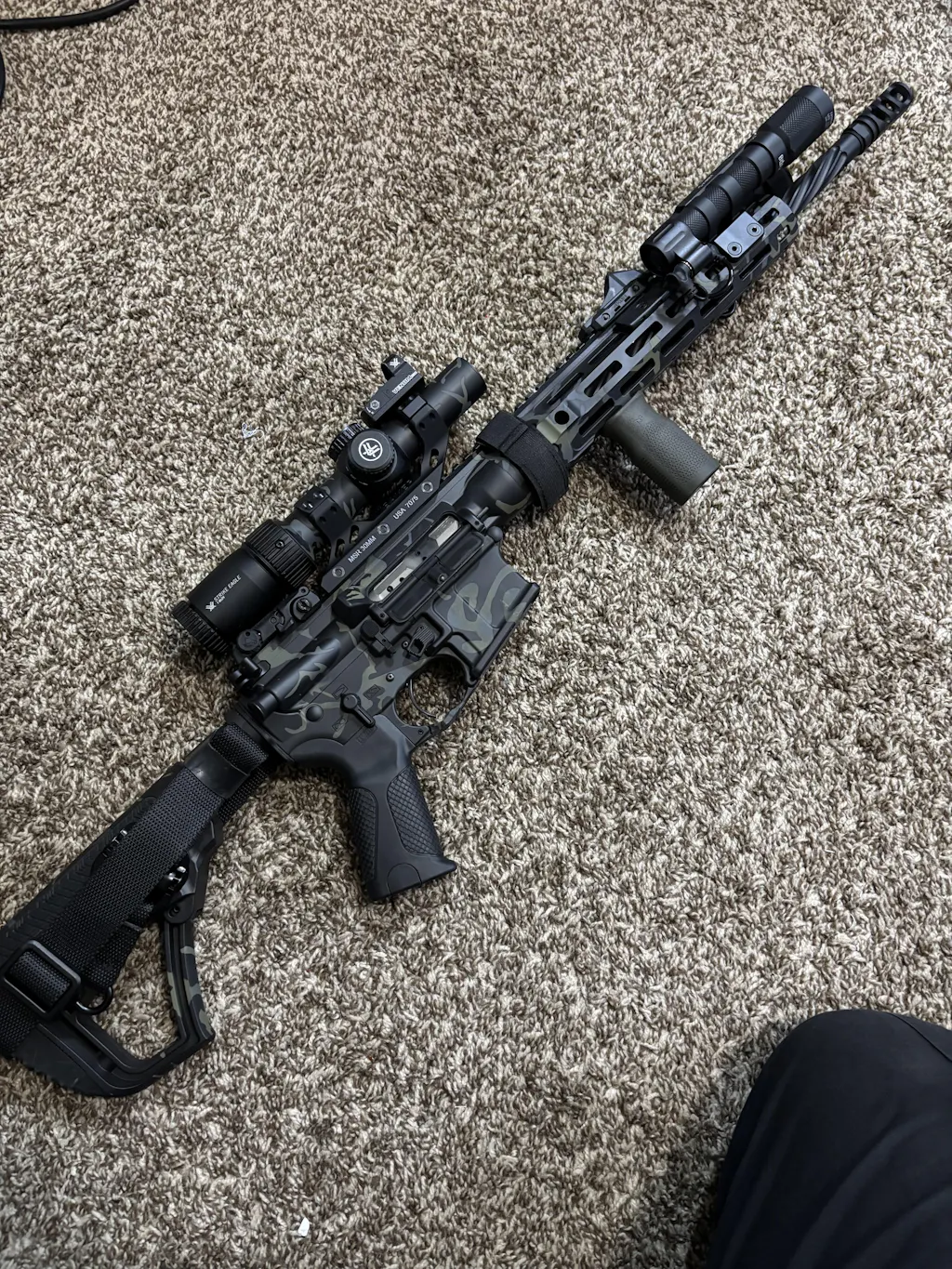

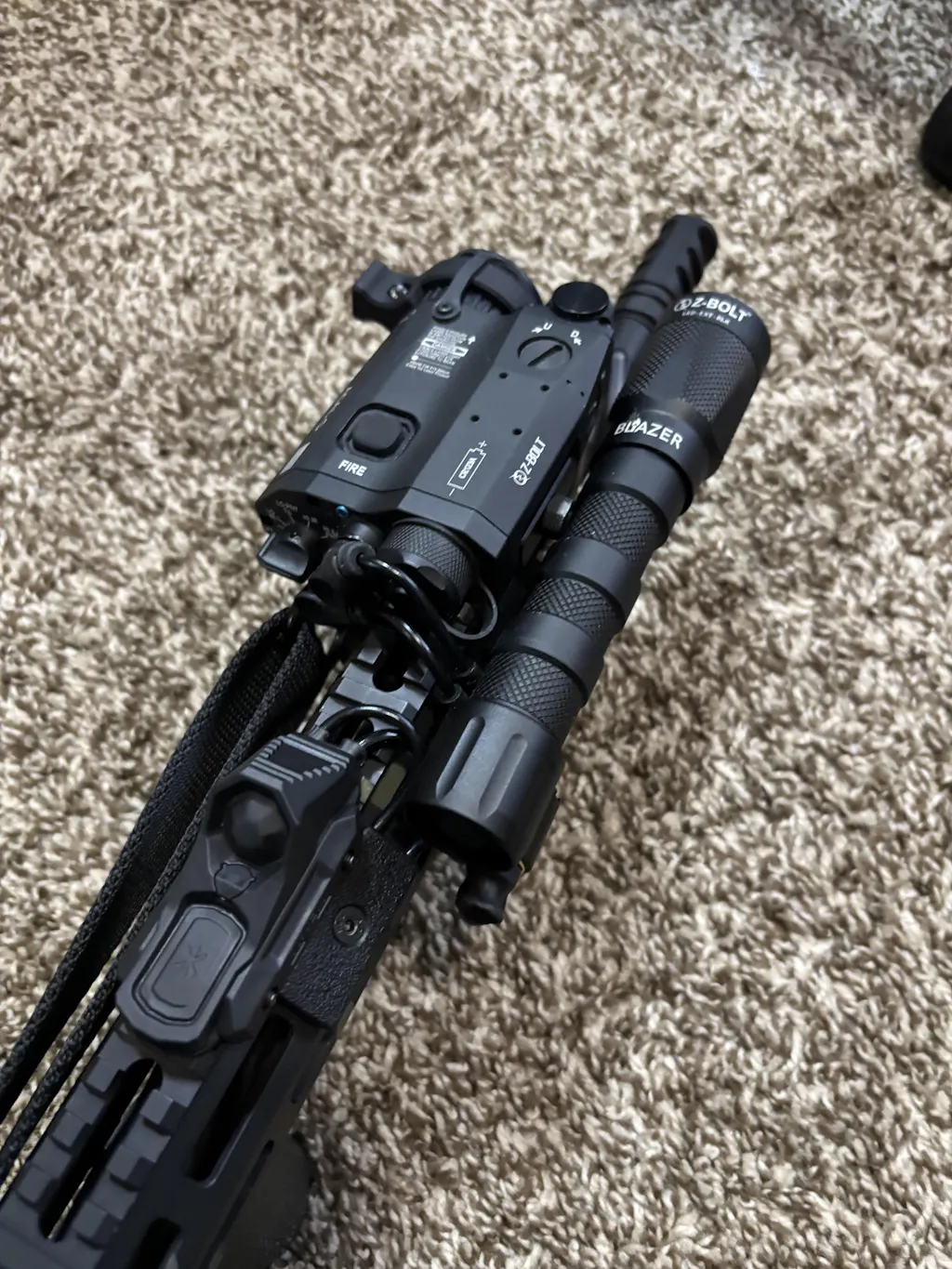

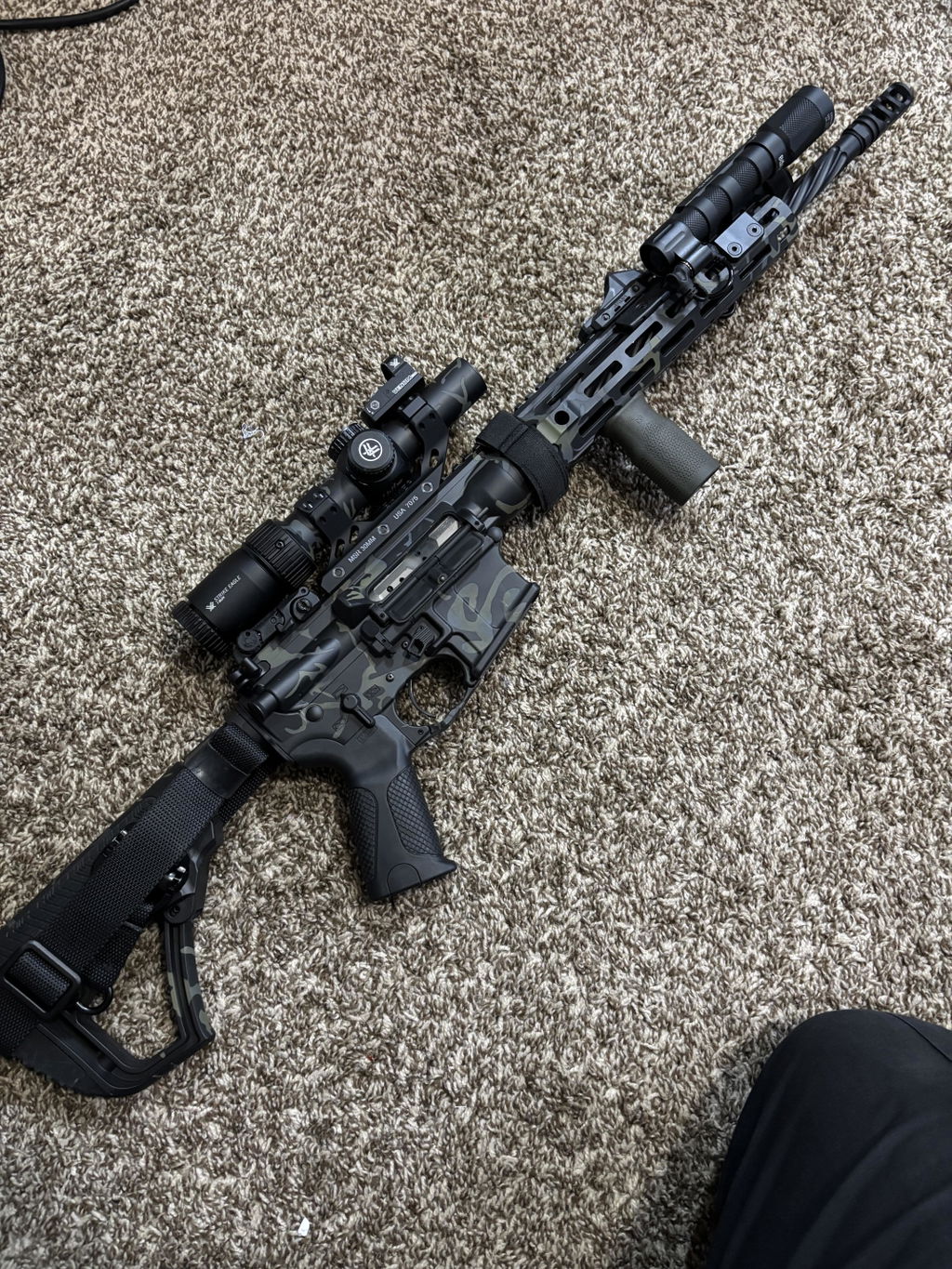

This is what I was waiting years for. It’s as if you combined a Steiner A3 with a D2. It is perfect in my needs. Dual remote leads, great IR illumnator range. I mount my white light offset to the right so the quick release is too big and had to remove it. Focus ring is great.
This is what I was waiting years for. It’s as if you combined a Steiner A3 with a D2. It is perfect in my needs. Dual remote leads, great IR illumnator range. I mount my white light offset to the right so the quick release is too big and had to remove it. Focus ring is great.
This is what I was waiting years for. It’s as if you combined a Steiner A3 with a D2. It is perfect in my needs. Dual remote leads, great IR illumnator range. I mount my white light offset to the right so the quick release is too big and had to remove it. Focus ring is great.
Ordered and promptly received the light. Fit and finish are great. Light is brighter than many of the other options in the market. Works well with industry standard mounts. Had an issue and it was resolved within minutes, customer service was very prompt and helpful.
