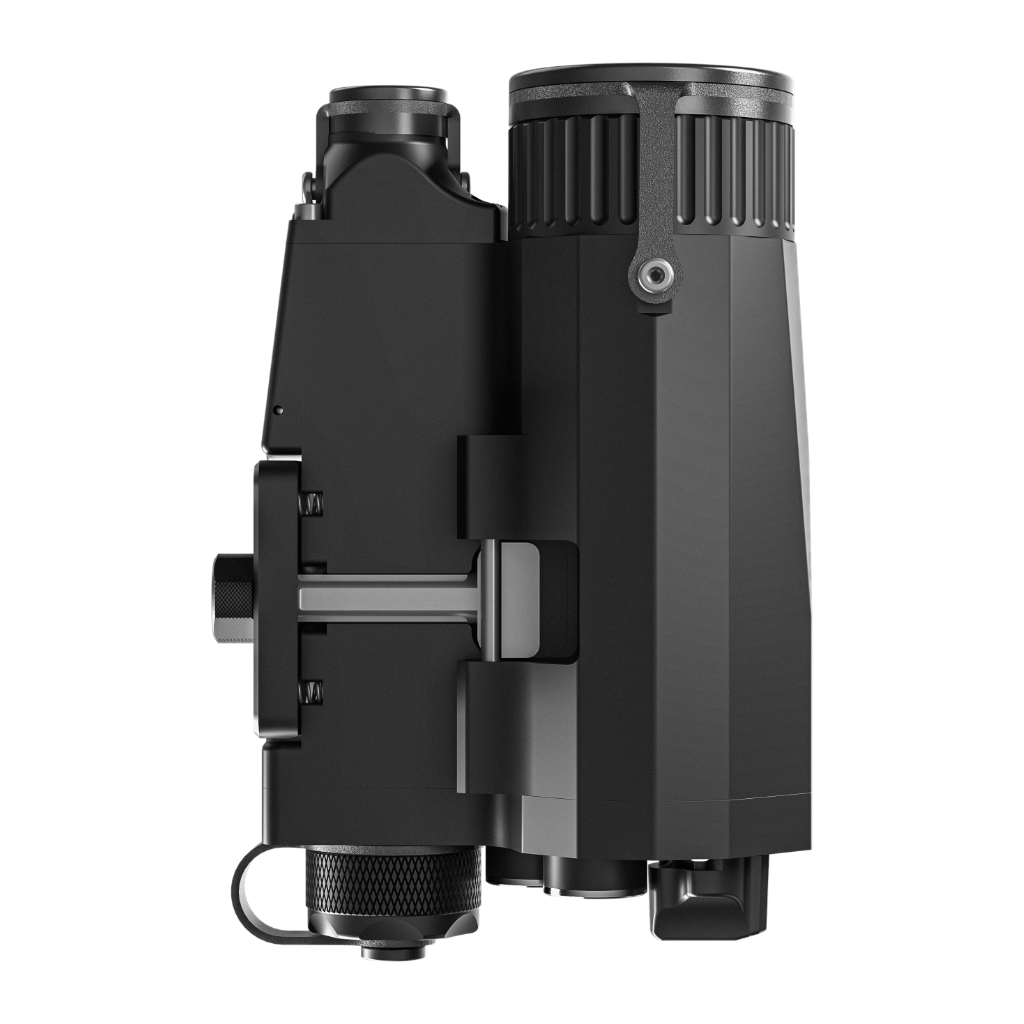

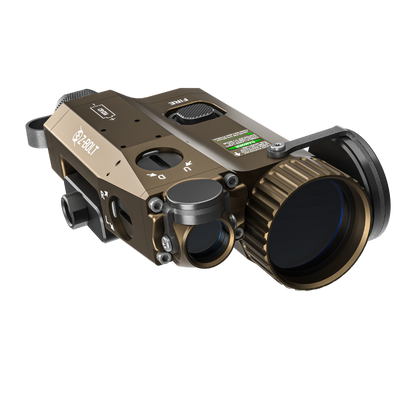

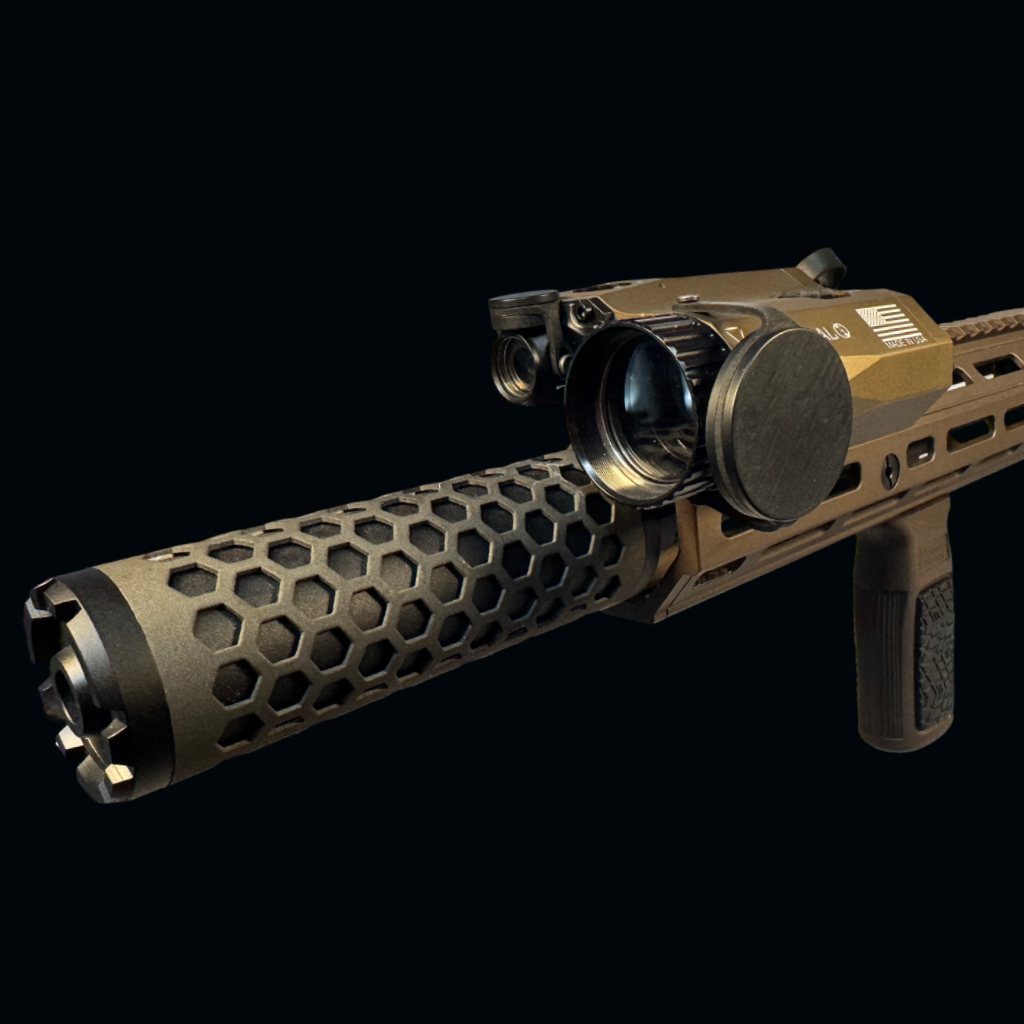

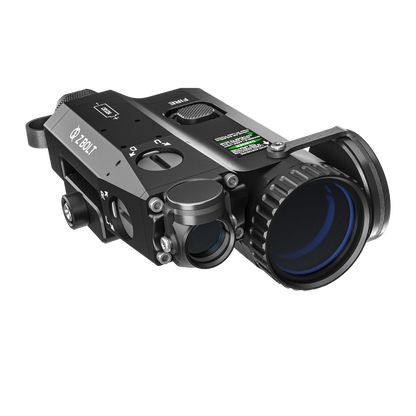

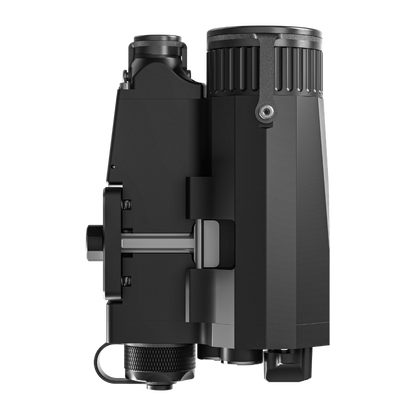

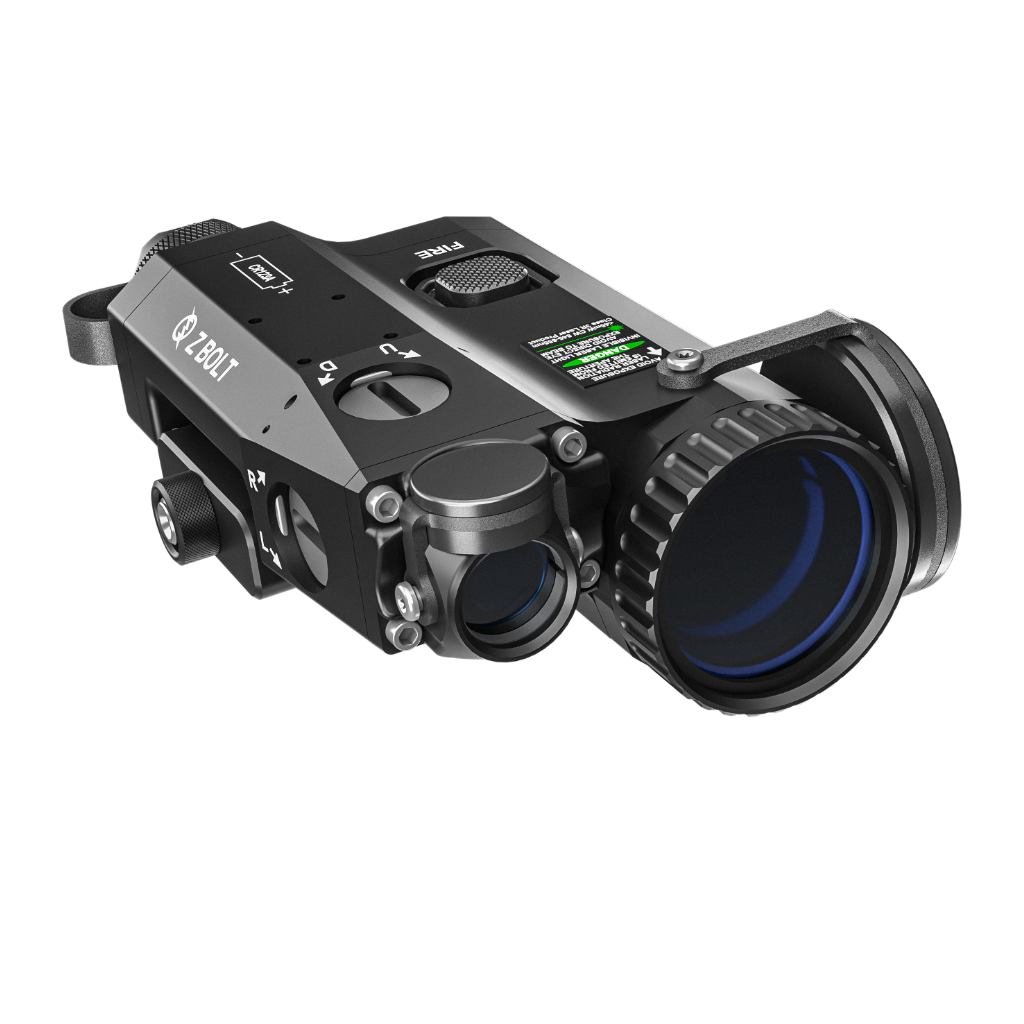

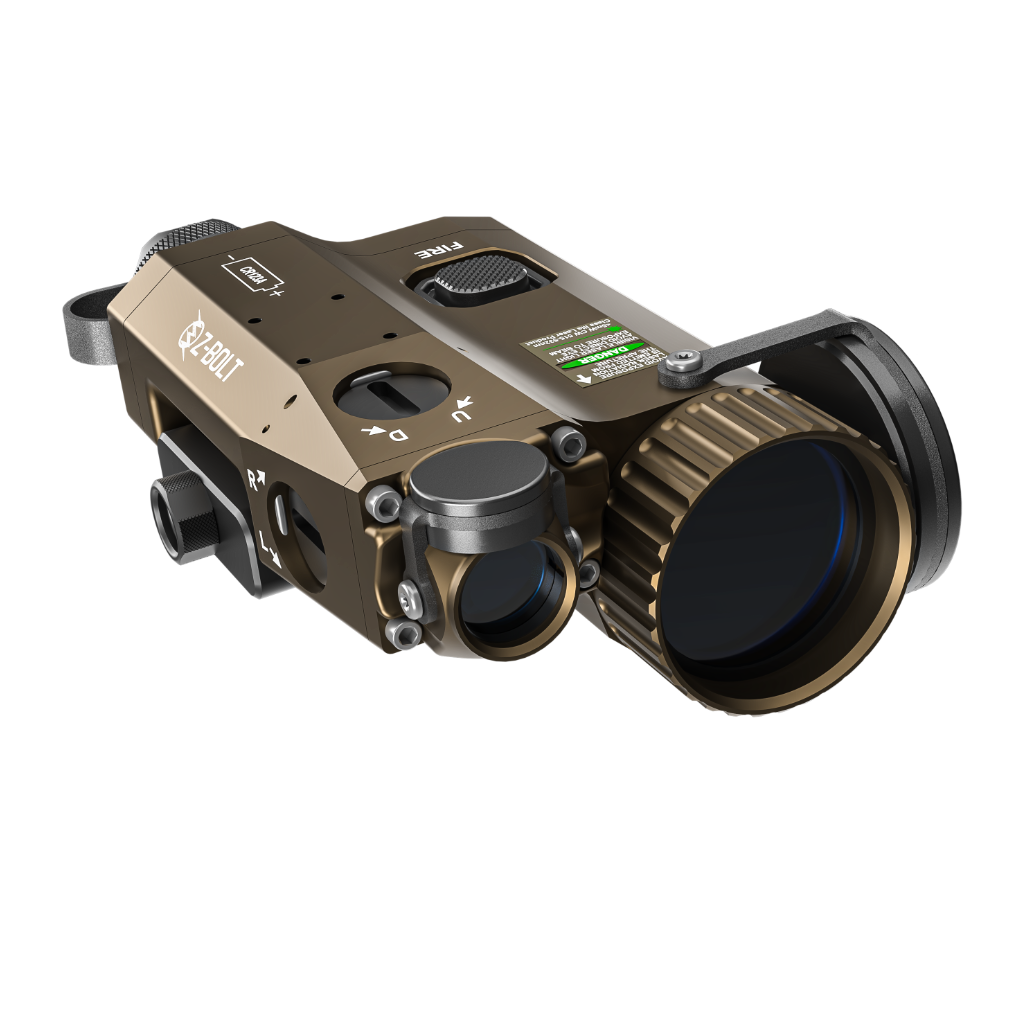

ACAL, LED IR Illuminator

FEATURES:
- Standard Lug/Bolt or ADM QD Mount
- Co-Located Green (Visible) & IR Laser
- FDA Safety Class 1 IR; Class 3R Green Laser
- CIV Legal - 350mW LED, Power Unrestricted
- Low Parallax = Improved Shooting Accuracy
- Two Beams - One Aperture! Directly Over Bore
- Variable Zoom 4° to 25° LED Infrared Illuminator
- HI-LO Settings for Lasers & IR LED Illuminator

OPTIONS:
- LEAF BUIS (Flip-Up)
- VWS Illuminator Throw Lever

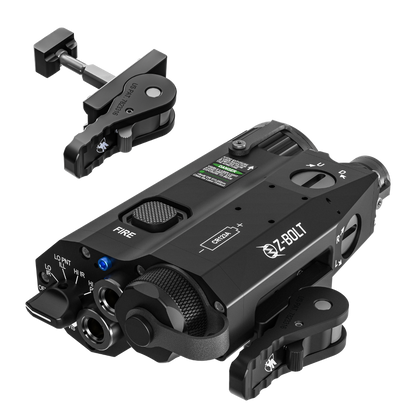

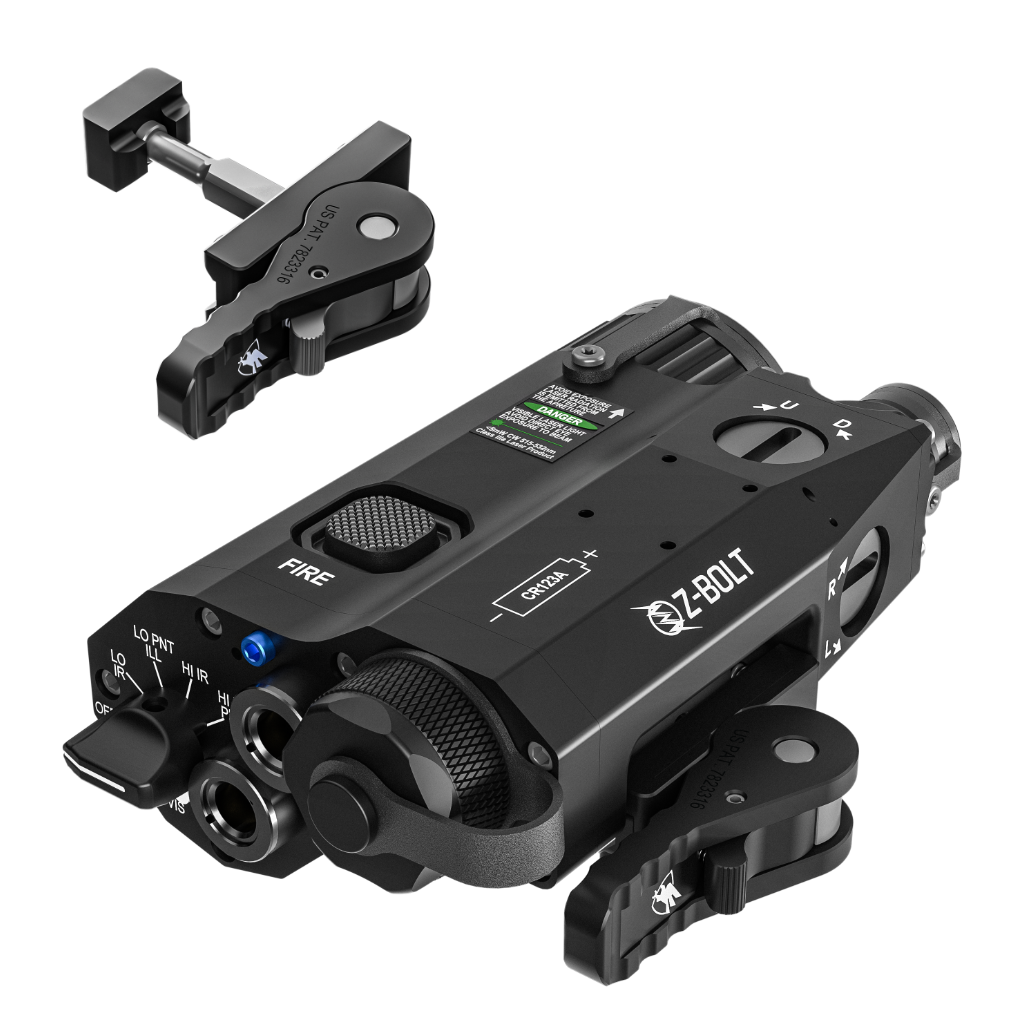

- ADM Quick Detach Lever Assembly
- Unity AXON™ SL & AXON™ Switches
- AXON™ DBAL/ACAL for VIS Override Port
- Villain Weapons -Tethered Beam Diffusers

ITAR Restrictions*
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.

LASER & ILLUMINATOR - TYPE
- IR Laser: 0.7 mW: FDA Class 1
- Green Laser: 5mW: FDA Class 3R
- IR LED Illuminator: 350mW, Class 3R

POWER OUTPUT (HI/LO)
- IR Laser: <0.7mW / <0.35mW
- Visible Green Laser: <5mW / <1mW
- IR LED Illuminator: 350mW / 100mW

WAVELENGTH
- IR Laser: 850nm
- IR LED Illuminator: 850nm
- Visible Green Laser: 525nm

BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR LED Illuminator: 4° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad   (ACAL-RV3)

RANGE & VISIBILITY
- IR Laser: 1000m
- IR LED Illuminator: 1000m
- Visible Green Laser: 5mW = 750m

OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR LED Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C

BATTERY & RUNTIME
- 1 pc CR123A Lithium
- 4 Hours - Tactical Use - Mode Dependent

ACAL-GL3 HOUSING:
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hardcoat Anodized

WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm

ENVIRONMENTAL
-  MIL-STD-810 & IP8
- Waterproof to 5 Meters
