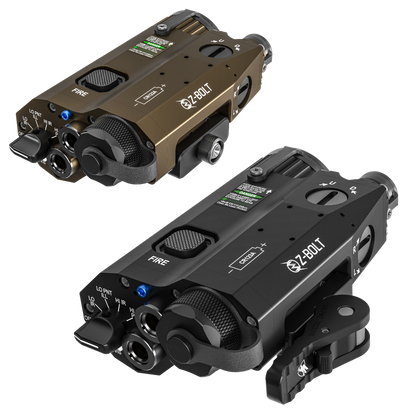

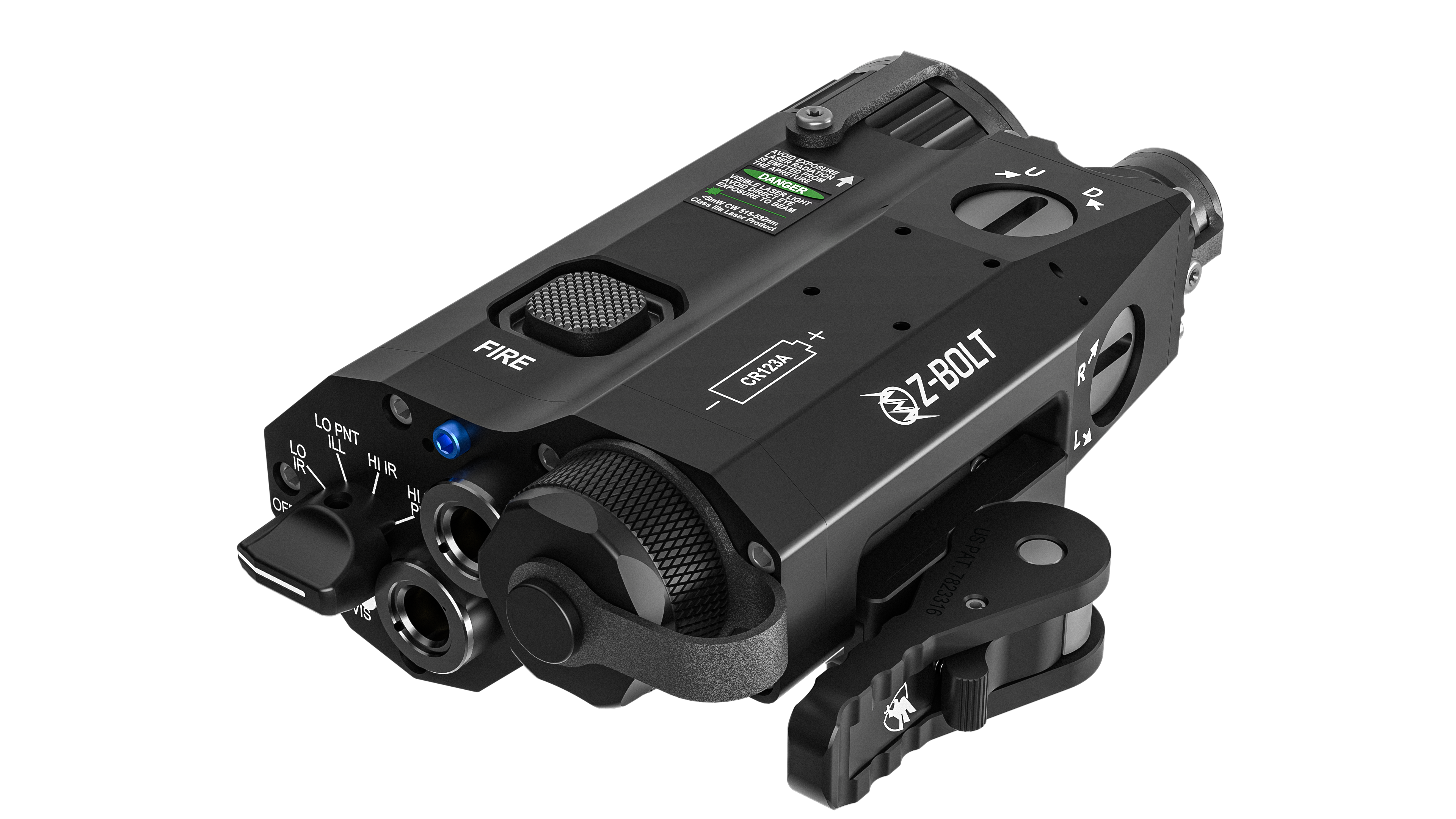

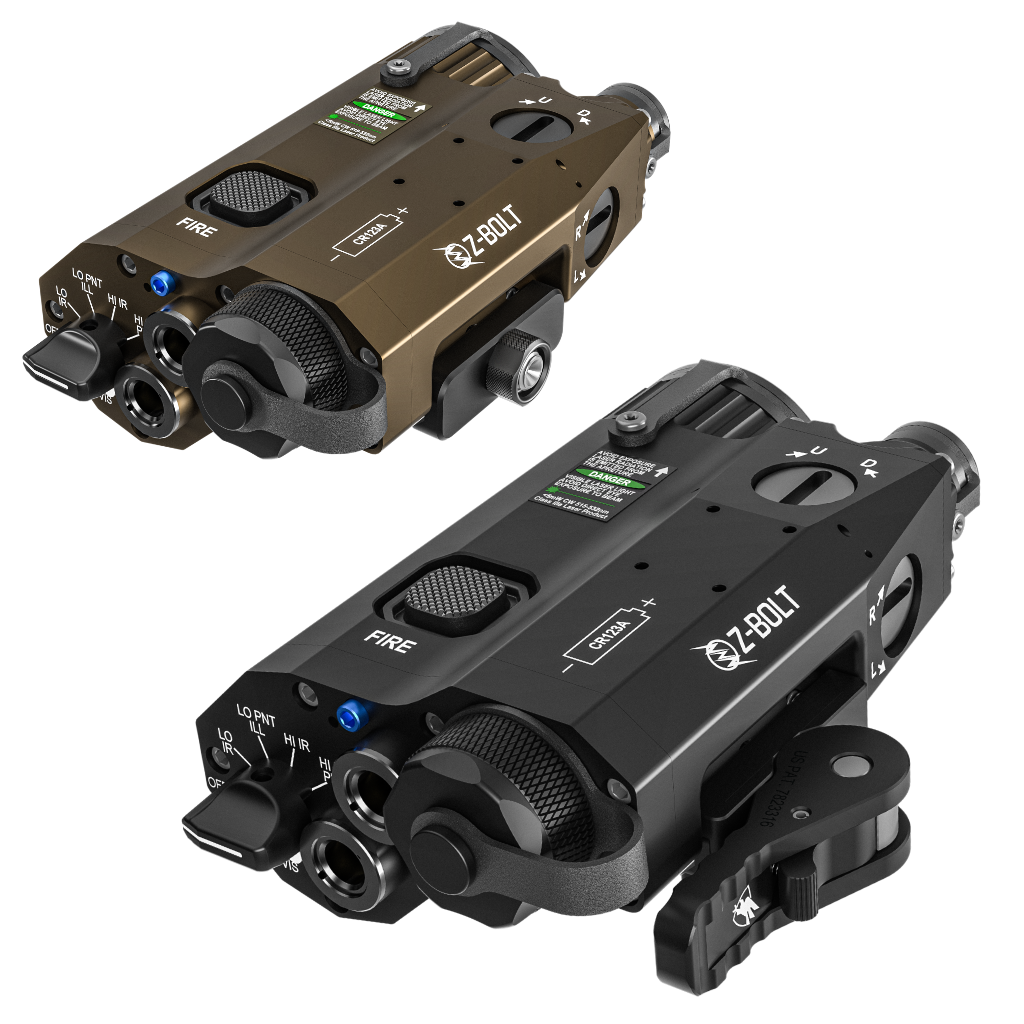

ACAL, 3R VCSEL IR Illuminator

Z-BOLT® Exclusive!
VCSEL Infrared Illuminator
Auto Power Scaling [Pat. Pending]
Introducing Z-BOLT® Auto Power Scaling™ technology! FDA laser regulations require manufacturers to “throttle” the power output of VCSEL laser chips, so as to meet the particular Class 3R (civilian legal, <1.95mW) or Class 3B (<500mW) FDA laser safety classifications. Laser power meter results for Class 3R illuminators must not exceed 1.95mW when the device is tested (fixed angle - directed at a 7mm sensor @ 10cm). Z-BOLT® Auto Power Scaling™ technology offers the highest possible LEGAL output power for a given beam angle setting - the telescopic adjustment bezel providing the end user with beam angle dependent power control. Where previous 3R VCSEL illuminators fall short (increased angle beam settings where the IR light fails in wide area illumination), the BLAZER II & ACAL units maintain the maximum permissible power based on the product's FDA classification. Available in both Class 3R (95mW) Class 3B (150mW~400mW) VCSEL configurations.

FEATURES
- Standard Lug/Bolt or ADM QD Mount
- Co-Located Green (Visible) & IR Laser
- FDA Safety Class 1 IR; Class 3R Green Laser
- CIV Legal - 95mW VCSEL Class 3R Illuminator
- Low Parallax = Improved Shooting Accuracy
- Two Beams - One Aperture! Directly Over Bore
- Variable Zoom 4° to 25° VCSEL IR Illuminator
- HI-LO Settings for Lasers & IR VCSEL Illuminator

OPTIONS
- LEAF BUIS (Flip-Up)
- VWS Illuminator Throw Lever
- ADM Quick Detach Lever Assembly
- Unity AXON™ SL & AXON™ Switches
- AXON™ DBAL/ACAL for VIS Override Port
- Villain Weapons -Tethered Beam Diffusers

ITAR Restrictions*
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.

LASER & ILLUMINATOR - TYPE
- IR Laser: 0.7 mW: FDA Class 1
- Green Laser: 5mW: FDA Class 3R
- IR VCSEL Illuminator: 95mW Class 3R

POWER OUTPUT (HI/LO)
- IR Laser: <0.7mW / <0.35mW
- Visible Green Laser: <5mW / <1mW
- IR VCSEL Illuminator: 95mW / 15mW

WAVELENGTH
- IR Laser: 850nm
- Visible Green Laser: 525nm
- IR VCSEL Illuminator: 850nm

BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR VCSEL Illuminator: 4° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad   (ACAL-RV3)

RANGE & VISIBILITY
- IR Laser: 1000m
- IR VCSEL Illuminator: 1000m
- Visible Green Laser: 5mW = 750m

OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR VCSEL Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C

BATTERY & RUNTIME
- 1 pc CR123A Lithium
- 4 Hours - Tactical Use - Mode Dependent

ACAL-GL3 HOUSING:
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hardcoat Anodized

WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm

ENVIRONMENTAL
- MIL-STD-810 & IP8
- Waterproof to 5 Meters
