Box Contents
1 pc ACAL MFAL 3B
2 pc CR123A Batteries
1 pc Illuminator Throw Lever

Class 3B Infrared Illuminator
- Adjustable Focus Optics 4° to 25°
- 400mW VCSEL Infrared Illuminator

Improved Bezel Motion Ratio
-  60° vs 360° (DBAL D2)
-  Ships With Bezel Throw Lever
-  Quick Transitions - Focus to Flood (CQB)

Features & Benefits
Standard Lug/Bolt or ADM QD Mount
- Easy Swap to ADM QD Throw Lever Mount

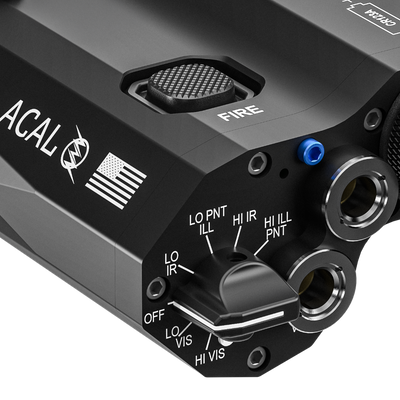

HI/LO Settings for VIS/IR Infrared Illuminators
Dual Crane Ports - Remote Fire & Visible Override
VIS & IR Dot Lasers - One Aperture!
- Laser Directly Over Bore
- Low Parallax = Improved Shooting Accuracy
Excellent Optics Clearance
- Mounts < 1" Over Picatinny Rail
- Illuminator "Saddle Bagged" for Button Access

Optional Accessories
- Z-BOLT® Tethered Diffuser for CQB
- ADM Quick Detach Lever Assembly
- Unity AXON™ SL & AXON™ Switches
- AXON™ DBAL/ACAL for VIS Override Port

ACAL MFAL - User's Manual
ACAL MFAL 3B [MIL]  Data Sheet
ACAL MFAL 3B [MIL] Product Brief

LASER & ILLUMINATOR - TYPE
- IR Laser: 50mW: FDA Class 3B
- Green Laser: 50mW: FDA Class 3B
- IR VCSEL Illuminator: 400mW Class 3B

POWER OUTPUT (HI/LO)
- IR Laser: 50mW / 0.7mW
- Visible Green Laser: 50mW / 5mW
- IR VCSEL Illuminator: 400mW / 15mW

WAVELENGTH
- IR Laser: 850nm
- Visible Green Laser: 525nm
- IR VCSEL Illuminator: 850nm

BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR VCSEL Illuminator: 4° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad   (ACAL-RV3)

RANGE & VISIBILITY
- IR Laser: 2000m
- Visible Green Laser: 2000m
- IR VCSEL Illuminator: 3500m

OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR VCSEL Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C

BATTERY & RUNTIME
- 1 pc CR123A Lithium
- 4 Hours - Tactical Use - Mode Dependent

ACAL-GL3 HOUSING
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hardcoat Anodized

WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm

ENVIRONMENTAL
- MIL-STD-810 & IP68
- Waterproof to 5 Meters

ACAL MFAL - User's Manual
ACAL MFAL 3B [MIL]  Data Sheet
ACAL MFAL 3B [MIL] Product Brief

RESTRICTED – U.S. Government Sales Only
High Power Class 3B Laser Illuminators are restricted to Law Enforcement and Government sales only and cannot be sold to civilians. Purchase of IR Laser equipment can only occur at the Department, Agency, or Unit level. IR Lasers cannot be sold to individual Law Enforcement, Military, Government, or Contractor personnel.  If you are a government employee and would like to purchase a high power laser, you must have your agency place the order for you. ACAL units must be shipped to agency or department addresses. ONLY.

ITAR Restrictions
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
