ACAL 3B, Co-Located Lasers & 150mW VCSEL IR Illuminator, ADM QD Lever [LE]

150mW VSCEL Infrared Illuminator
Bore Sighted Lasers - 25mW Green, 25mW IR
Z-BOLT® Full Power, Class 3B ACAL with advanced co-located lasers and VCSEL infrared illuminator. Features 4° to 25° variable zoom optics. Improved 60° bezel motion ratio for faster transitions between focus and flood modes. Includes bezel throw lever for quick adjustments in CQB scenarios. The ACAL single aperture, dual co-located laser design positions both VIS & IR emitters directly over bore for low parallax and improved shooting accuracy. Two Lasers - One Aperture! HI/LO settings optimize performance for visible and infrared modes. Dual Crane ports enable remote fire and visible override capability. Mounts securely with American Defense Manufacturing Quick Detach lever assembly. Compact housing profile sits less than 1" above Picatinny rail with saddle-bagged illuminator design for unobstructed button access. Triple-tap for 50mW lasers, 400mW Illuminator "Sniper Mode". Programing upgrade coming soon . . . Compatible with Z-BOLT® tethered diffuser, Unity AXON™ switches, and AXON™ DBAL/ACAL visible override accessories. See Sales Restrictions, ITAR Statement, Features & Benefits, & Specifications BELOW.
ACAL MFAL - User's Manual
ACAL MFAL 3B [LE] Data Sheet
ACAL MFAL 3B [LE] Product Brief

$1,950.00 $2,150.00

Shipping calculated at checkout.

Color: BLACK

BLACK
FDE

Product variants

Hurry, only 2 items left in stock!

Need help?

Pairs well with

Request Agency Quotes, Schedule Device T & E

Please contact us for pricing & availability, for dealers & distributors, or to schedule a demo ACAL to shoot and evaluate. (T & E) Full power Class 3B lasers & IR illuminators are restricted to Law Enforcement and Government sales only and cannot be sold to civilians. Generally, purchase of IR Laser equipment can only occur at the Department, Agency, or Unit level. Purchases made with department funds via department credit card or agency PO recommended. IR Lasers CAN be sold to individual Law Enforcement, Military, Government, or Contractor personnel. If you are a government employee and would like to purchase an IR laser, you must provide your credentials and your department or agency shipping address. All orders with department or individual funds can only be shipped direct to the department, agency, or command. These lasers are regulated by the FDA (Food & Drug Administration). Price inquires must include an email request from an official government or government contractor email address. All ITAR restrictions apply. See ITAR Statement* below . . .

Features & Benefits

Box Contents
1 pc ACAL MFAL 3B
2 pc CR123A Batteries
1 pc Illuminator Throw Lever

Class 3B Infrared Illuminator
- Adjustable Focus Optics 4° to 25°
- 150mW VCSEL Infrared Illuminator

Improved Bezel Motion Ratio
- 60° vs 360° (DBAL D2)
- Ships With Bezel Throw Lever
- Quick Transitions - Focus to Flood (CQB)

Features & Benefits
Standard Lug/Bolt or ADM QD Mount
- Easy Swap to ADM QD Throw Lever Mount
HI/LO Settings for VIS/IR Infrared Illuminators
Dual Crane Ports - Remote Fire & Visible Override
VIS & IR Dot Lasers - One Aperture!
- Laser Directly Over Bore
- Low Parallax = Improved Shooting Accuracy
Excellent Optics Clearance
- Mounts < 1" Over Picatinny Rail
- Illuminator "Saddle Bagged" for Button Access

Optional Accessories
- Z-BOLT® Tethered Diffuser for CQB

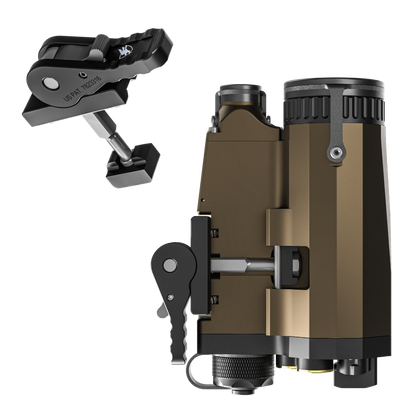

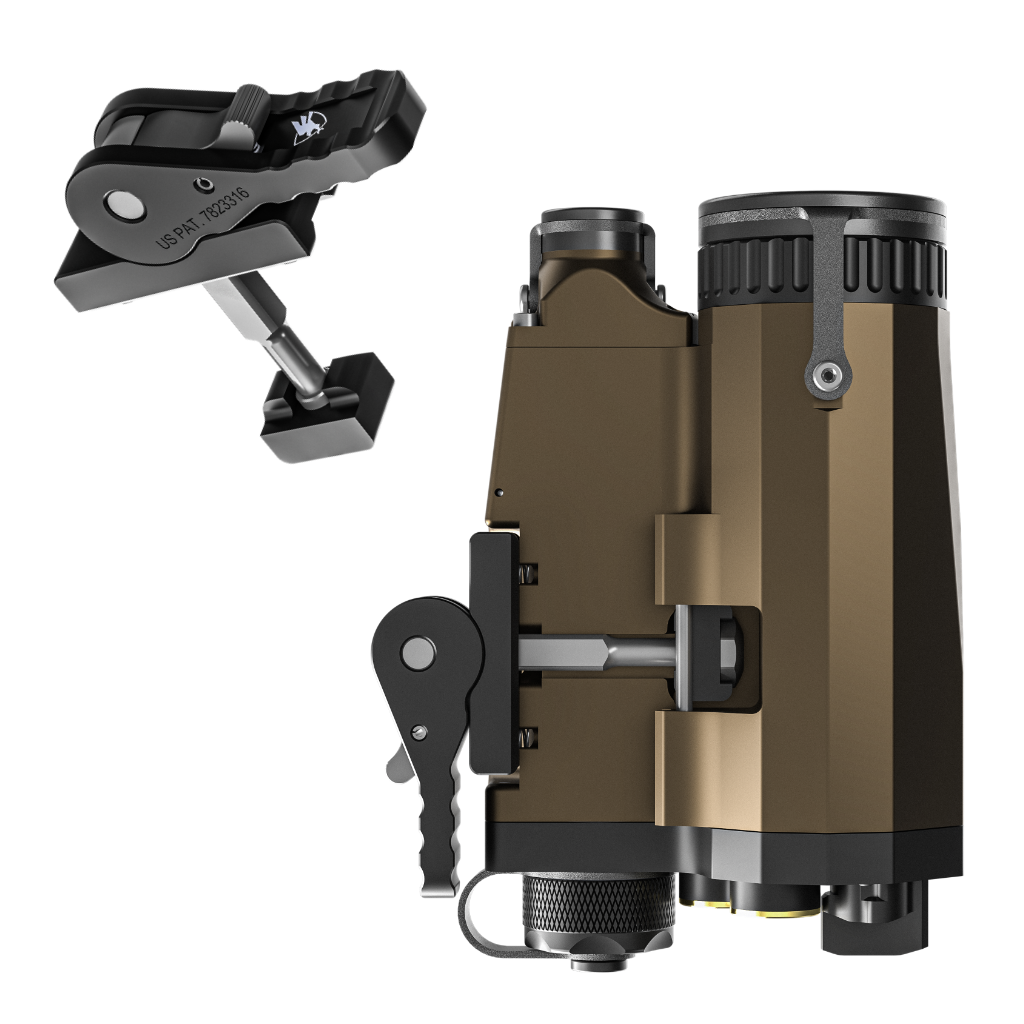

- ADM Quick Detach Lever Assembly
- Unity AXON™ SL & AXON™ Switches
- AXON™ DBAL/ACAL for VIS Override Port

ACAL MFAL - User's Manual
ACAL MFAL 3B [LE] Data Sheet
ACAL MFAL 3B [LE] Product Brief

Sales Restrictions - ITAR

RESTRICTED – U.S. Government Sales Only
High Power Class 3B Laser Illuminators are restricted to Law Enforcement and Government sales only and cannot be sold to civilians. Purchase of IR Laser equipment can only occur at the Department, Agency, or Unit level. IR Lasers cannot be sold to individual Law Enforcement, Military, Government, or Contractor personnel. If you are a government employee and would like to purchase a high power laser, you must have your agency place the order for you. ACAL units must be shipped to agency or department addresses. ONLY.

ITAR Restrictions
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.

Specifications, Technical Data

LASER & ILLUMINATOR - TYPE
- IR Laser: 25mW: FDA Class 3B
- Green Laser: 25mW: FDA Class 3B
- IR VCSEL Illuminator: 150mW Class 3B

POWER OUTPUT (HI/LO)
- IR Laser: 25mW / 0.7mW
- Visible Green Laser: 25mW / 5mW
- IR VCSEL Illuminator: 150mW / 15mW

WAVELENGTH
- IR Laser: 850nm
- Visible Green Laser: 525nm
- IR VCSEL Illuminator: 850nm

BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR VCSEL Illuminator: 4° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad (ACAL-RV3)

RANGE & VISIBILITY
- IR Laser: 1500m
- Visible Green Laser: 1500m
- IR VCSEL Illuminator: 2000m

OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR VCSEL Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C

BATTERY & RUNTIME
- 1 pc CR123A Lithium
- 4 Hours - Tactical Use - Mode Dependent

ACAL-GL3 HOUSING
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hardcoat Anodized

WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm

ENVIRONMENTAL
- MIL-STD-810 & IP68
- Waterproof to 5 Meters

ACAL MFAL - User's Manual
ACAL MFAL 3B [LE] Data Sheet
ACAL MFAL 3B [LE] Product Brief

ACAL vs DBAL A3

ACAL vs ATPIAL

ACAL vs MAWL

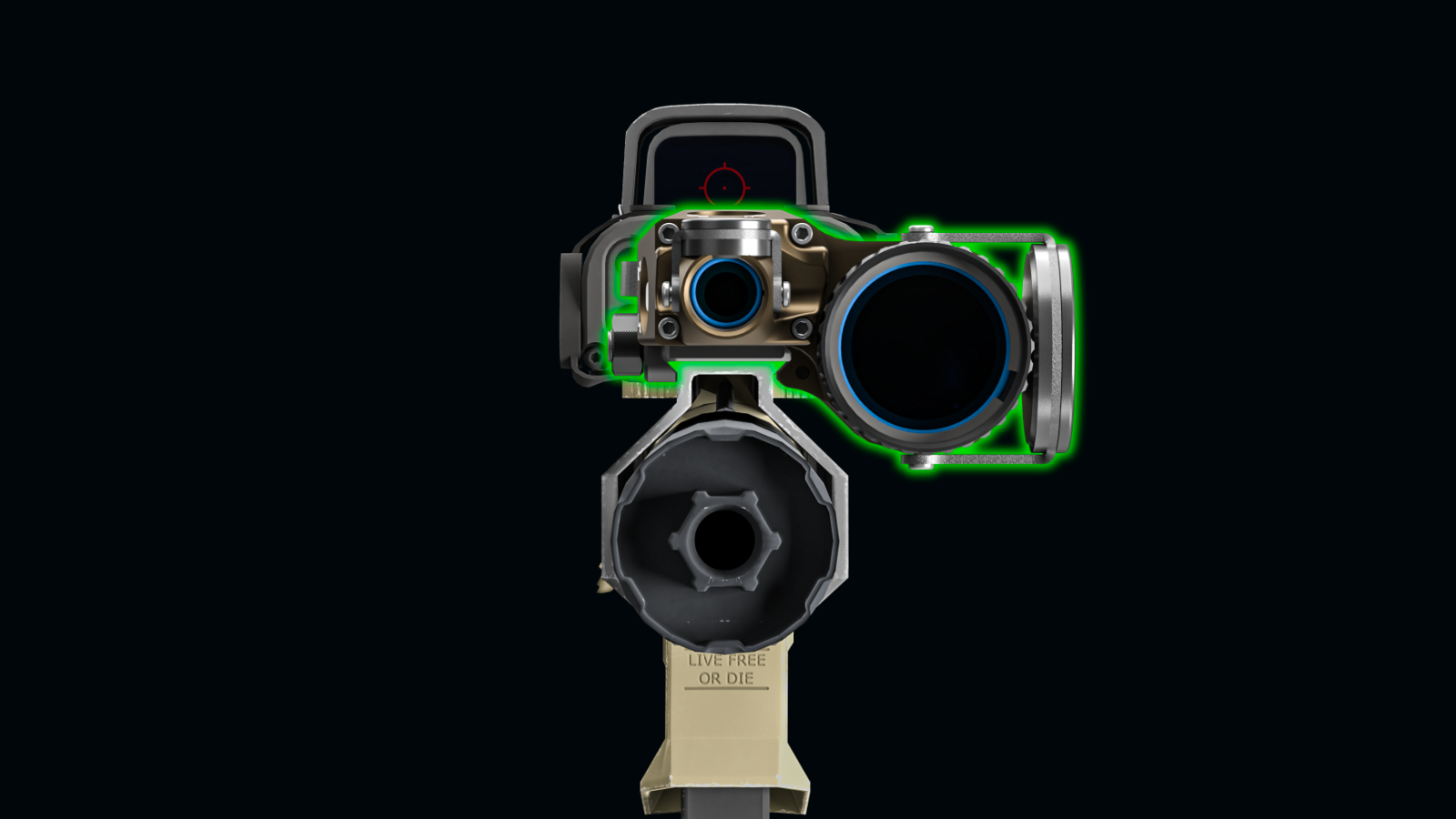

ACAL vs NGAL
