BOLT-5, 20 mm - Standard Dot

Z-Bolt® BOLT-5

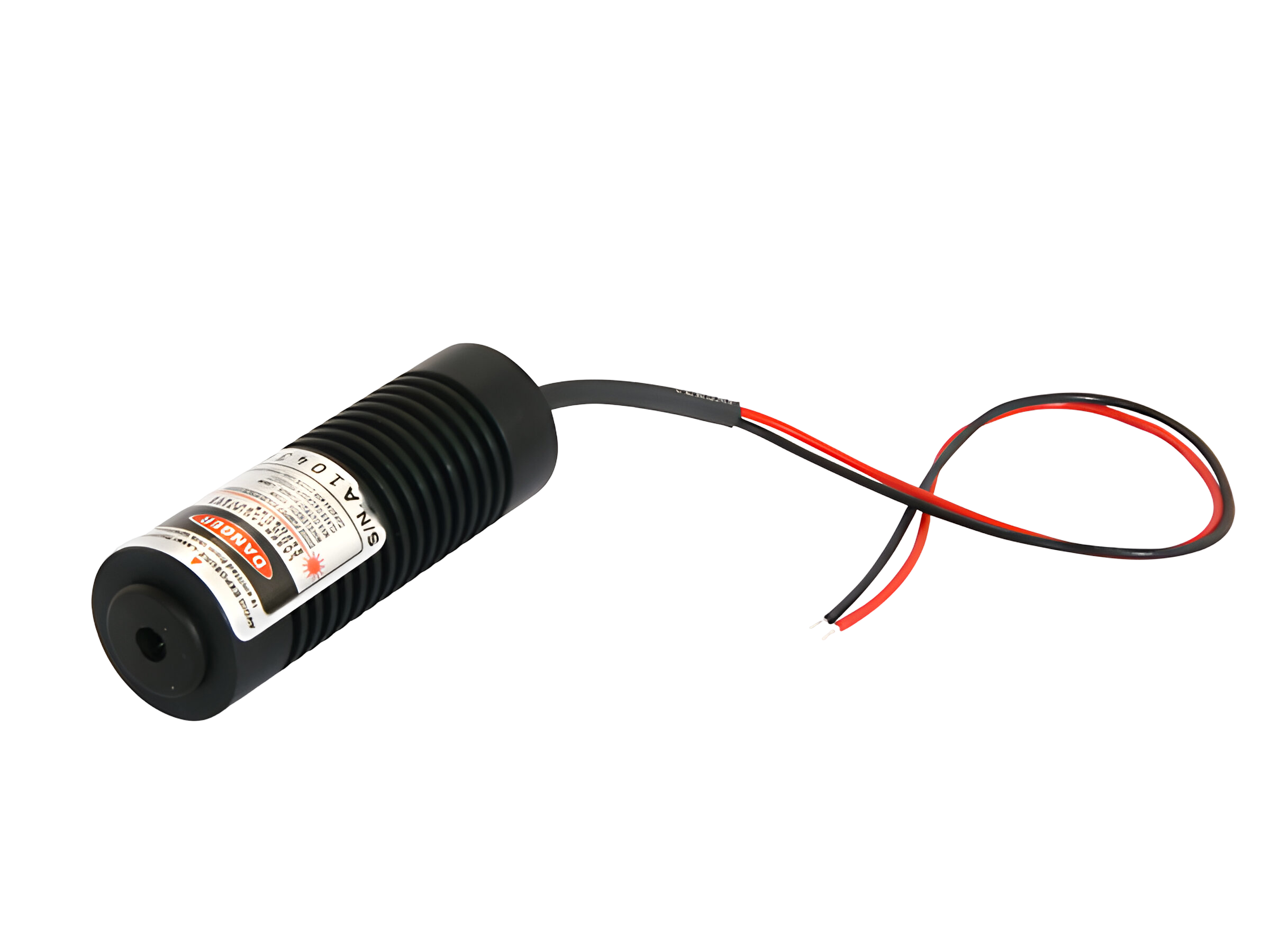

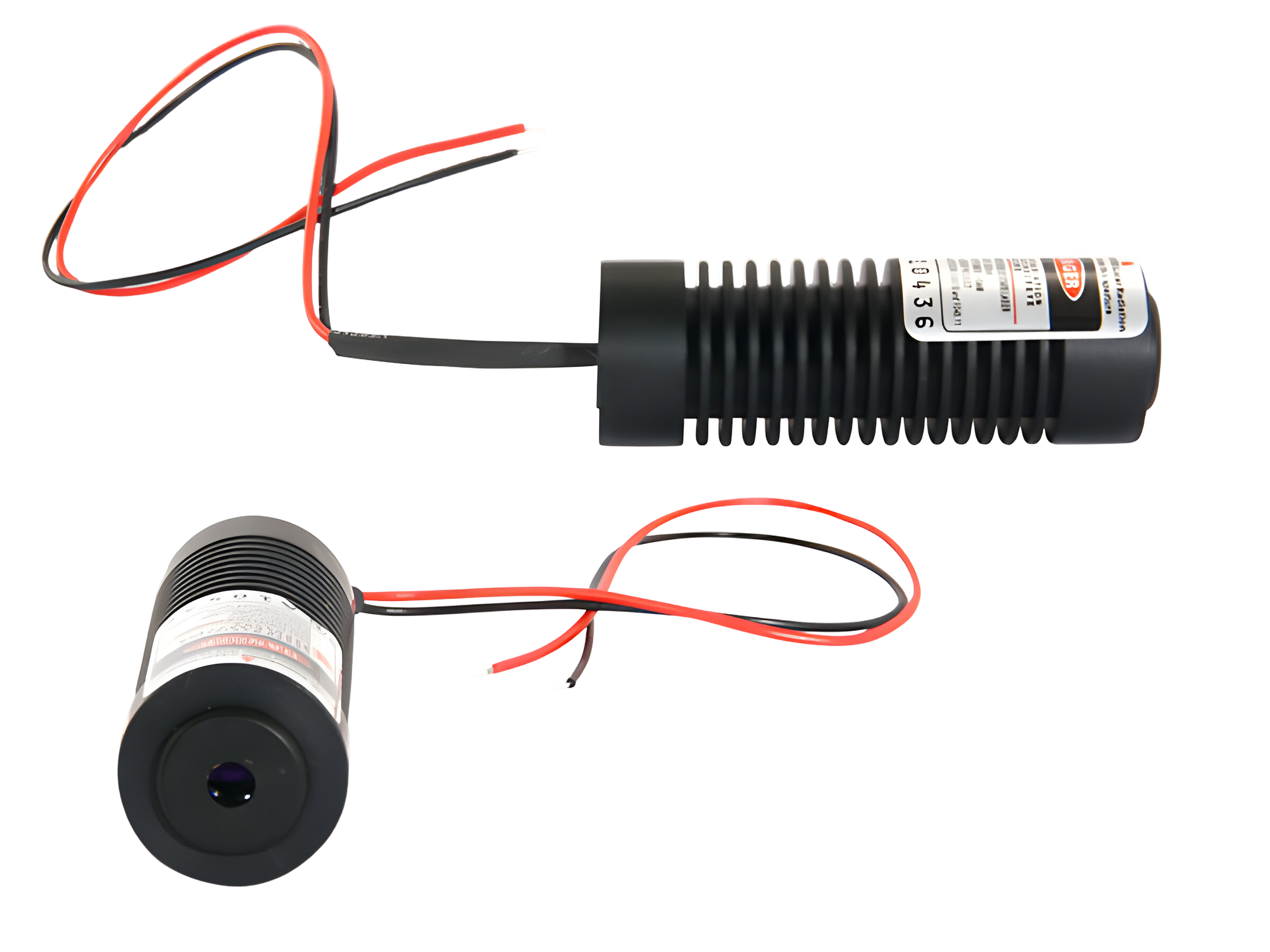

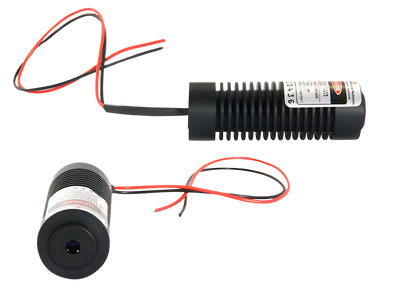

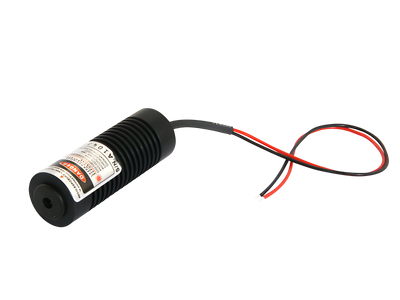

The Z-Bolt® BOLT-5 is a dot laser only, and features the new, computerized APC (automatic power control) circuit for power output stability. Requires 3 V AC or DC power supply (not included). Module casing includes built in heat sink functionality to mitigate overheating for constant on use. The BOLT-5 is factory tested and tuned to lase at a guaranteed output of 4.0 to 5.0 mW. The brightest module available for consumer, retail public use. Economically priced for lab experimentation; as a component in new product designs; for the laser professional or hobbyist.

Guaranteed Z-Bolt® Certified Power !

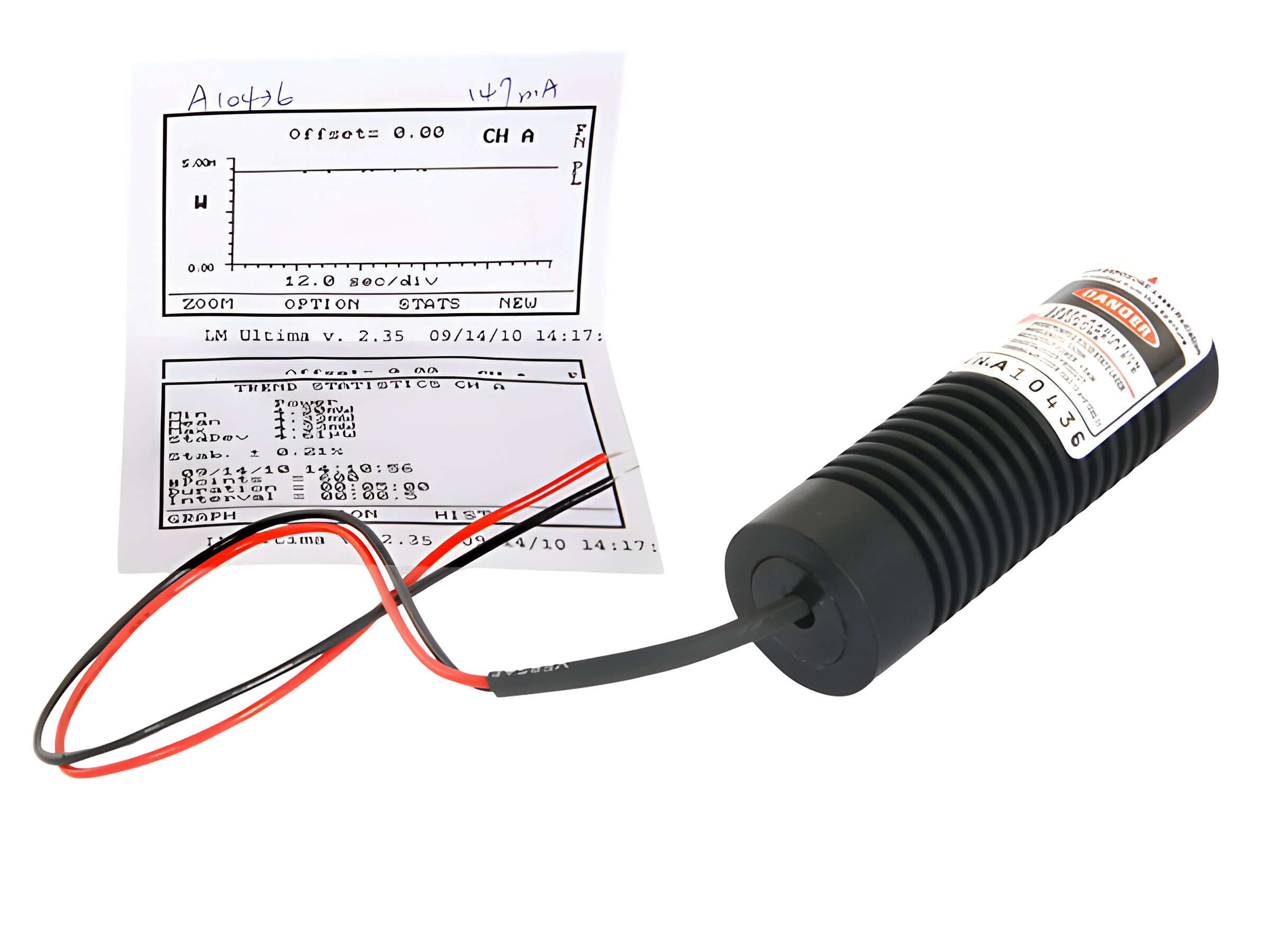

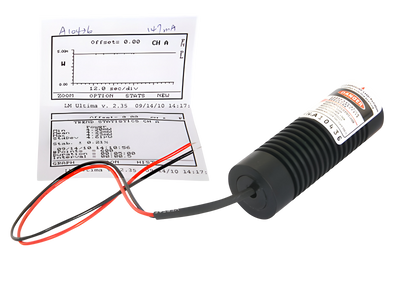

Our Z-Bolt® Certified selection of green laser modules push the power envelope and are the brightest, most visible green laser modules allowed by FDA law. Each Z-Bolt® Certified power green module is factory tuned and tested on a laser power meter. These Certified power units are rated at 4.0 to 5.0 mW power output and are 2 to 3 times brighter than stock Class IIIa units ( 1.5 ~ 4.0 mW ). The result is dazzling, green laser brilliance. Guaranteed !

Z-Bolt® BOLT-5 Technical Specifications

Wavelength (Color) - 532 nm (Green)
Output Power - Z-Bolt® Certified 4.0 ~ 5.0 mW
Output Mode - Constant Wave
Beam Diameter at Source - 1.5 mm
Diode Circuit Type - Computerized APC
Optimum Operating Temp - 15C° ~ 35C°
Operating Voltage - 3VDC
Current Draw - < 300 mA
FDA Safety Class - Class IIIa / ANSI 3R
Product Warranty - 2 Years
