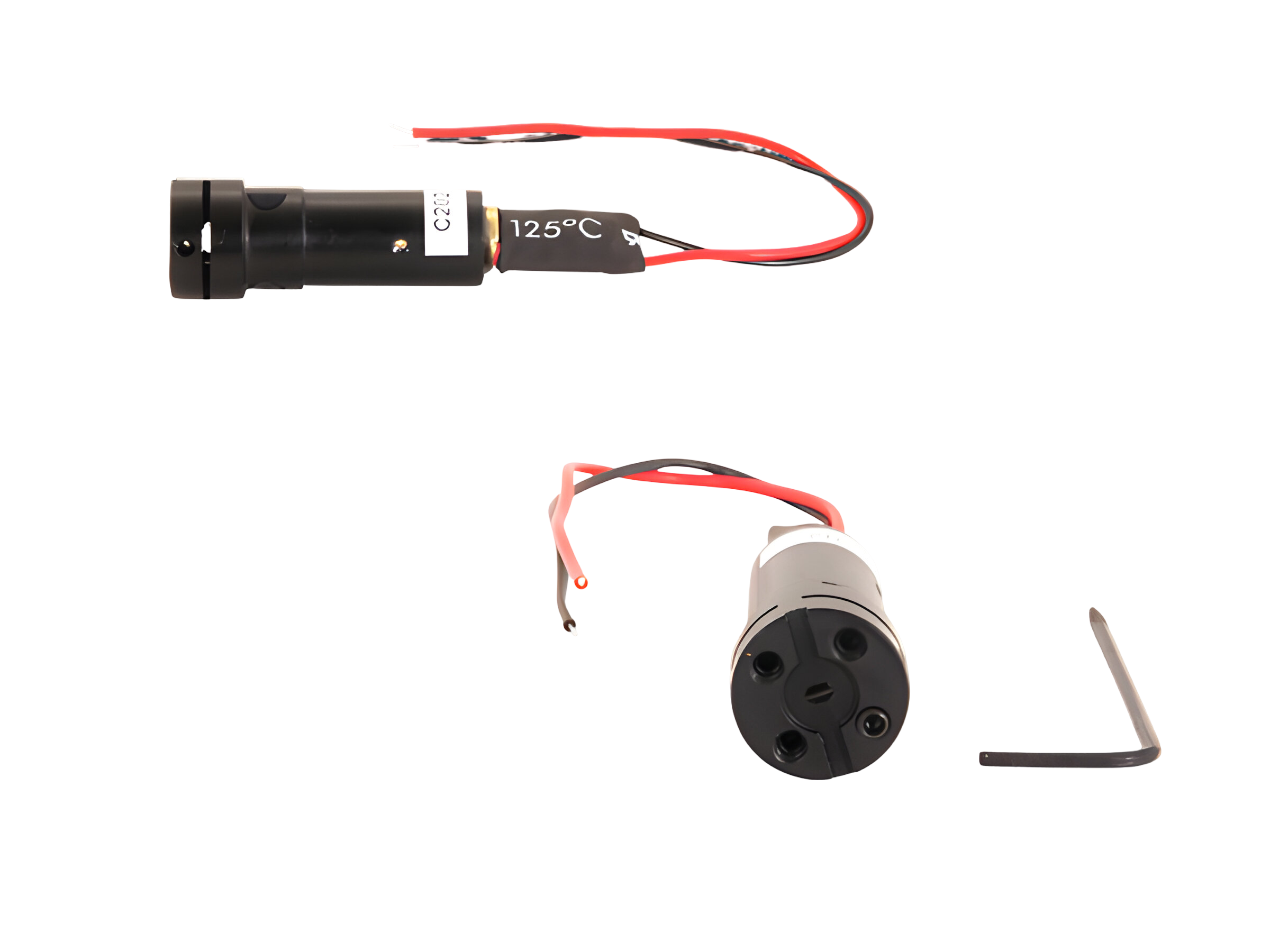

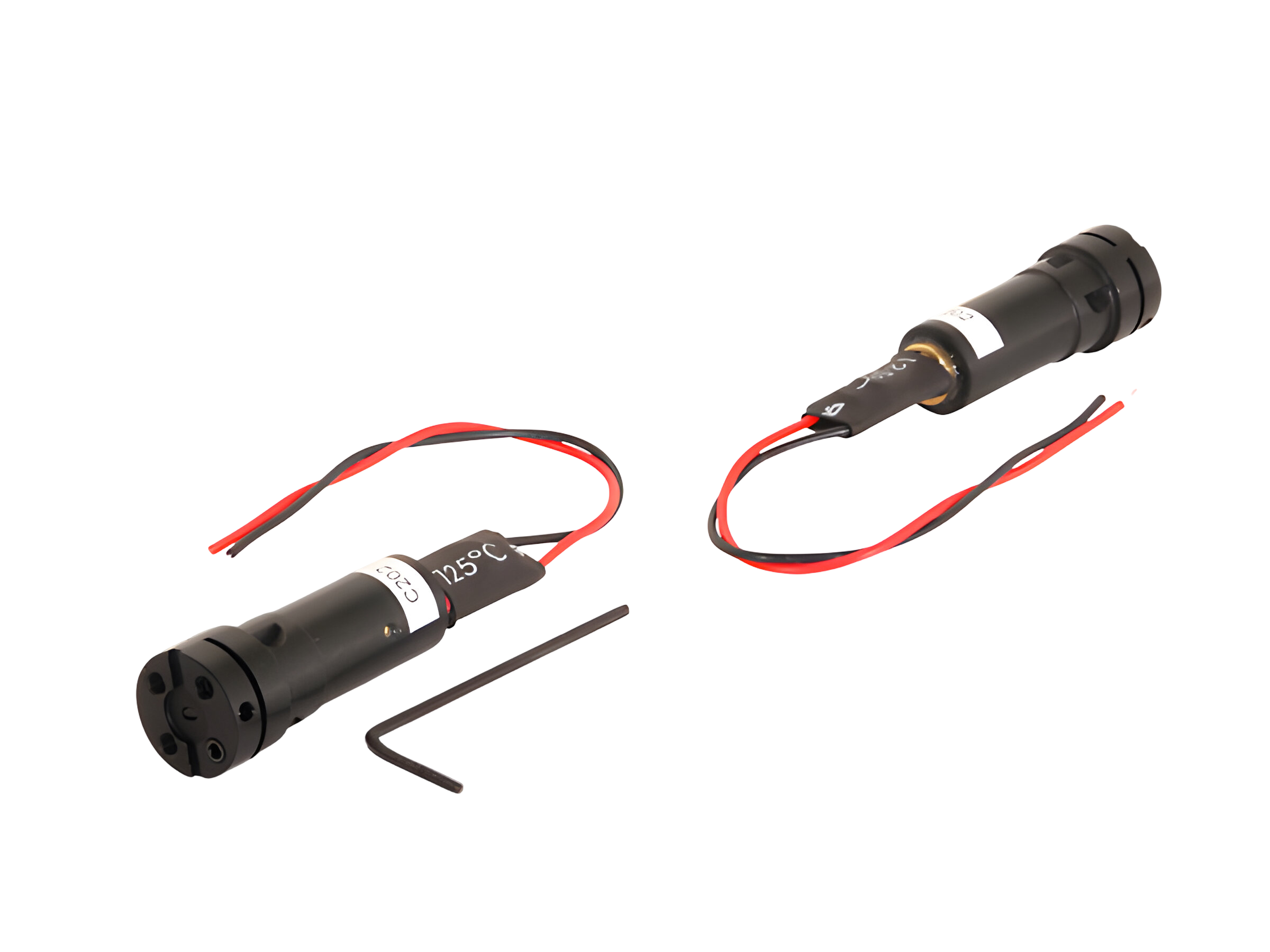

5mW Adjustable Line Laser, 12 mm

Z-BOLT® DPSS-5L-ADJ
The Z-BOLT® DPSS-5L-ADJ features the new, computerized APC (automatic power control) circuit for power output stability. Ships with hex wrench for laser line adjustment. Requires 3 V AC or DC power supply (not included). Generates a 60° fanned green laser line. 15' Line Length @ 15'. Add the HS-1a Heat Sink (see below) for constant on use to mitigate overheating. The DPSS-5L-ADJ is factory tested and tuned to lase at a guaranteed output of 4.0 to 5.0 mW.

Guaranteed Z-BOLT® Certified Power !
Our Z-BOLT® Certified selection of green laser modules push the power envelope and are the brightest, most visible green laser modules allowed by FDA law. Each Z-BOLT® Certified power green module is factory tuned and tested on a laser power meter. These "plus" power units are rated at 4.0 to 5.0 mW power output and are 2 to 3 times brighter than stock Class IIIa units ( 1.5 ~ 4.0 mW ). The result is dazzling, green laser brilliance. Guaranteed !

Z-BOLT® DPSS-5L-ADJ Technical Specifications
Wavelength (Color) - 532 nm (Green)
Output Power - Z-BOLT® Certified 4.0 ~ 5.0 mW
Output Type - 60° Fanned Green Laser Line
Line Adjustment - Hex Key (Included)
Output Mode - Constant Wave
Line Width - < 5 mm @ 5 meters
Diode Circuit Type - Computerized APC
Optimum Operating Temp - 15C° ~ 35C°
Operating Voltage - 3VDC
Current Draw - < 300 mA
FDA Safety Class - Class IIIa
Product Warranty - 2 Years
