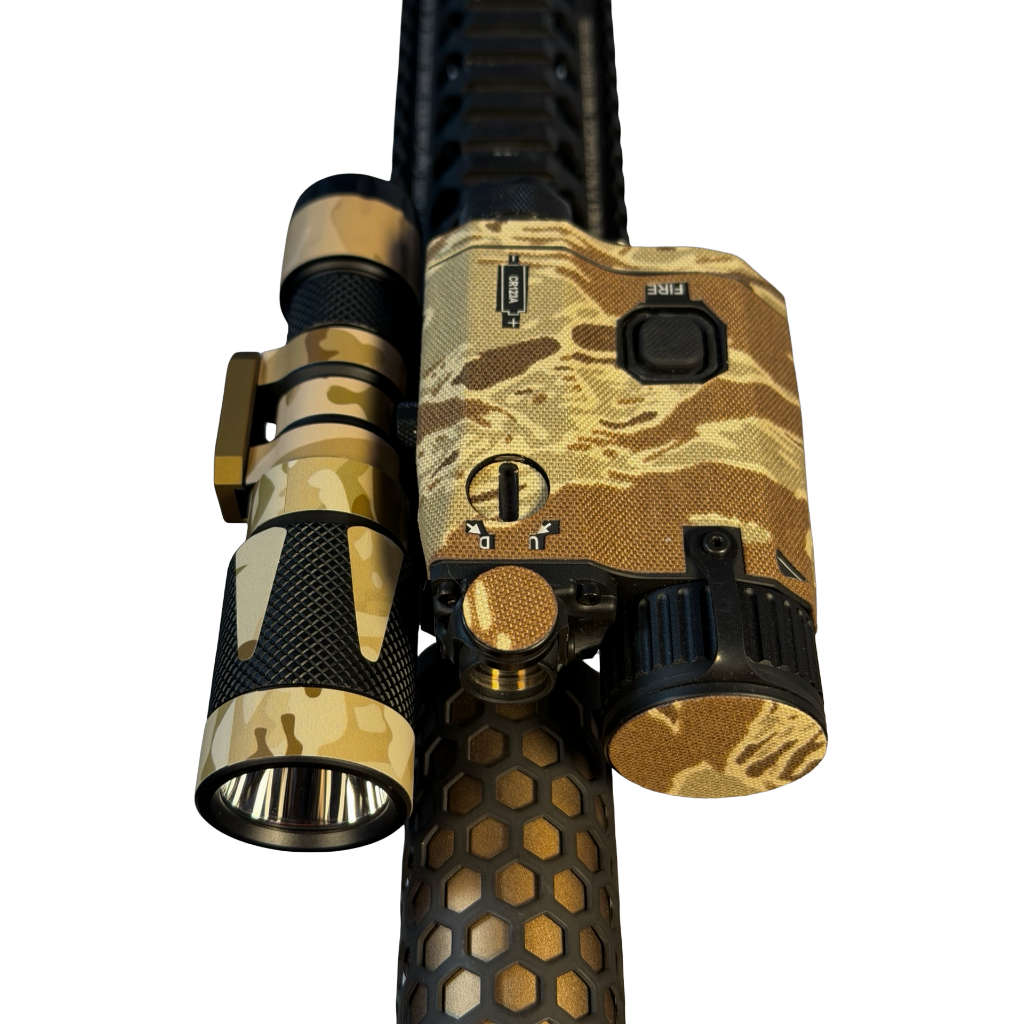

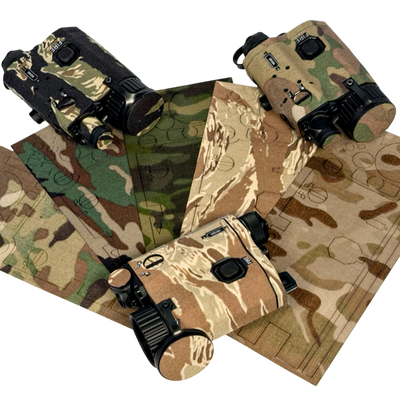

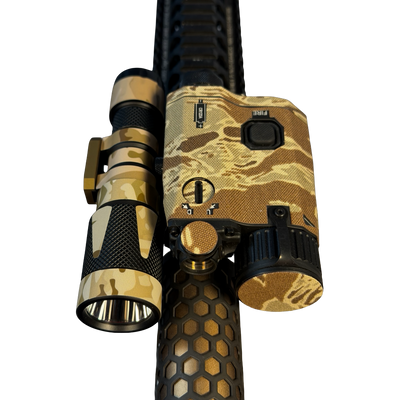

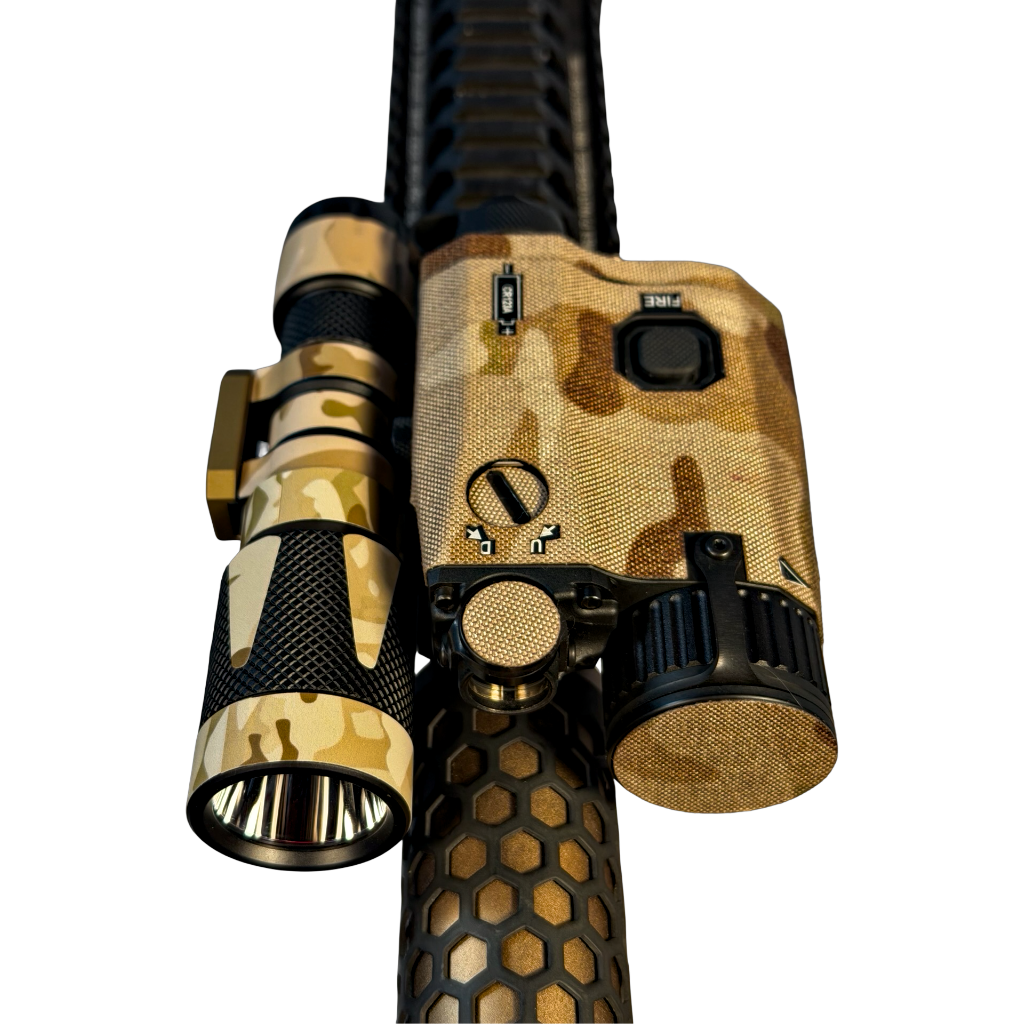

ACAL, Advanced Co-Located Lasers Free Ranger Wraps in CORDURA® Fabric (6x Styles) Best in Class 600mW LED Infrared Illuminator with advanced co-located laser and illuminator optics. Features adjustable focus from 6° to 25°, unrestricted illuminator power that exceeds Class 3R VCSEL brightness, and improved 60° bezel motion ratio for faster transitions between focus and flood modes. Includes bezel throw lever for quick adjustments in close-quarters scenarios.Dual laser single aperture design positions both systems directly over bore for low parallax and improved shooting accuracy. HI/LO settings optimize performance for visible and infrared modes. Dual Crane ports enable remote fire and visible override capability. Mounts securely with standard lug/bolt configuration or optional ADM Quick Detach lever assembly. Compact profile sits less than 1" above Picatinny rail with saddle-bagged illuminator design for unobstructed button access. Compatible with Z-BOLT® tethered diffuser, Unity AXON™ switches, and AXON™ DBAL/ACAL visible override accessories. See Features & Benefits, ITAR Statement, Specifications BELOW . . . ACAL Design Brief - Unrestriced LED vs VCSEL Illuminators ACAL Product Brief - View or Download PDF

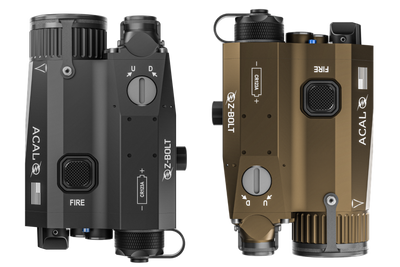

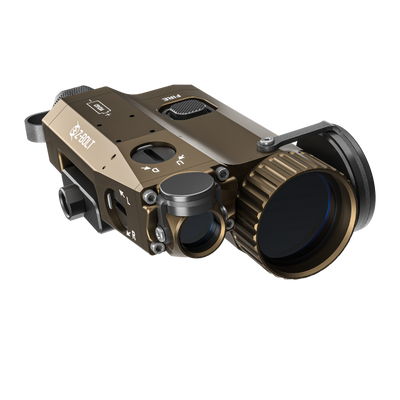

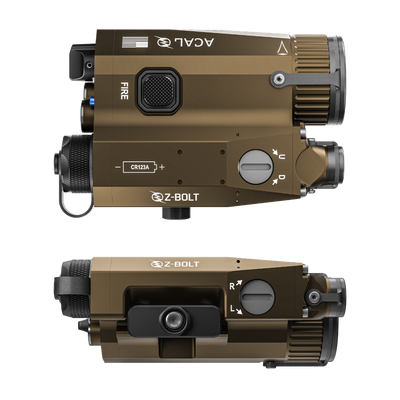

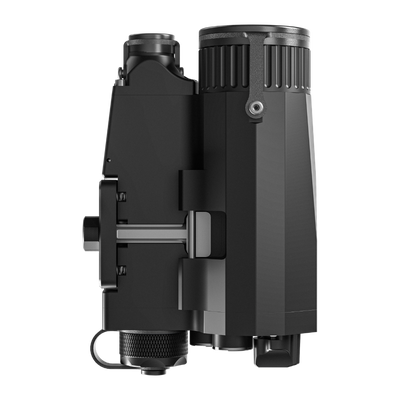

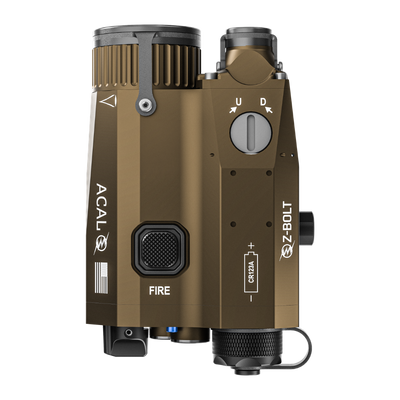

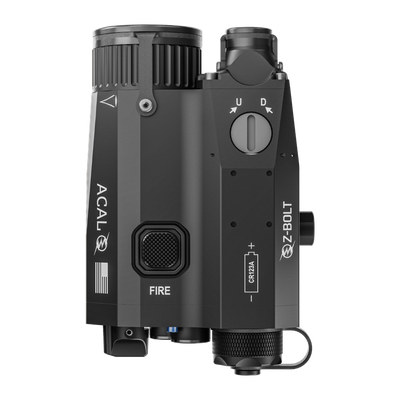

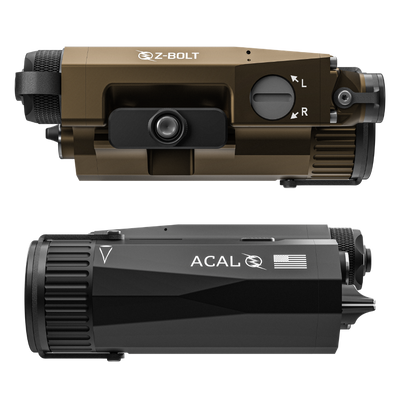

ACAL, Advanced Co-Located Lasers & LED IR Illuminator, Lug & Bolt Mount
BLACK
Sale price$1,495.00Regular price$1,695.00
Features & Benefits
LED Infrared Illuminator 600mW LED Infrared Illuminator

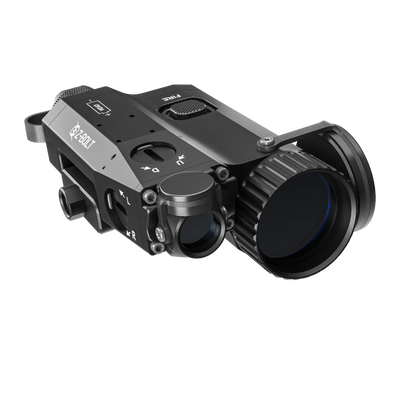

Adjustable Focus Optics 6° to 25°
Illuminator Power - UNRESTRICTED
Beats Class 3R VSCEL in Illuminator Brightness
Improved Bezel Motion Ratio
- 60° vs 360° (DBAL D2)

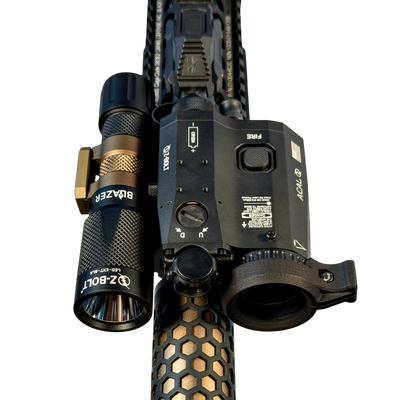

- Ships With Bezel Throw Lever
- Quick Transitions - Focus to Flood (CQB)

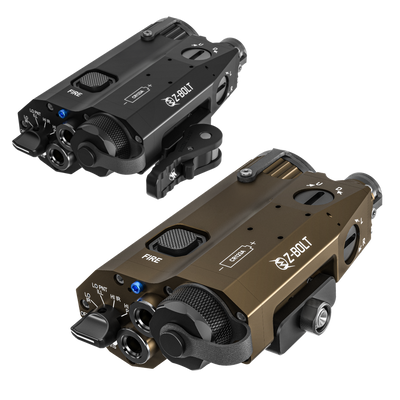

Features & Benefits Standard Lug/Bolt or ADM QD Mount

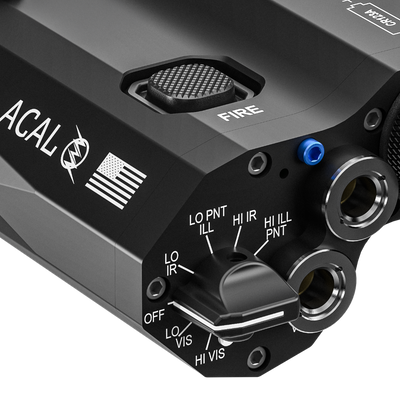

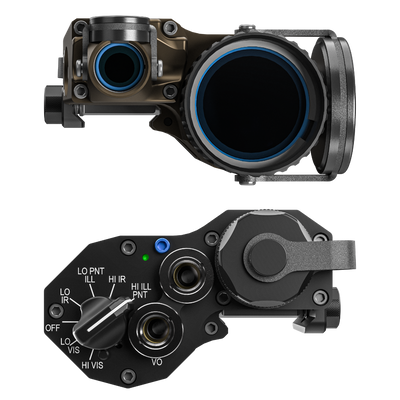

- Easy Swap to ADM QD Throw Lever Mount HI/LO Settings for VIS/IR Infrared Illuminators

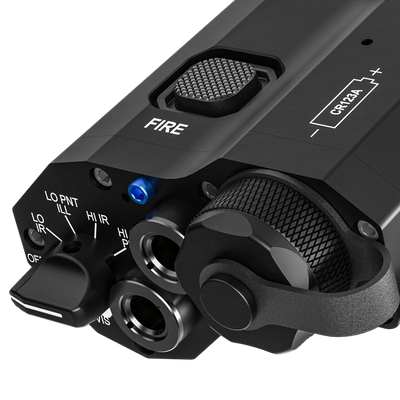

Dual Crane Ports - Remote Fire & Visible Override
VIS & IR Dot Lasers - One Aperture!
- Laser Directly Over Bore
- Low Parallax = Improved Shooting Accuracy
Excellent Optics Clearance
- Mounts < 1" Over Picatinny Rail
- Illuminator "Saddle Bagged" for Button Access
Optional Accessories
- Z-BOLT® Tethered Diffuser for CQB

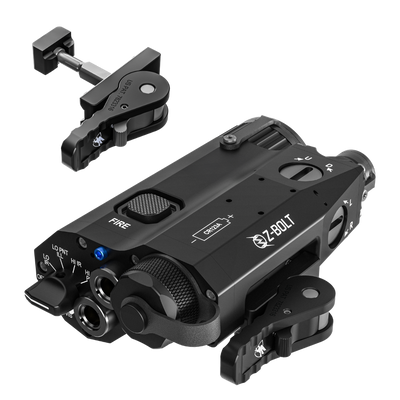

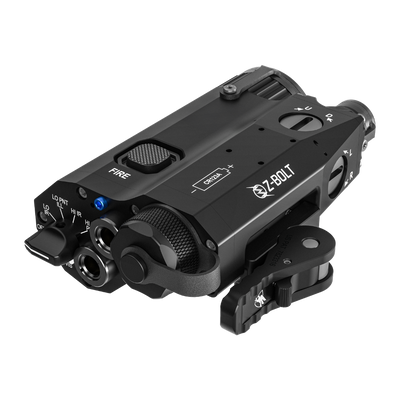

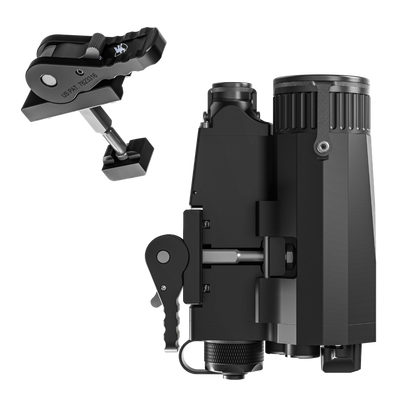

- ADM Quick Detach Lever Assembly
- Unity AXON™ SL & AXON™ Switches
- AXON™ DBAL/ACAL for VIS Override Port
Online Orders to US resident addresses ONLY.
It is illegal to export this product. See below . . .
ITAR Restrictions
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
Specifications, Technical Data
LASER & ILLUMINATOR - TYPE
- IR Laser: 0.7 mW: FDA Class 1
- Green Laser: 5mW: FDA Class 3R
- IR LED Illuminator: 600mW, UNRESTRICTED
POWER OUTPUT (HI/LO)
- IR Laser: <0.7mW / <0.35mW
- Visible Green Laser: <5mW / <1mW
- IR LED Illuminator: 600mW / 100mW
WAVELENGTH
- IR Laser: 850nm
- IR LED Illuminator: 850nm
- Visible Green Laser: 525nm
BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR LED Illuminator: 6° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad (ACAL-RV3)
RANGE & VISIBILITY
- IR Laser: 750m
- Green Laser: 750m
- IR LED Illuminator: 1000m
OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR LED Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C
BATTERY & RUNTIME
- 1 pc CR123A Lithium Metal
- 4 Hours - Tactical Use - Mode Dependent
ACAL-GL3 HOUSING:
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hard Coat Anodized
WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm
ENVIRONMENTAL
- MIL-STD-810 & IP8
- Waterproof to 5 Meters
