BUNDLE! REMOTE FIRE Package - ACAL VCSEL with Rifle Mounted Light [LE]

Vendor:Z-BOLT® Electro-Optics

BUNDLE! REMOTE FIRE Package - ACAL VCSEL with Rifle Mounted Light [LE]

$2,095.00 $2,495.00

LED Rifle Light: 18350

18350
18650

Mount Type: Meteorite - MLOK

Meteorite - MLOK
Overbore - MLOK
Meteorite - Picatinny
Overbore - Picatinny

Product variants

ACAL-GV3-3B-BLK-18350-RFP-MTR-MLOK

REMOTE FIRE Package
ACAL, Advanced Co-Located Aiming Laser
Best in Class 150mW VCSEL Infrared Illuminator with advanced co-located laser and illuminator optics. Features adjustable focus from 4° to 25°, and improved 60° bezel motion ratio for faster transitions between focus and flood modes. Includes bezel throw lever for quick adjustments in close-quarters scenarios. Dual laser single aperture design positions both systems directly over bore for low parallax and improved shooting accuracy. HI/LO settings optimize performance for visible and infrared modes. Dual Crane ports enable remote fire and visible override capability. Mounts securely with standard lug/bolt configuration or optional ADM Quick Detach lever assembly. Compact profile sits less than 1" above Picatinny rail with saddle-bagged illuminator design for unobstructed button access.

See BELOW for Package Parts List & Box Contents - Sales Restrictions - Features & Benefits - ITAR Statement - Technical Data & Specifications
ACAL MFAL - User's Manual
ACAL MFAL 3B [LE] Data Sheet
ACAL MFAL 3B [LE] Product Brief

Pairs well with

Request Agency Quotes, Schedule Device T & E

Please contact us for pricing & availability, for dealers & distributors, or to schedule a demo ACAL to shoot and evaluate. (T & E) Full power Class 3B lasers & IR illuminators are restricted to Law Enforcement and Government sales only and cannot be sold to civilians. Generally, purchase of IR Laser equipment can only occur at the Department, Agency, or Unit level. Purchases made with department funds via department credit card or agency PO recommended. IR Lasers CAN be sold to individual Law Enforcement, Military, Government, or Contractor personnel. If you are a government employee and would like to purchase an IR laser, you must provide your credentials and your department or agency shipping address. All orders with department or individual funds can only be shipped direct to the department, agency, or command. These lasers are regulated by the FDA (Food & Drug Administration). Price inquires must include an email request from an official government or government contractor email address. All ITAR restrictions apply. See ITAR Statement* below . . . .

Features & Benefits

Box Contents . . .

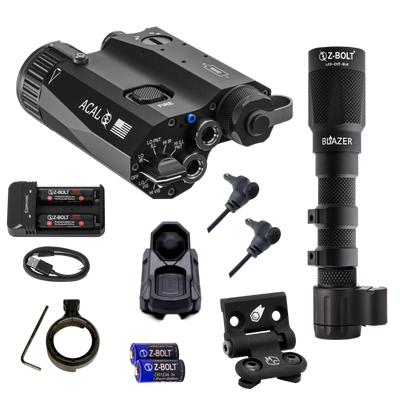

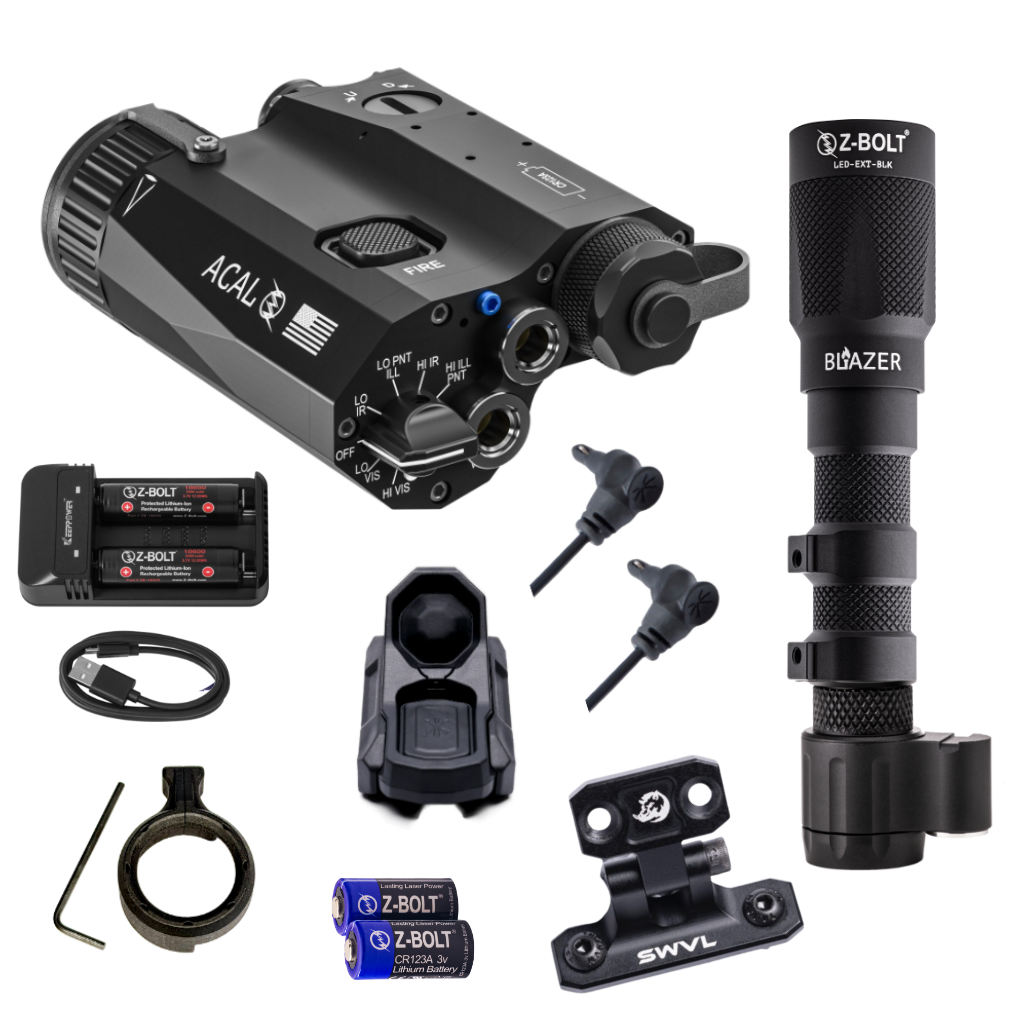

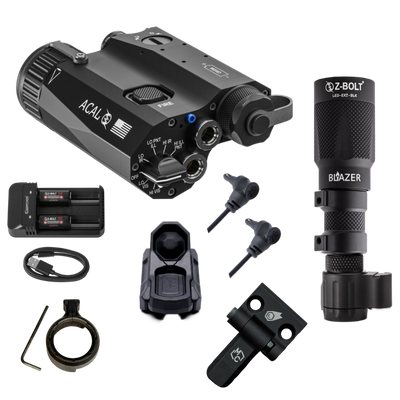

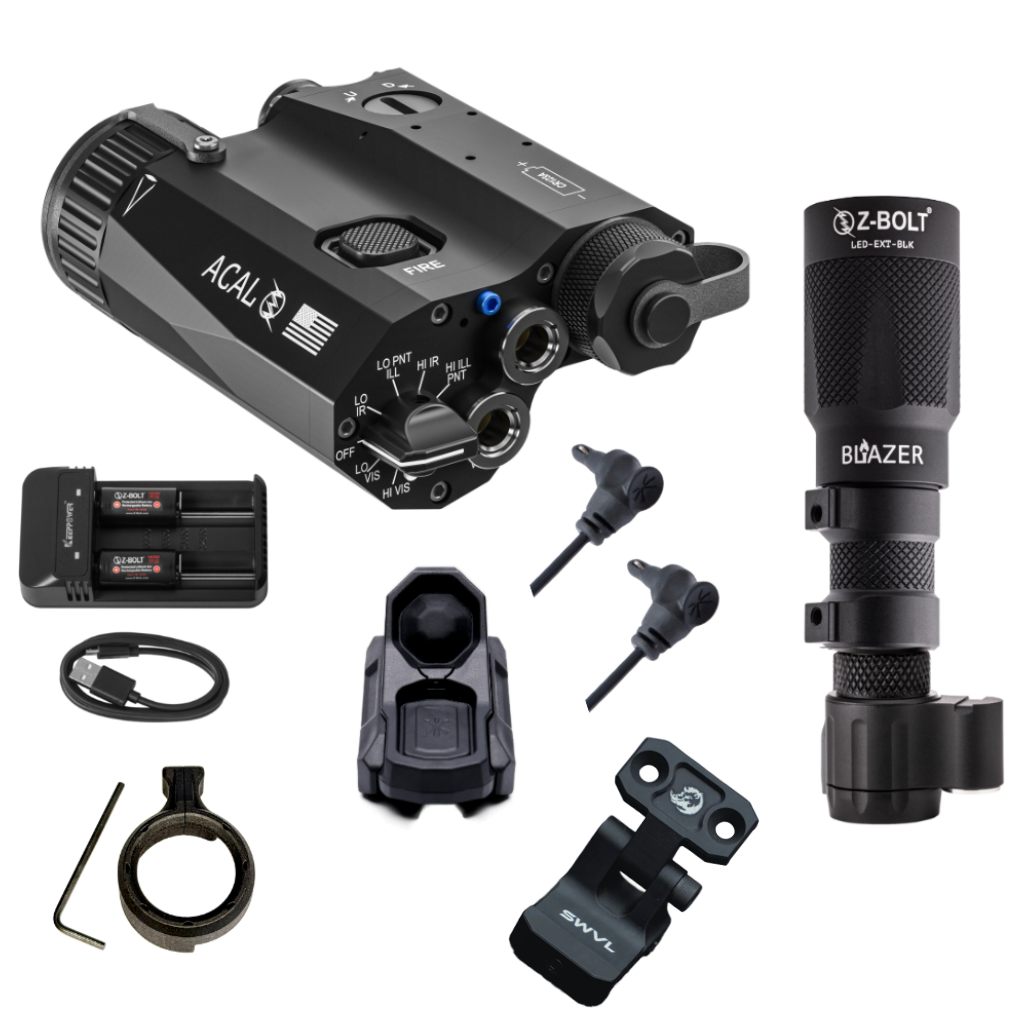

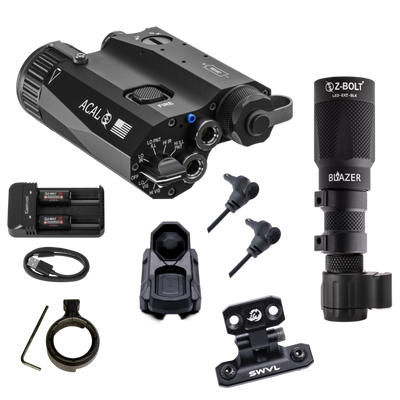

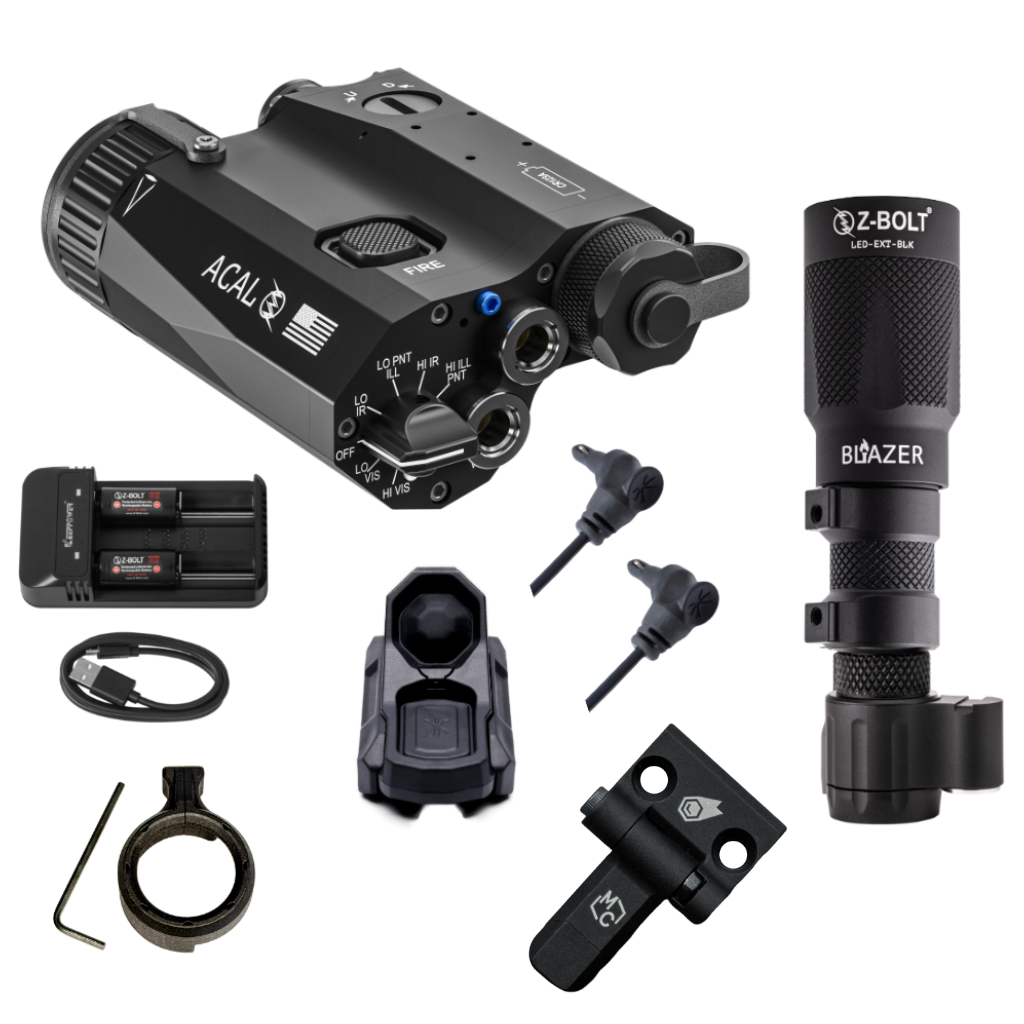

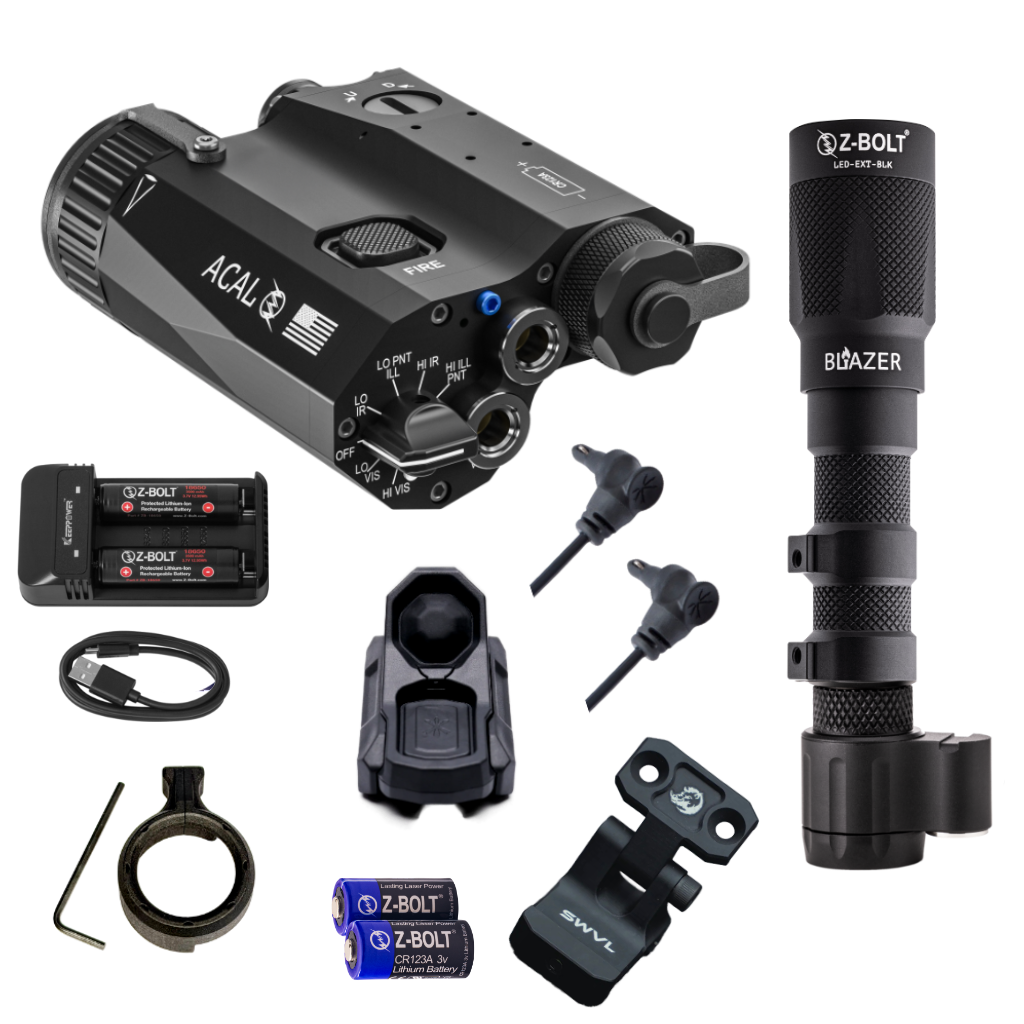

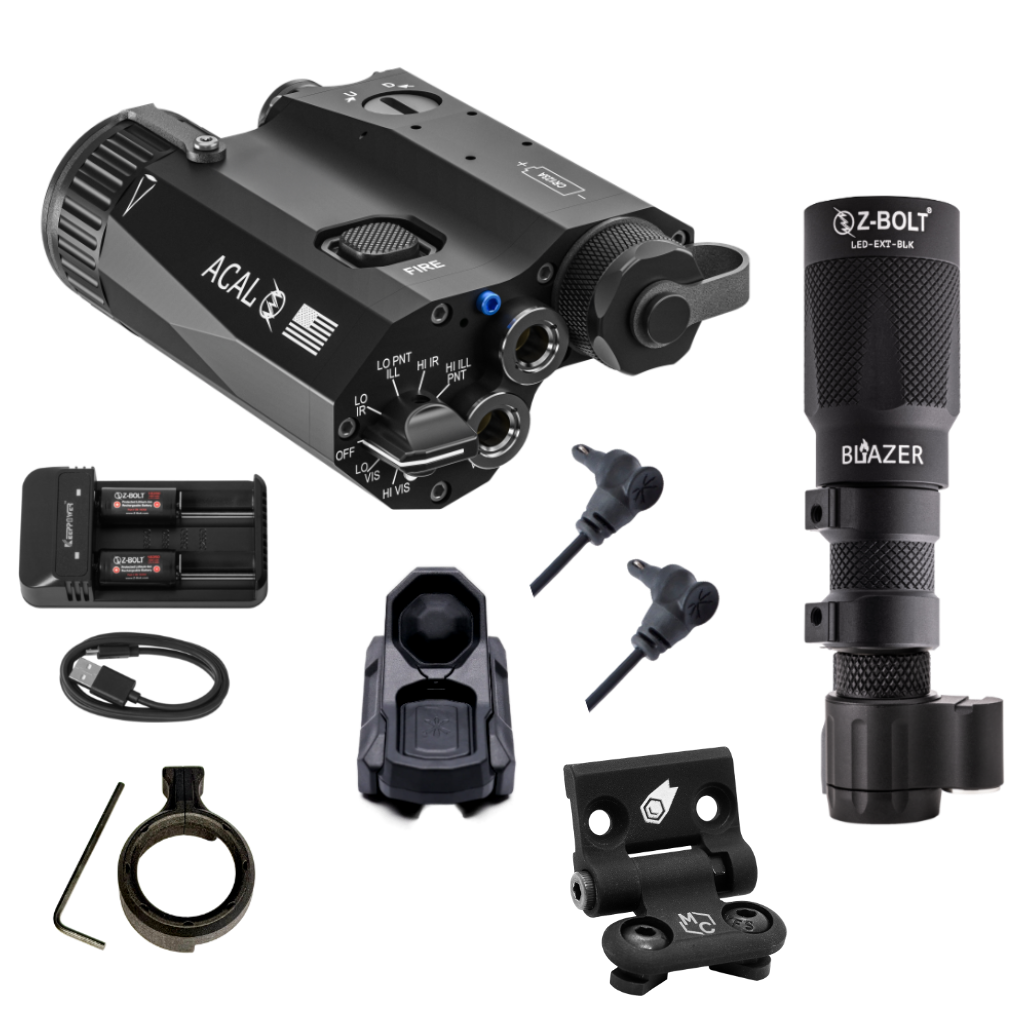

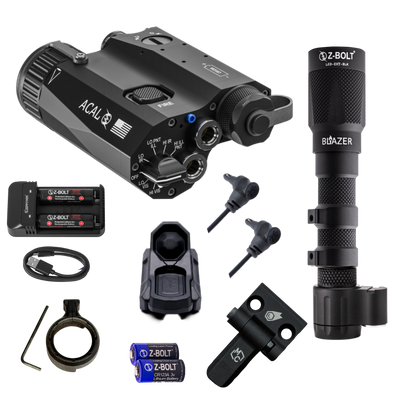

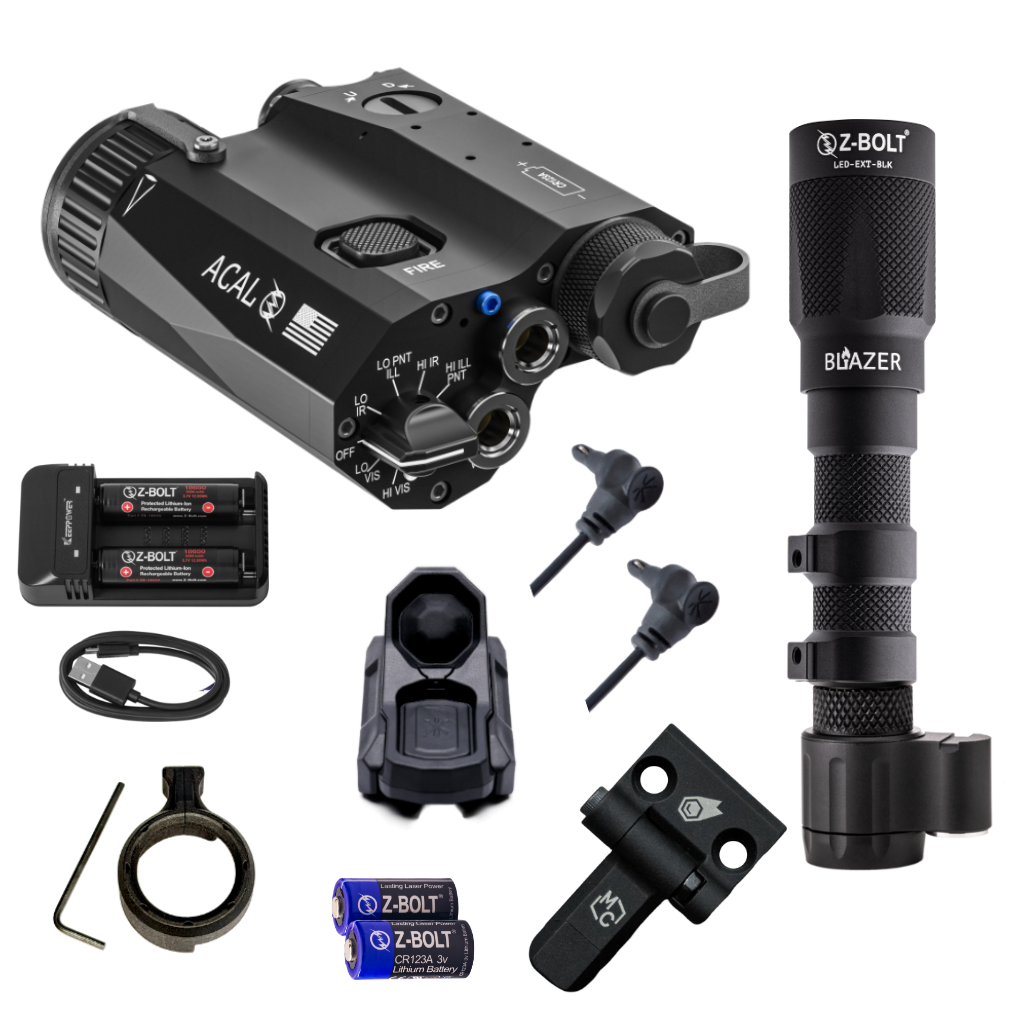

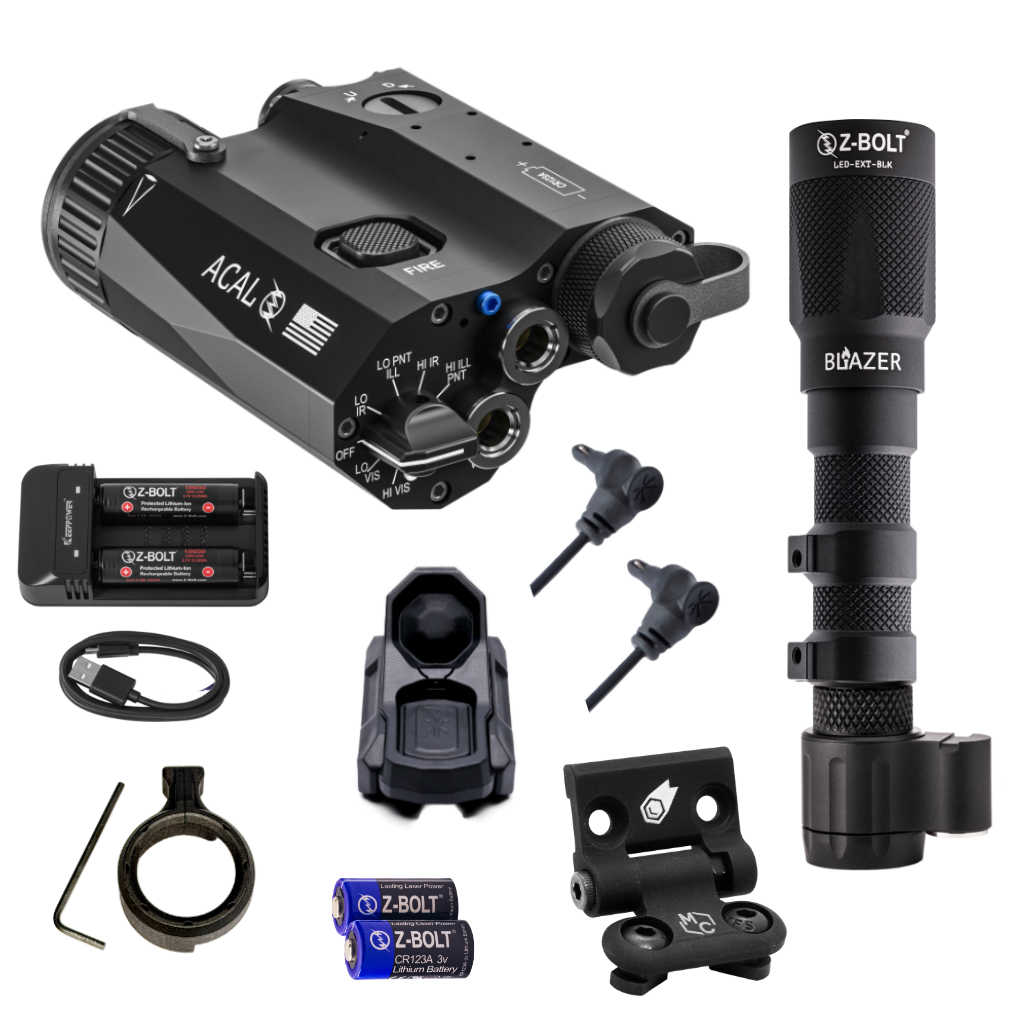

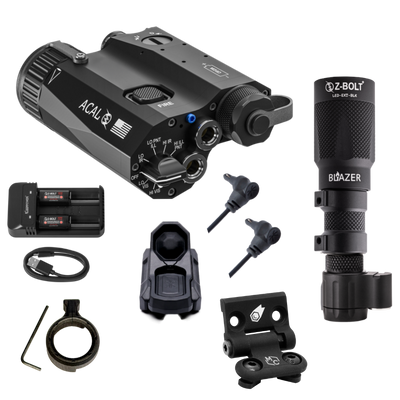

Parts in REMOTE FIRE Bundle:
1 pc ACAL VCSEL 150mW IR Illuminator
1 pc 18350 or 18650 LED Weapon Light
1 pc Z-BOLT® Dual Function Cable Port Tailcap
1 pc Overbore SWVL Adjustable Mount - MLOK or Picatinny OR
1 pc Meteorite Adjustable Hinge Mount - MLOK or Picatinny
1 pc AXON Dual Lead (Crane) Cable Switch
- 1x Lead for Remote Fire Port
- 1x Lead for Dual Function Tailcap Port
2 pc 18350 or 18650 Batts & Charger + 2 pc CR123A "Dual Fuel

FEATURES & BENEFITS . . .

Class 3B Infrared Illuminator
- Adjustable Focus Optics 4° to 25°
- 150mW VCSEL Infrared Illuminator
With Improved Bezel Motion Ratio
- 60° vs 360° (DBAL D2)
- Ships With Bezel Throw Lever
- Quick Transitions - Focus to Flood (CQB)

Mounting, Settings, Design, Ports
Standard Lug/Bolt or ADM QD Mount
- Easy Swap to ADM QD Throw Lever Mount
HI/LO Settings for VIS/IR Infrared Illuminators
Dual Crane Ports - Remote Fire & Visible Override
VIS & IR Dot Lasers - One Aperture!
- Laser Directly Over Bore
- Low Parallax = Improved Shooting Accuracy
Excellent Optics Clearance
- Mounts < 1" Over Picatinny Rail
- Illuminator "Saddle Bagged" for Button Access

Optional Accessories
- Ranger Wraps - CORDURA®Fabric
- ADM Quick Detach Lever Assembly

ACAL MFAL - User's Manual
ACAL MFAL 3B [LE] Data Sheet
ACAL MFAL 3B [LE] Product Brief

Sales Restrictions - ITAR

Online Orders to US resident addresses ONLY.
It is illegal to export this product. See below . . .

ITAR Restrictions
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.

Specifications, Technical Data

LASER & ILLUMINATOR - TYPE
- IR Laser: 0.7 mW: FDA Class 1
- Green Laser: 5mW: FDA Class 3R
- IR LED Illuminator: 600mW, UNRESTRICTED

POWER OUTPUT (HI/LO)
- IR Laser: <0.7mW / <0.35mW
- Visible Green Laser: <5mW / <1mW
- IR LED Illuminator: 600mW / 100mW

WAVELENGTH
- IR Laser: 850nm
- IR LED Illuminator: 850nm
- Visible Green Laser: 525nm

BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR LED Illuminator: 6° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad (ACAL-RV3)

RANGE & VISIBILITY
- IR Laser: 750m
- Green Laser: 750m
- IR LED Illuminator: 1000m

OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR LED Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C

BATTERY & RUNTIME
- 1 pc CR123A Lithium Metal
- 4 Hours - Tactical Use - Mode Dependent

ACAL-GL3 HOUSING:
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hard Coat Anodized

WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm

ENVIRONMENTAL
- MIL-STD-810 & IP8
- Waterproof to 5 Meters

ACAL MFAL - User's Manual
ACAL Data Sheet - Laser 3R, IR LED
ACAL Brief - Product Benefits & Design Features

90%

(304)

(24)

(5)

(3)

(1)

Color is advertised as SF tan but doesn't match SF tan at all. Otherwise the product is good quality and works well.

These Tailcaps from Z-Bolt are the best i have bought so far, you can rotate the part where the Plugs go in all the way around the Tailcap so you always find the right position, no matter where you Position your Lightswitch !!!

This is really good work there, i will switch all my rifles to this, even my Duty ones where i have already the permission from my Unit Command to do so.
Furthermore is this the 3rd order from Z-Bolt in 3 Months now and i will order shortly again, i like theit products, because they are not only Quality, their price is also good....

Not a fan. Can't find a flashlight with mlok style mount to work with this. I've got 3 flashlights that this plug does not work on. I also bought the zbolt button too and is also useless. Much happier with my amazon purchase for half the price.

Easy to setup and use with a host of setup and accessory options available. Bought the package with the Blazer 18650. They make a great pair for the full 4x functionality (Vis, IR, IR Illum., Vis Illum.). I have learned I really like and now prefer the ACAL's laser-over-bore positioning which I haven't seen from other companies.

Comes in civilian legal and LE/MIL models.

For LE: price makes this a realistic option for individual officer purchase at a fraction of the cost of the other duty lasers available. Also, the light/laser package comes with a VIS Override configuration which most LE agencies prefer or require.

Definitely recommend.

Amazing light! I have been using it for the past couple weeks at work and it's been incredible.
