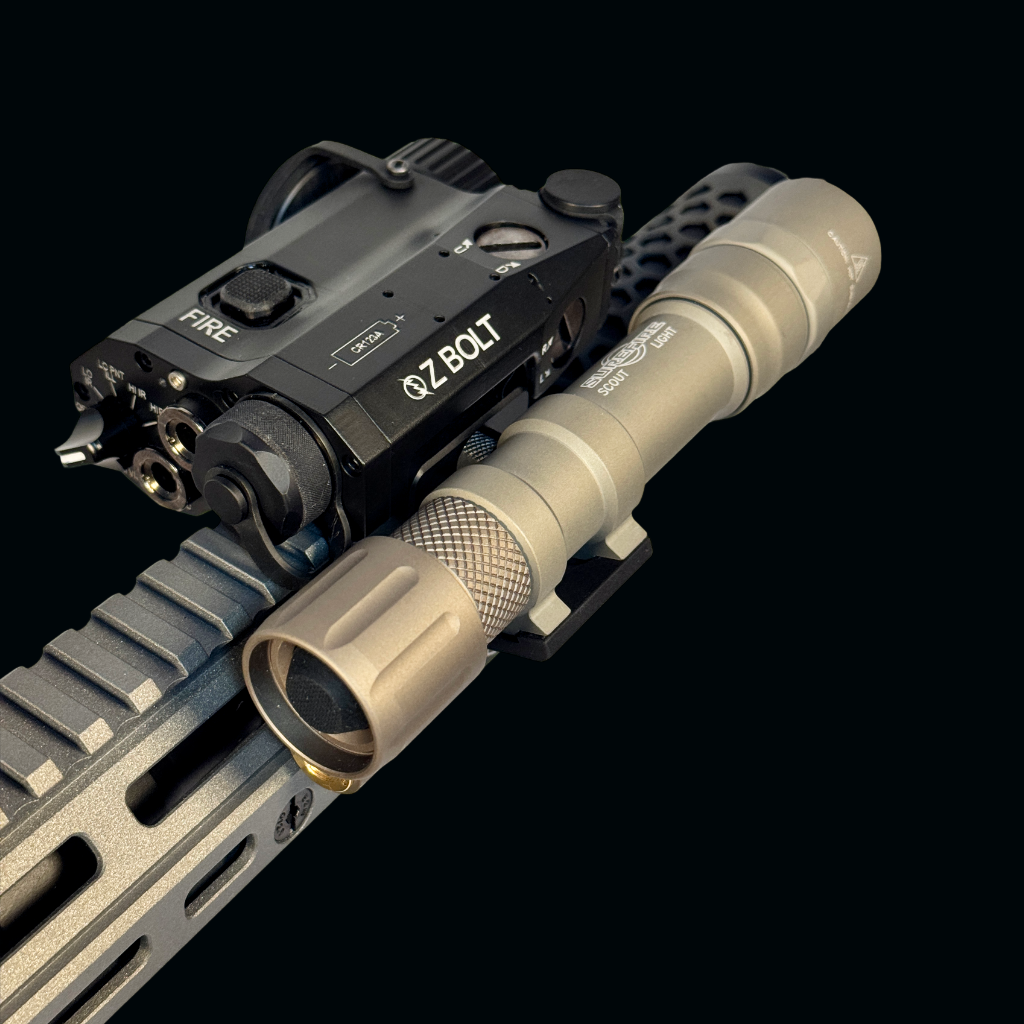

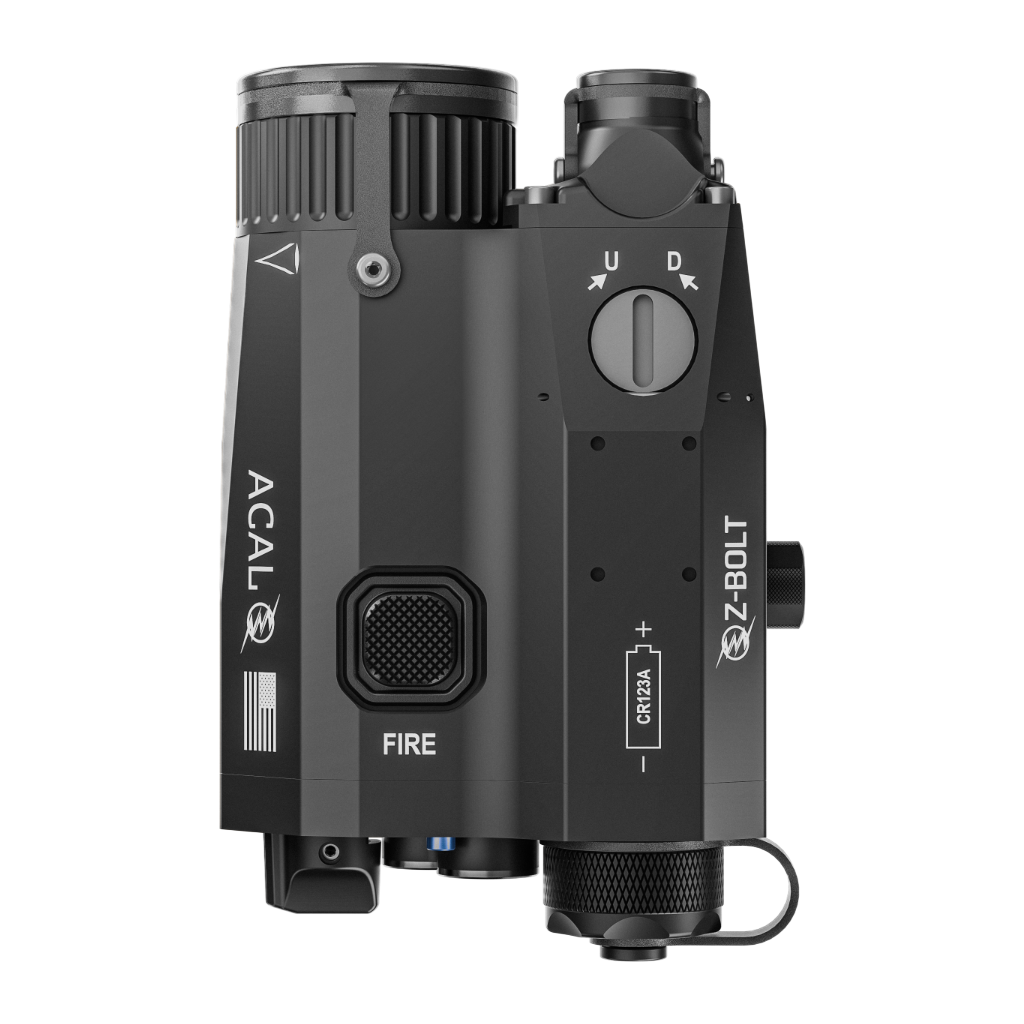

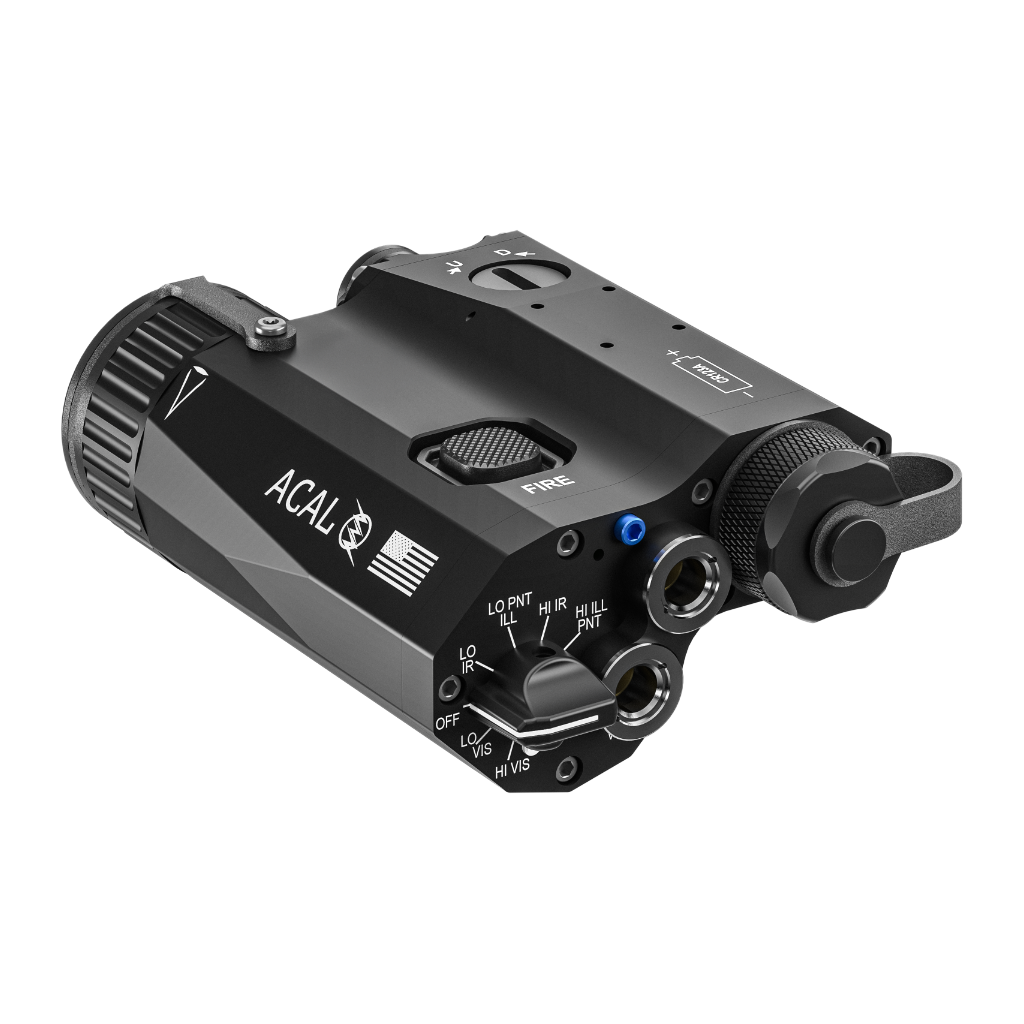

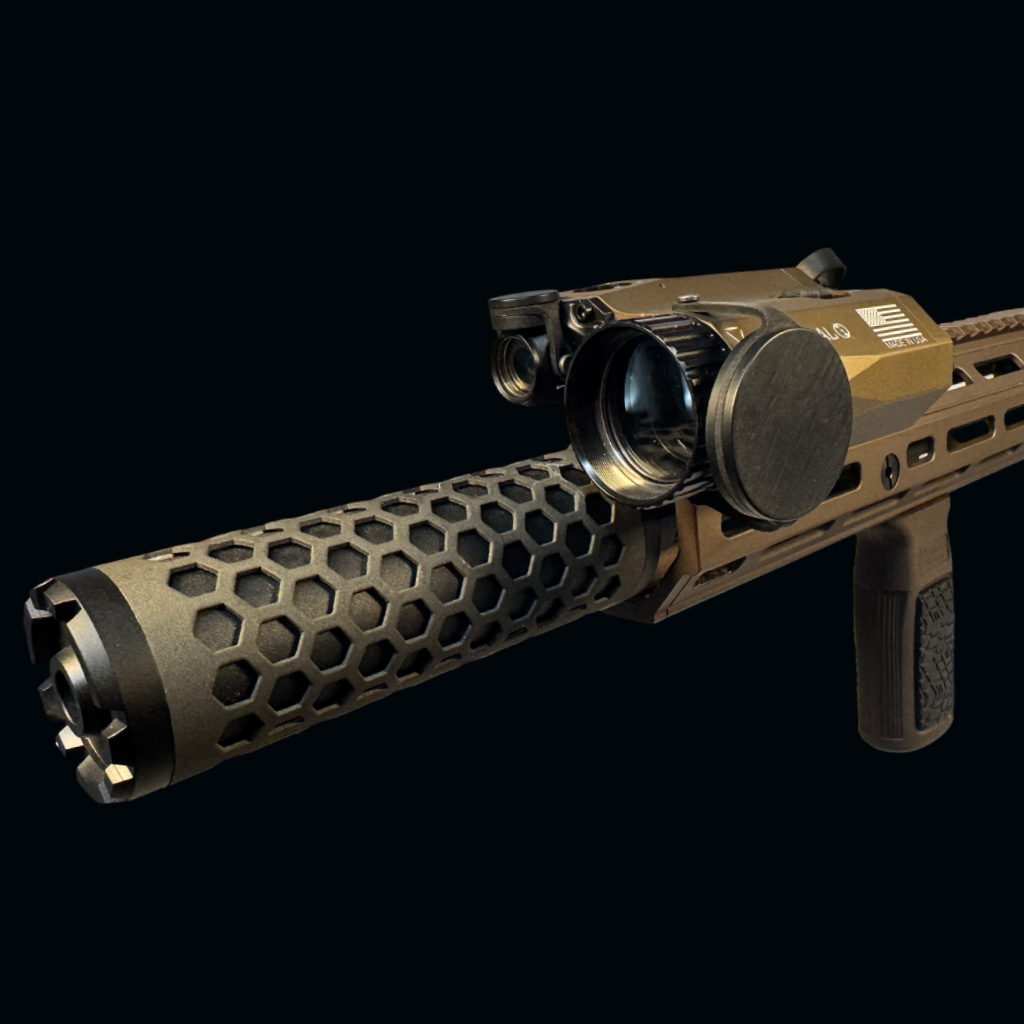

Z-Bolt® ACAL MFAL - VCSEL VCSEL Power Scaling [Pat. Pending] 150~400mW VCSEL IR Illuminator, Class 3B Co-Located Lasers: 50mW Green, 50mW IR See ITAR Statement* (Product Details) ACAL-FEATURES-SPECS-2025.pdf

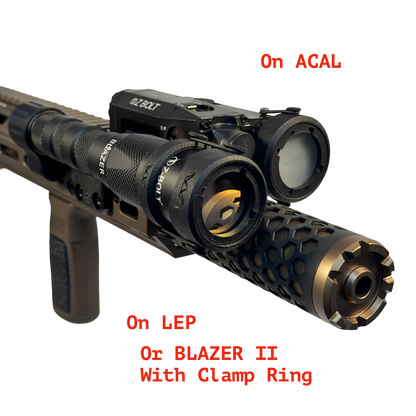

Pairs well with
Need help?
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
Information
Share contact information, store details, and brand content with your customers.
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Standard Clamp Nut or QD Mount Assembly
ACAL- CHOOSE Mounting Options
Request Quote
Class 3B IR Lasers are restricted to Law Enforcement and Government sales only and cannot be sold to civilians. Purchase of IR Laser equipment can only occur at the Department, Agency, or Unit level. IR Lasers cannot be sold to individual Law Enforcement, Military, Government, or Contractor personnel. No exceptions. If you are a government employee and would like to purchase an IR laser, you must have your agency place the order for you. These lasers are regulated by the FDA (Food & Drug Administration). Price inquires must include an email request from an official government or government contractor email address. All ITAR restrictions apply. See ITAR Statement* (Product Details)
Product Details*
Z-BOLT® Exclusive!
VCSEL Infrared Illuminator
Auto Power Scaling [Pat. Pending]
Introducing Z-BOLT® Auto Power Scaling™ technology! FDA laser regulations require manufacturers to “throttle” the power output of VCSEL laser chips, so as to meet the particular Class 3R (civilian legal, <1.95mW) or Class 3B (<500mW) FDA laser safety classifications. Laser power meter results for Class 3R illuminators must not exceed 1.95mW when the device is tested (fixed angle - directed at a 7mm sensor @ 10cm). Z-BOLT® Auto Power Scaling™ technology offers the highest possible LEGAL output power for a given beam angle setting - the telescopic adjustment bezel providing the end user with beam angle dependent power control. Where previous 3R VCSEL illuminators fall short (increased angle beam settings where the IR light fails in wide area illumination), the BLAZER II & ACAL units maintain the maximum permissible power based on the product's FDA classification. Available in both Class 3R (95mW) Class 3B (150mW~400mW) VCSEL configurations.
FEATURES

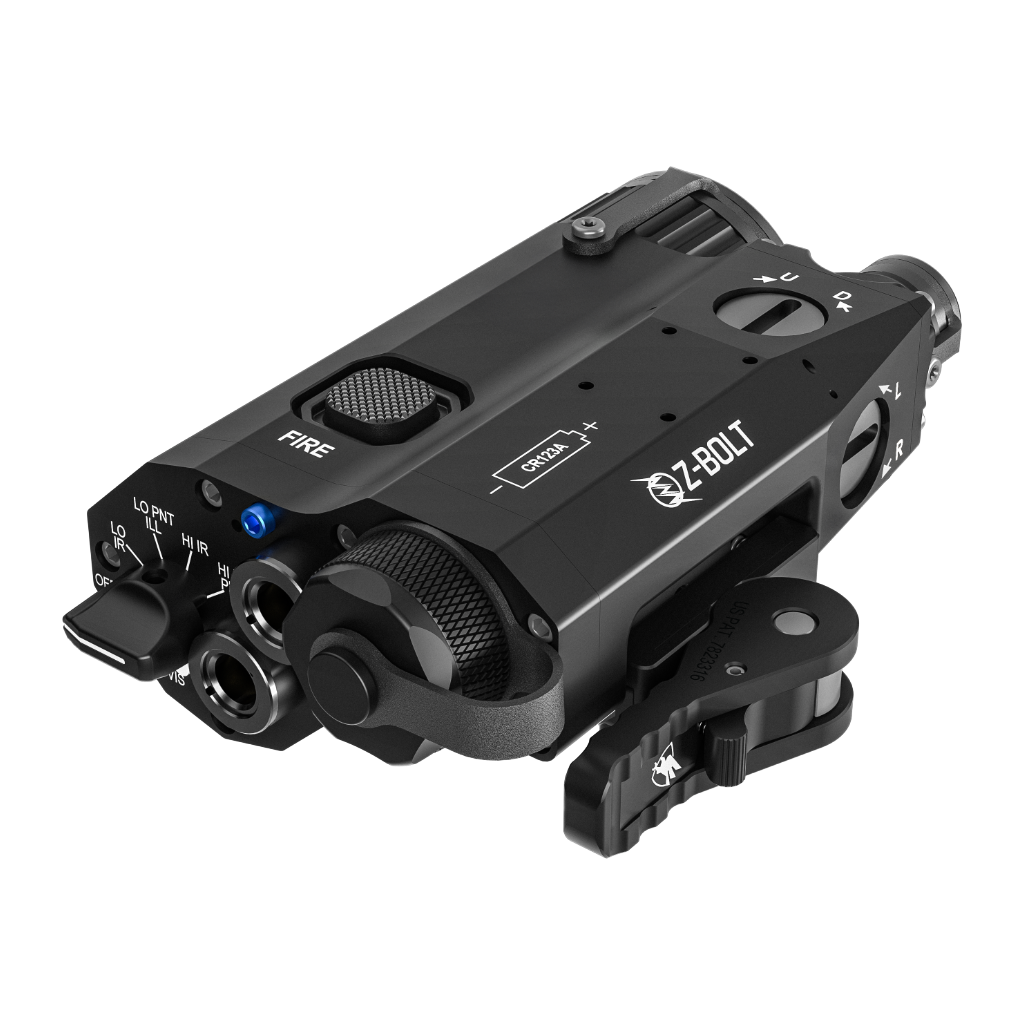

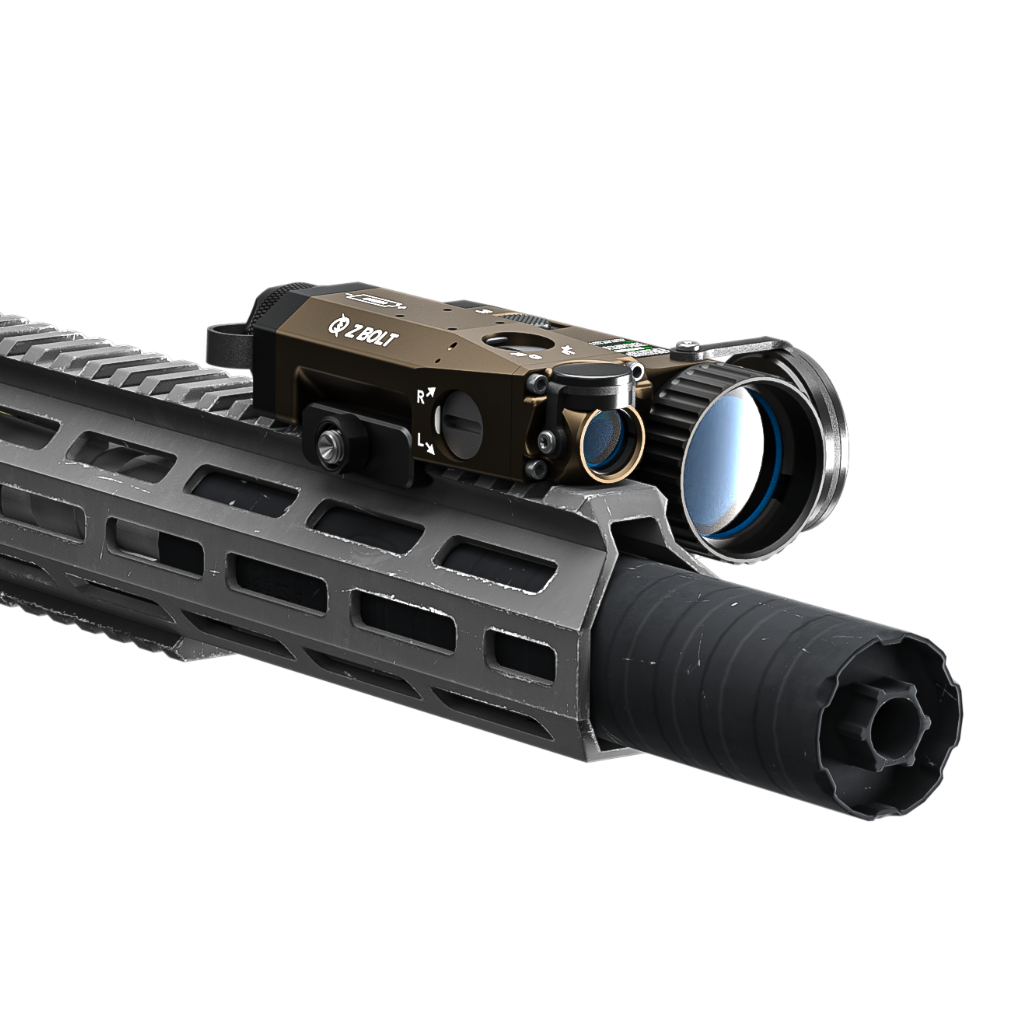

- Standard Lug/Bolt or ADM QD Mount
- Co-Located Green (Visible) & IR Laser
- FDA Safety Class 3B IR; Class 3B Green Laser
- Full Power 150~400mW VCSEL 3B IR Illuminator
- Low Parallax = Improved Shooting Accuracy
- Two Beams - One Aperture! Directly Over Bore
- Variable Zoom 4° to 25° VCSEL 3B IR Illuminator

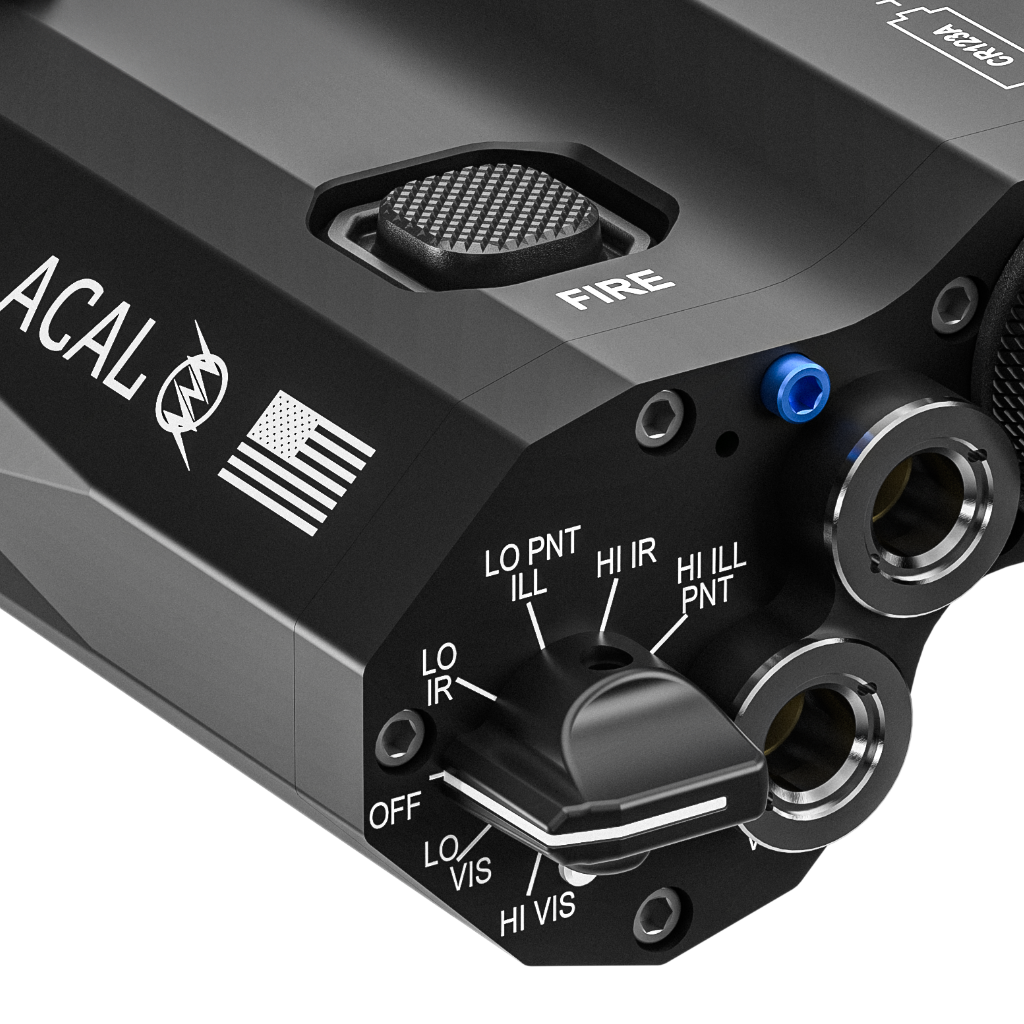

- HI-LO Settings for Lasers & IR VCSEL Illuminator
- LEAF BUIS (Flip-Up)
- VWS Illuminator Throw Lever

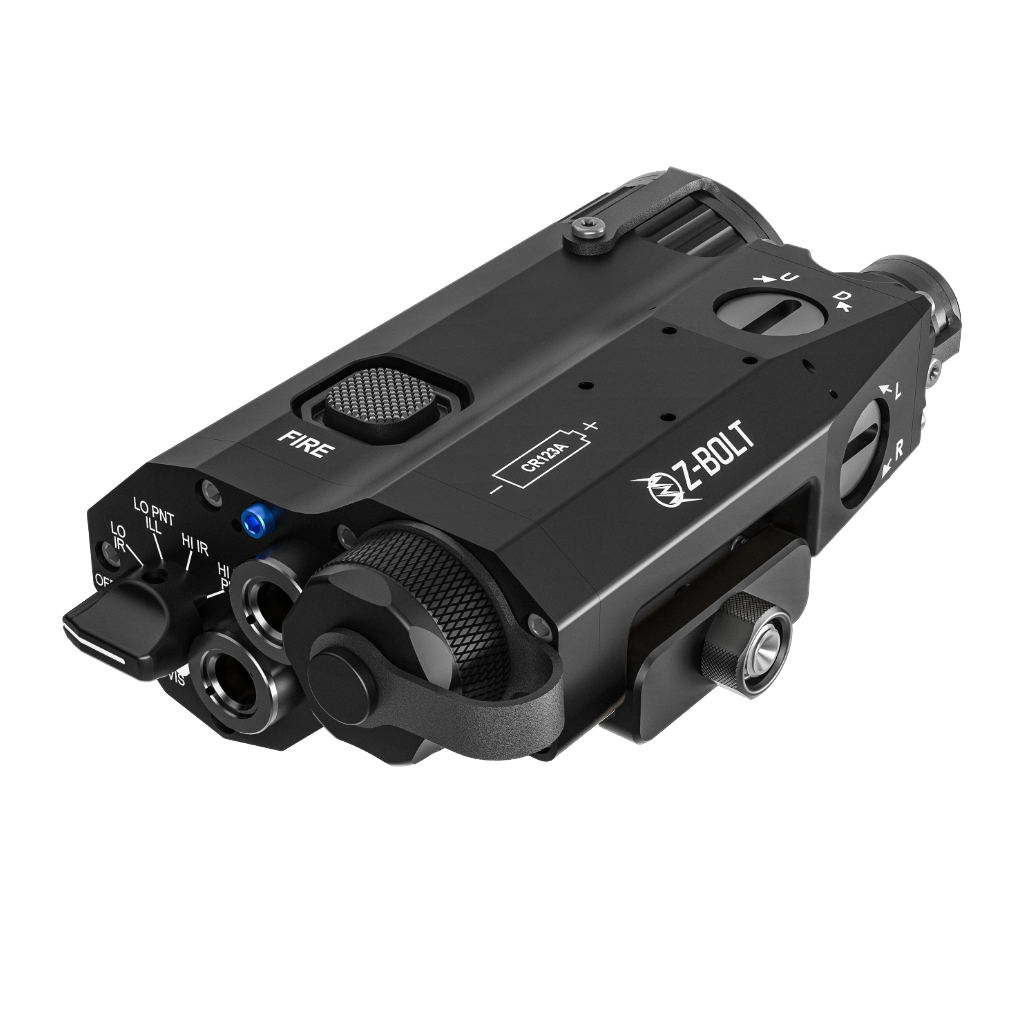

- ADM Quick Detach Lever Assembly
- Unity AXON™ SL & AXON™ Switches
- AXON™ DBAL/ACAL for VIS Override Port
- Villain Weapons -Tethered Beam Diffusers
ITAR Restrictions*
Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulations, Parts 120-130.
Specifications
LASER & ILLUMINATOR - TYPE
- IR Laser: 50mW: FDA Class 3B
- Green Laser: 50mW: FDA Class 3B
- IR VCSEL Illuminator: 400mW Class 3B
POWER OUTPUT (HI/LO)
- IR Laser: 50mW / 0.7mW
- Visible Green Laser: 50mW / 1mW
- IR VCSEL Illuminator: 400mW / 15mW
WAVELENGTH
- IR Laser: 850nm
- Visible Green Laser: 525nm
- IR VCSEL Illuminator: 850nm
BEAM DIVERGENCE
- IR Laser: <0.5mRad
- IR VCSEL Illuminator: 4° to 25°
- Visible Green Laser: <0.8mRad
- Visible Red Laser: <0.8mRad (ACAL-RV3)
RANGE & VISIBILITY
- IR Laser: 2500m
- IR VCSEL Illuminator: 2500m
- Visible Green Laser: 2500m
OPERATING TEMPERATURE
- IR Laser: -40°/C to +65°C
- IR VCSEL Illuminator: -40°/C to +65°C
- Visible GREEN Laser: -40°/C to +65°C
BATTERY & RUNTIME
- 1 pc CR123A Lithium
- 4 Hours - Tactical Use - Mode Dependent
ACAL-GL3 HOUSING:
- Aircraft Grade Aluminum 6061-T6
- MIL-SPEC Type III Hardcoat Anodized
WEIGHT - DIMENSIONS
- 10.5oz. / 297 Grams
- L 3.97 in x W 2.64 in x H 1.73 in
- L 10 cm x W 6.69 cm x 4.39 cm
ENVIRONMENTAL
- MIL-STD-810 & IP8
- Waterproof to 5 Meters
